C

cjason331

Member

• Jun 9, 2023

• #1

Hi everybody , I've just bought a land-rover freelander , when driving I noticed it was overheating , opened the vents and managed to get home .
Found out the coolant had vanished .
Found today it leaks coolant but I can't see where from .
It leaks more when driving or revving

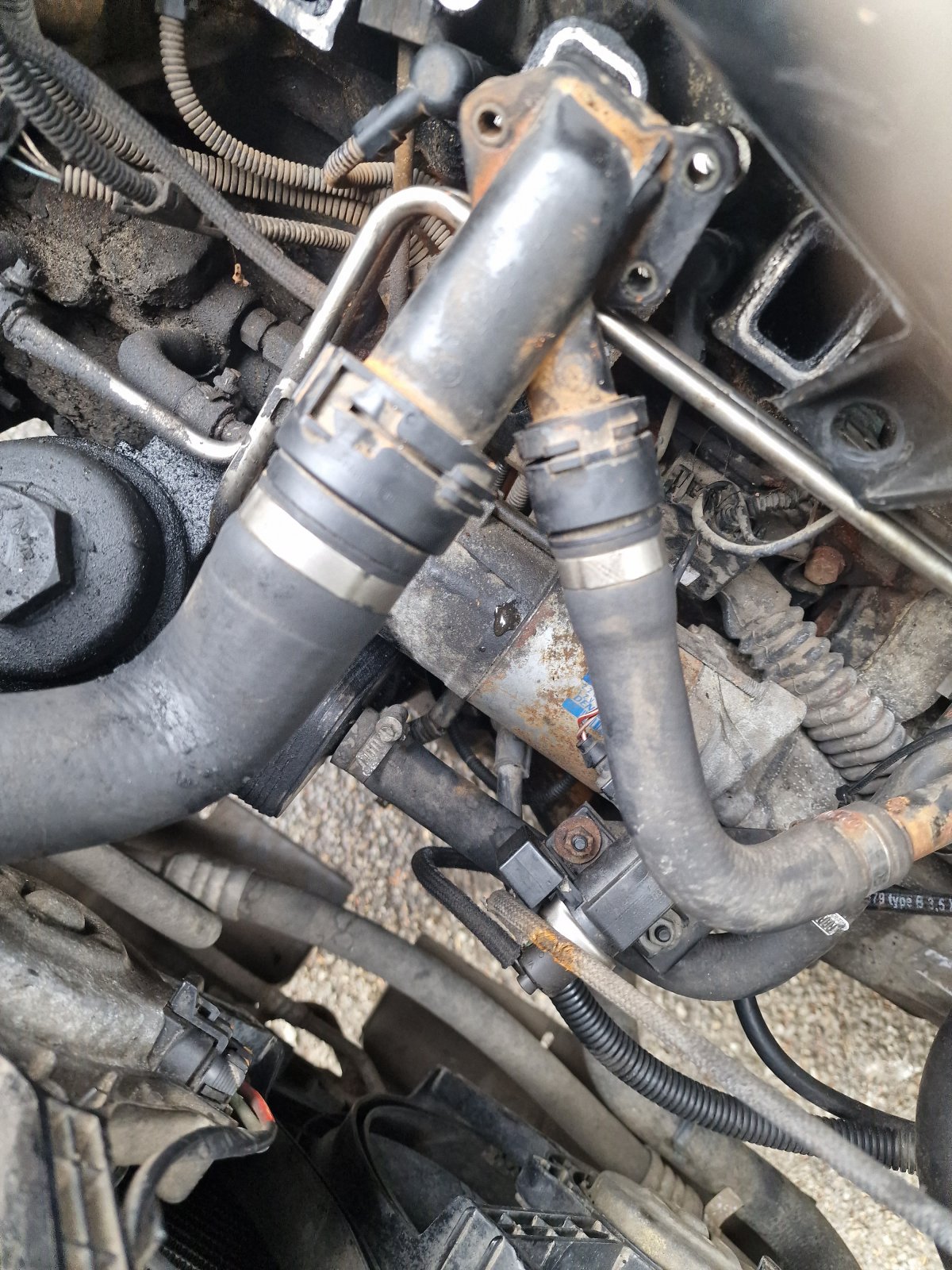

I can see its trickling from.image above but not sure where exactly . Any help would be much appreciated



Nodge68

Well-Known Member

• Jun 9, 2023

• #2

What year, what engine?
Unfortunately I can't tell anything for that picture.



C

cjason331

Member

• Jun 9, 2023

• #3

It's a 2004 freelander with a bmw td4 engine 2L



Nodge68

Well-Known Member

• Jun 9, 2023

• #4

Can you post a picture that shows something useful?
The most common leak point is the top hose outlet from the head, which is made of nasty cheap BMW spec plastic.



C

cjason331

Member

• Jun 9, 2023

• #5

I can try and get another picture tomorrow , it looks like it's coming from the top but I can't see because the manifold is in the way , I'm wondering if it's coming from the coolant flange , is that the pipe you're referring to ?



Nodge68

Well-Known Member

• Jun 10, 2023

• #6

cjason331 said:

I can try and get another picture tomorrow , it looks like it's coming from the top but I can't see because the manifold is in the way , I'm wondering if it's coming from the coolant flange , is that the pipe you're referring to ?

Click to expand...

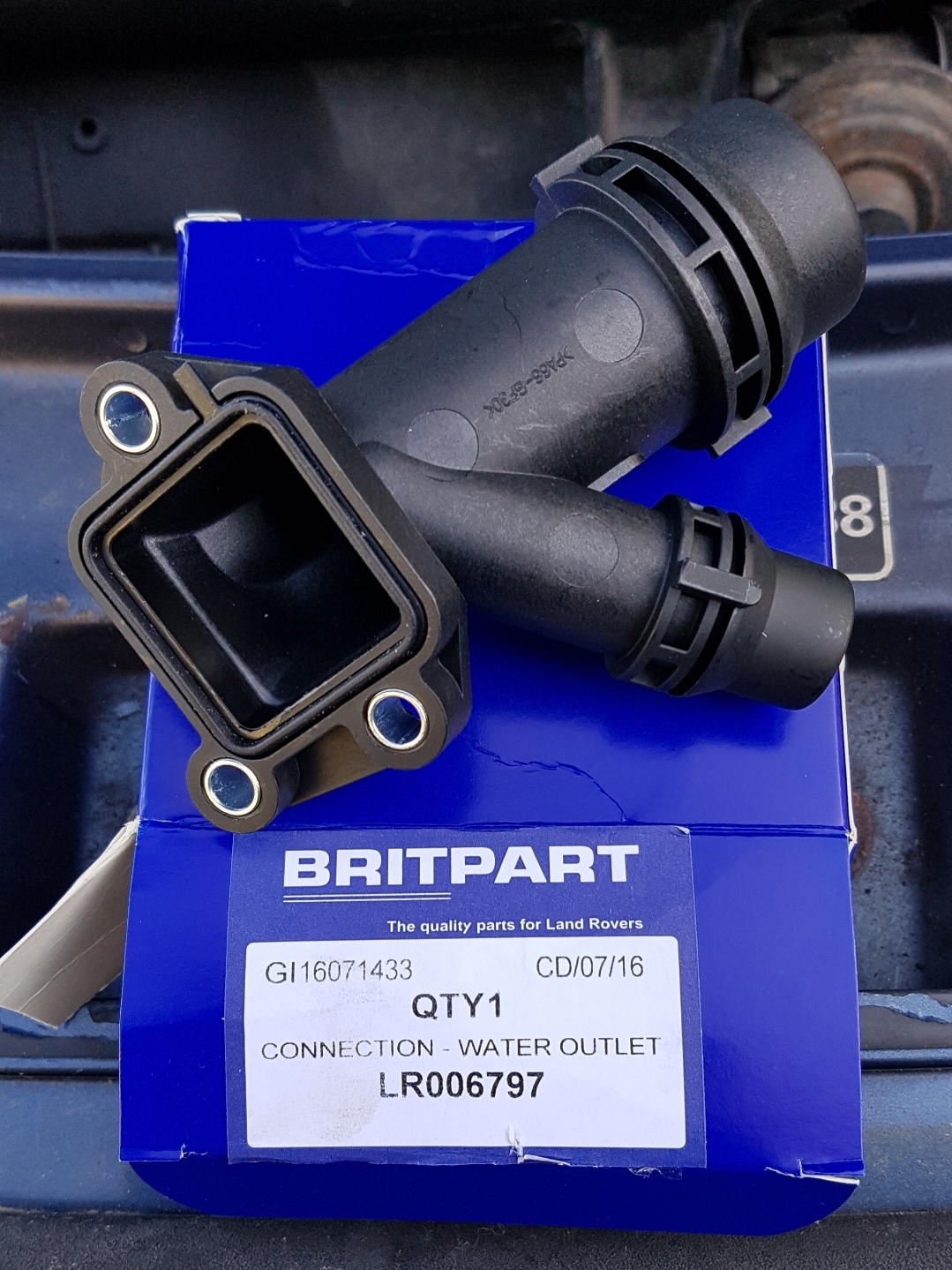

If it's leaking out from under the manifold, then it'll be the coolant top outlet to the radiator. They are known to fail as it's rubbish plastic. They're not expensive thankfully.



C

cjason331

Member

• Jun 10, 2023

• #7

Nodge68 said:

If it's leaking out from under the manifold, then it'll be the coolant top outlet to the radiator. They are known to fail as it's rubbish plastic. They're not expensive thankfully.
View attachment 290245

Click to expand...

Thank you



C

cjason331

Member

• Jun 10, 2023

• #8

Nodge68 said:

If it's leaking out from under the manifold, then it'll be the coolant top outlet to the radiator. They are known to fail as it's rubbish plastic. They're not expensive thankfully.
View attachment 290245

Click to expand...

You was right , I don't suppose you know how to get these pipes off ?



Nodge68

Well-Known Member

• Jun 10, 2023

• #9

Once the springs are removed, you just have to twist until they come free.



C

cjason331

Member

• Jun 10, 2023

• #10

Okay thanks
