Hi wise ones,
I was hoping someone might give me the lowdown on the existence (and location) of a coolant drain plug on the engine block of a straight six 2.6L?
I looked in the manual and had a brief poke about but nothing obvious jumped out.
Thanks, Josh

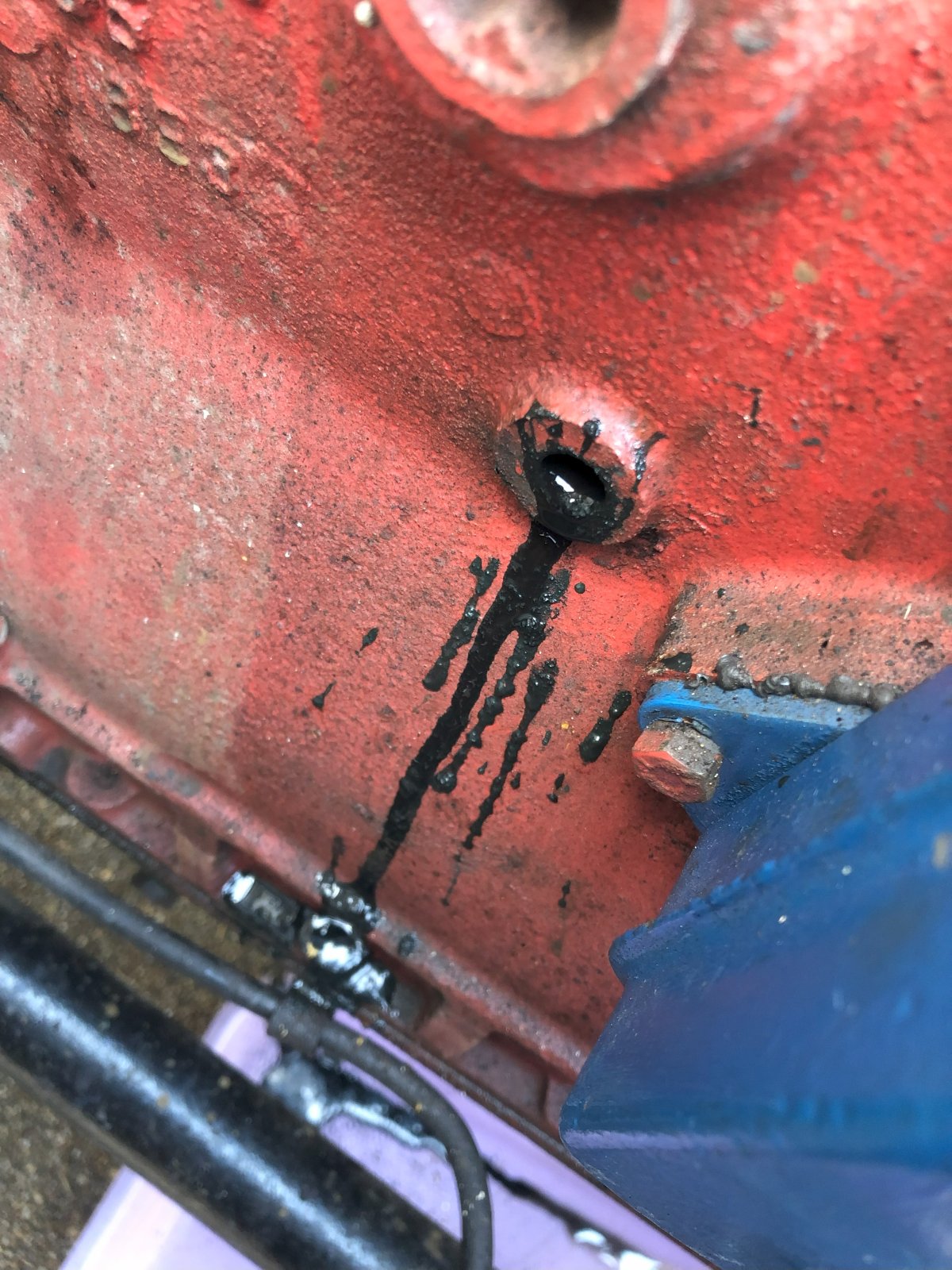

I located the tap drain with the help of @marjon's link. Soaked in penetrating oil for a while. Tried to undo tap - snapped off immediately :rolleyes:

Got a spanner on the nut (can't quite figure out the need for the tap bit if there's a nut?). Removed it ok, but no coolant came out ❓

Does that mean it's drained (I still think there's stuff in there) or have I made a mistake somewhere?

Pics of my ill-fated journey below






When the tap works properly, fluid will come out the middle of the stem.

Poke a bit of stiff something in the hole see if it’s blocked if you suspect fluid still in there.

J

marjon said:
When the tap works properly, fluid will come out the middle of the stem.

Poke a bit of stiff something in the hole see if it’s blocked if you suspect fluid still in there.

J
Click to expand...
That's what I thought until I took the whole thing out and saw the back of it (picture 4). Nothing's coming out of the stem if the back of it looks like that, right?

JoMo1974 said:
That's what I thought until I took the whole thing out and saw the back of it (picture 4). Nothing's coming out of the stem if the back of it looks like that, right?
Click to expand...
It’s a taper seat, so the gap opens up, that center disc is the stem so separate from the outer nut.

Get a new 1 (you need it) and it will all become clear.

or grip the stem in a vice and try again it will show itself ;)

J

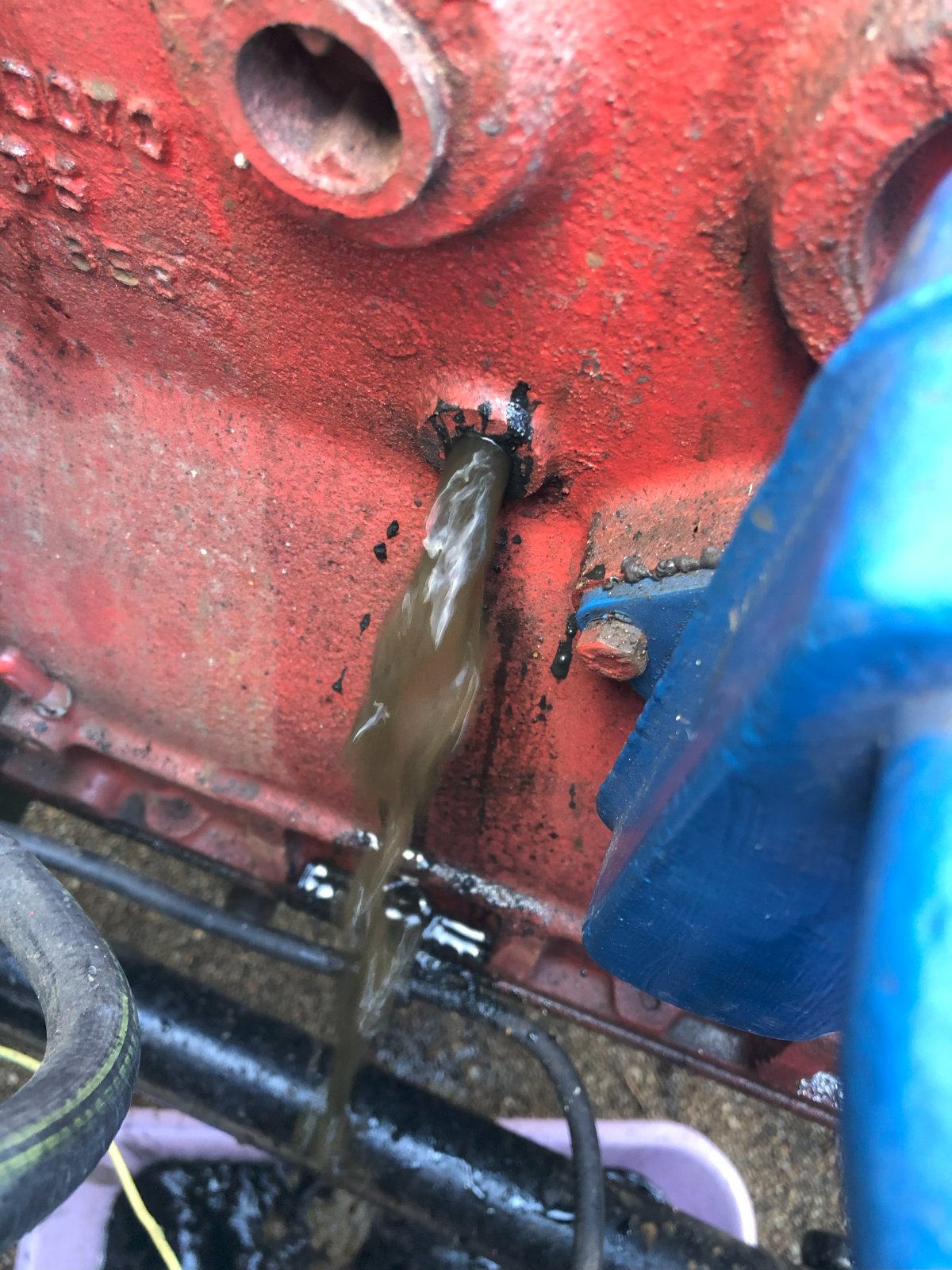

Eureka! Thanks for that. I delved into the orifice with a screwdriver, punched through a wall of gunk and a dribble of the devil's own diarrohoea started to ooze out. A longer prodder was subsequently employed... and whoosh!
