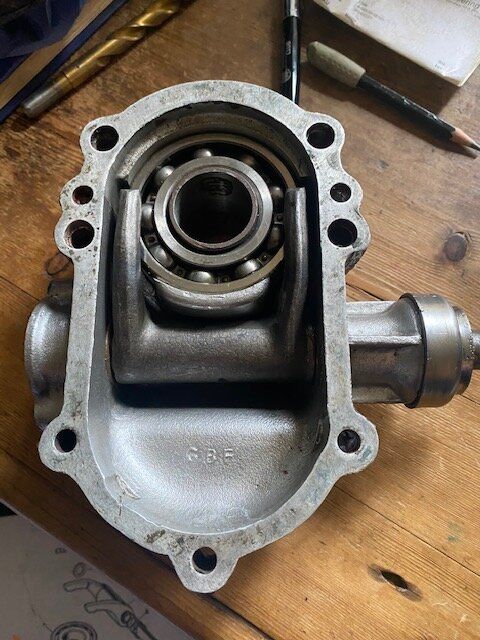

So I have been taking the gearbox apart of our S2a - took out the Clutch release mechanism and noticed there was no spring in the cross shaft. I assumed that there should be one... although not sure what is does!
I have bouts the spring but for the devil of me I have no idea how (or even whether) it fits! It can't go side by side the fork and thrust washer - its just too tight... and its a struggle to get the spring into the fork. If I could get it in I doubt it would do much use in there.

Any ideas on what to do? Thanks.



L

lynall

Well-Known Member

Full Member

• Apr 20, 2021

• #2

According to parts manual stping goes inside the fork itself.



F

FarmerPG

New Member

• Apr 20, 2021

• #3

Thanks Lynall for looking this up. The spring is quite long - you can get it into the fork with a struggle... but I can't see - with it so compressed in there - what its purpose can be apart from getting in the way of the shaft! It can't act as a spring back (or forward) mechanism.



tottot

Well-Known Member

• Apr 20, 2021

• #4

Anti rattle spring I recon, Clutch unit springs push the fork back.



F

FarmerPG

New Member

• Apr 20, 2021

• #5

That makes sense tottot - can’t believe it needs to be such a long spring but I’ll thread the spring back into the tube of the clutch fork with a small end showing that acts to stop any fork rattle
Thanks!



Blackburn

Well-Known Member

• Apr 20, 2021

• #6

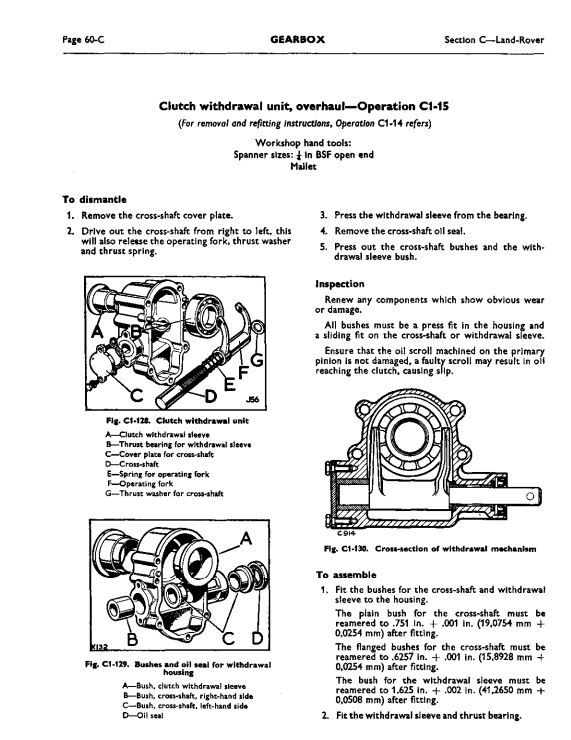

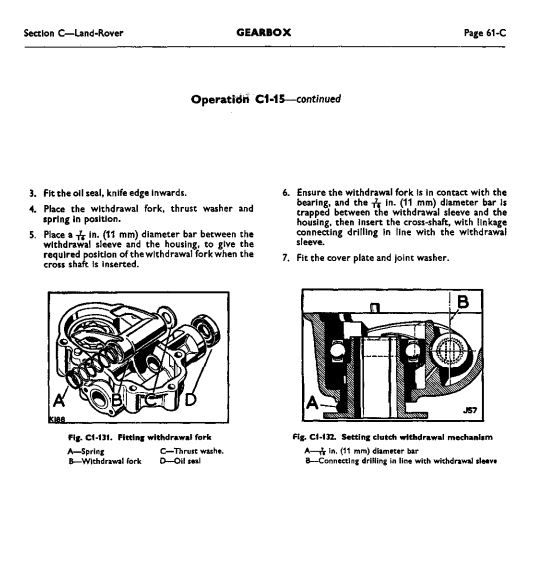

These snips from series 2 manual show its location.



Attachments

•
  clutch fork spring.JPG

  85.9 KB · Views: 70
•

  48 KB · Views: 98

F

FarmerPG

New Member

• Apr 20, 2021

• #7

Blackburn said:

These snips from series 2 manual show its location.

Click to expand...

Many thanks Blackburn.
