border · Mar 6, 2020

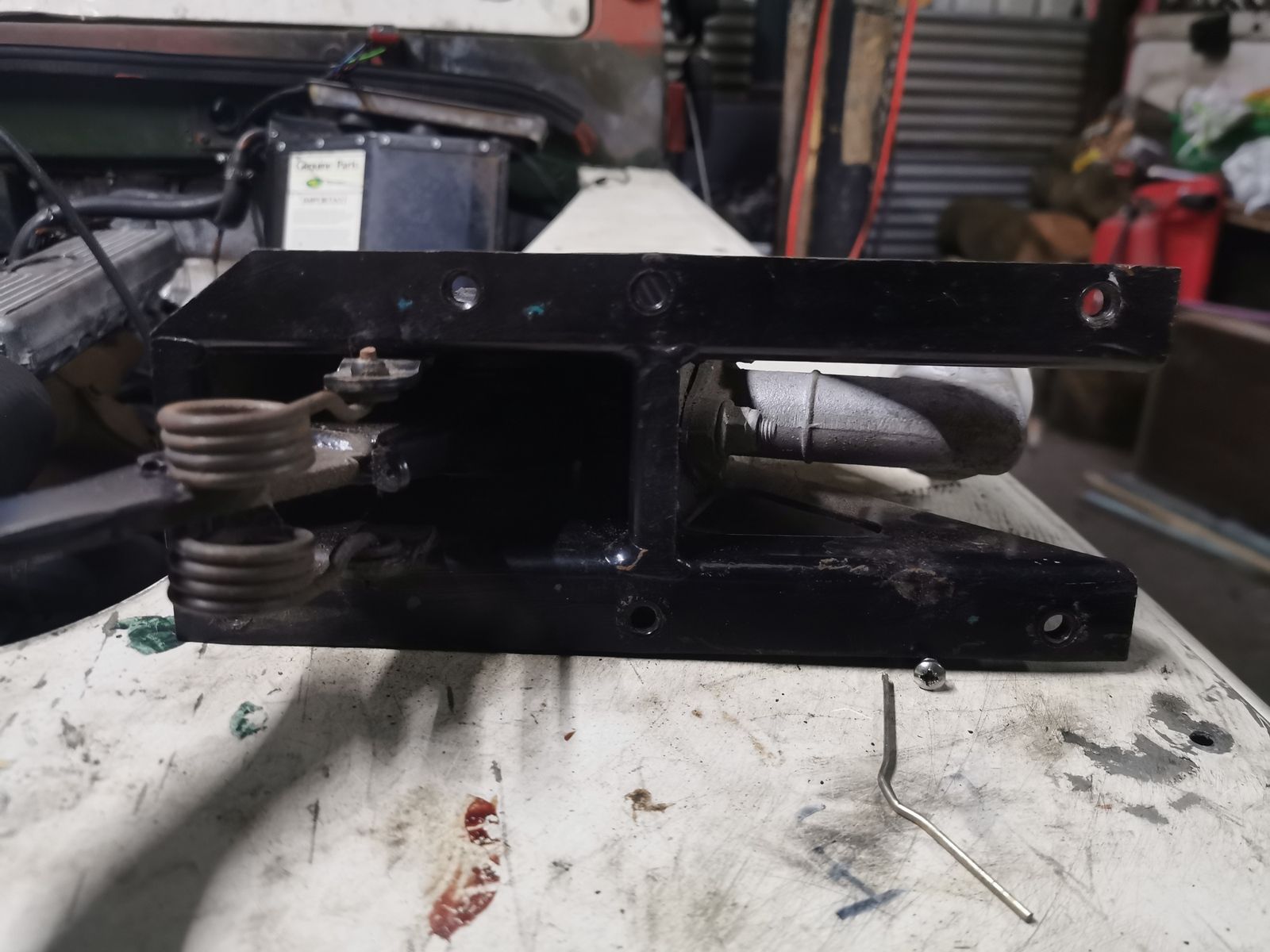

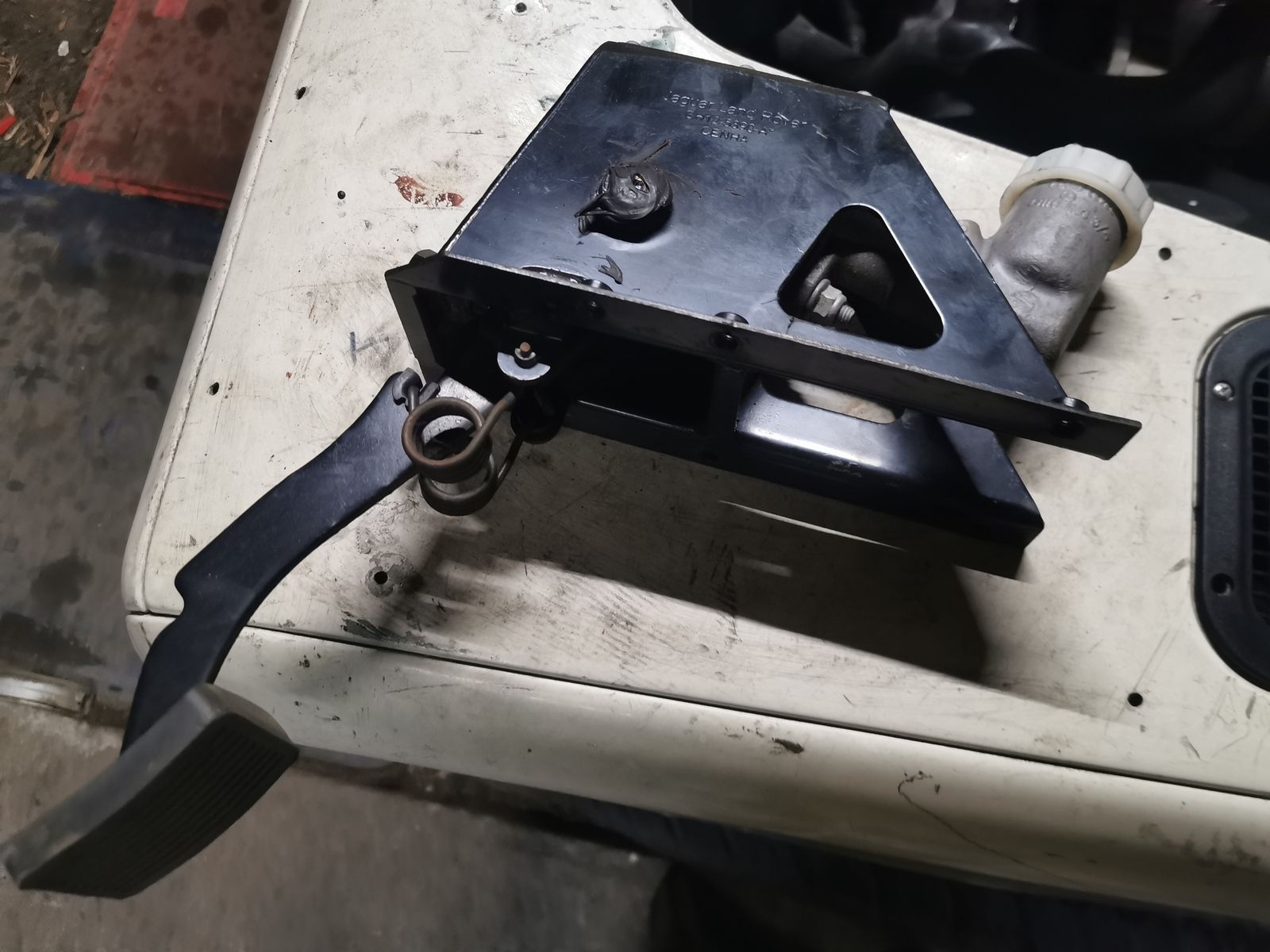

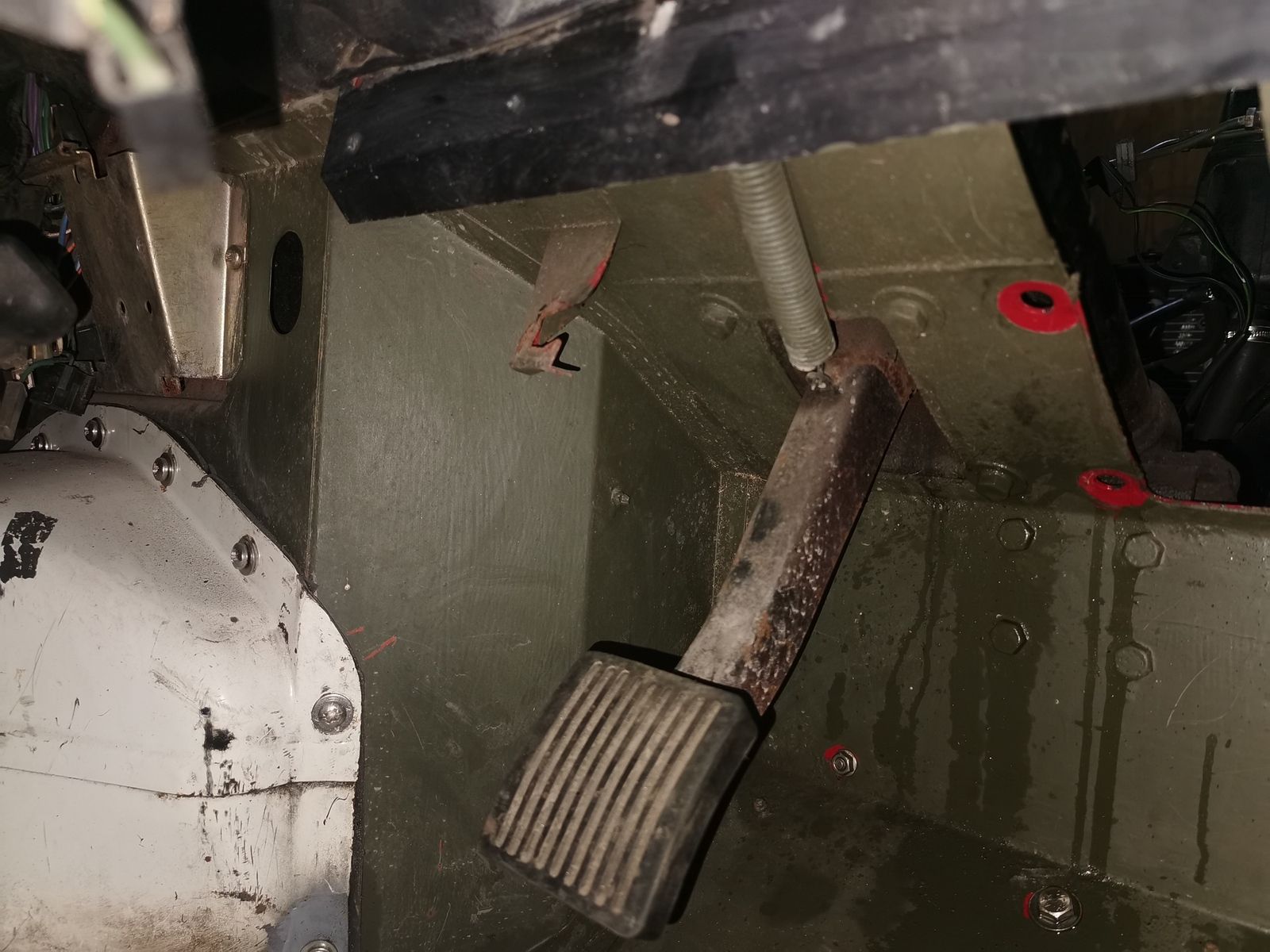

Just a quick one. Forgot I had this New Clutch Pedal and Slave, was going to fit it tonight but noticed the off set holes on one side, everything else looks the same as old one except the new one has the better spring then the old one in third pic. I THINK

the other 5 holes Should line up , Question is will the 5 be sufficient to hold it or should I drill another ?

jamesmartin · Mar 6, 2020

should be 6 holes but should fit ok

border · Mar 6, 2020

jamesmartin said:
should be 6 holes but should fit ok

Thanks Mate, Might aswell put it on as Looks much better spring then the old one. I think it was a new take off when I bought it but only difference is the holes and spring.

jamesmartin · Mar 6, 2020

border said:
Thanks Mate, Might aswell put it on as Looks much better spring then the old one. I think it was a new take off when I bought it but only difference is the holes and spring.

its a helper spring so a better choice,only problem when system isnt bled, pedal if pushed to the floor wont return on its own

border · Mar 6, 2020

jamesmartin said:
its a helper spring so a better choice,only problem when system isnt bled, pedal if pushed to the floor wont return on its own

Cheers Wont be a while yet but get ready for more questions on it when I finally fill it with clutch fluid and Try and bleed it coz I aint got a clue how to do that Yet.

lightning · Mar 6, 2020

Looks like a PUMA pedal box, you can secure it with the missing 6th hole but you’ll need to put a washer on the bolt. If you are using the PUMA master cylinder (and yours is a TD5 or TDi) you need to change the electrical switch as the PUMA one works the opposite way round.

border · Mar 6, 2020

lightning said:
Looks like a PUMA pedal box, you can secure it with the missing 6th hole but you’ll need to put a washer on the bolt. If you are using the PUMA master cylinder (and yours is a TD5 or TDi) you need to change the electrical switch as the PUMA one works the opposite way round.

Thanks Think there was another small piece with it cant remember what it was now, but should have it somewhere.
Where will the switch be ?
Mine is 300tdi

jamesmartin · Mar 6, 2020

border said:
Thanks Think there was another small piece with it cant remember what it was now, but should have it somewhere.
Where will the switch be ?
Mine is 300tdi

you wont need a switch for the clutch

border · Mar 6, 2020

jamesmartin said:
you wont need a switch for the clutch

Good Thanks
