Hi all

I removed the centre Console on my Freelander to get to the solenoid spring for the gear and like an idiot I forgot to take a photo of the looms.

Does anybody have a photo of the looms going in to centre console or know the colour codes ?

(Ac, heated seats etc)



andyfreelandy

Well-Known Member

• Aug 23, 2024

• #2

If it is to plug the switches back onto the wiring connectors, they are configured only to fit the right plugs so should be simple.

Guess it is a Freelander 1 ??

If you have cut the plugs off then it is a more involved answer !!!



Freddie17

Can’t re Member

Full Member

• Aug 23, 2024

• #3

As Andy says, they only go 1 way, but I took pics when I got it all out, as I didn’t know that at the time!
Pics, with wire colours…



K

krisbduck

New Member

• Aug 23, 2024

• #4

Absolute legend thanks Freddy



K

krisbduck

New Member

• Aug 23, 2024

• #5

andyfreelandy said:

If it is to plug the switches back onto the wiring connectors, they are configured only to fit the right plugs so should be simple.

Guess it is a Freelander 1 ??

If you have cut the plugs off then it is a more involved answer !!!

Click to expand...

Thanks didn't realise they only got the correct plugs !

I haven't cut them !!!



K

krisbduck

New Member

• Aug 23, 2024

• #6

Freddie17 said:

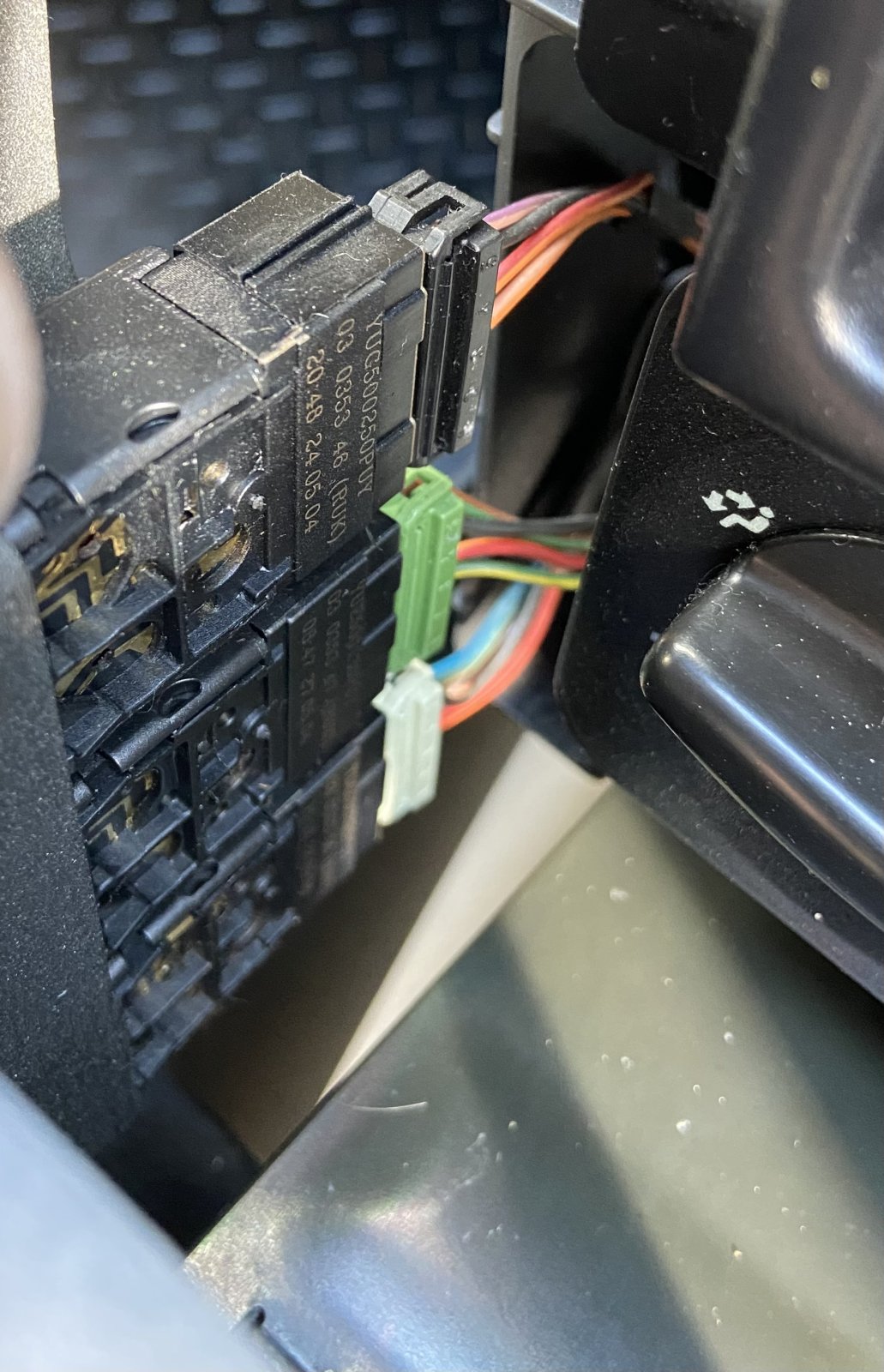

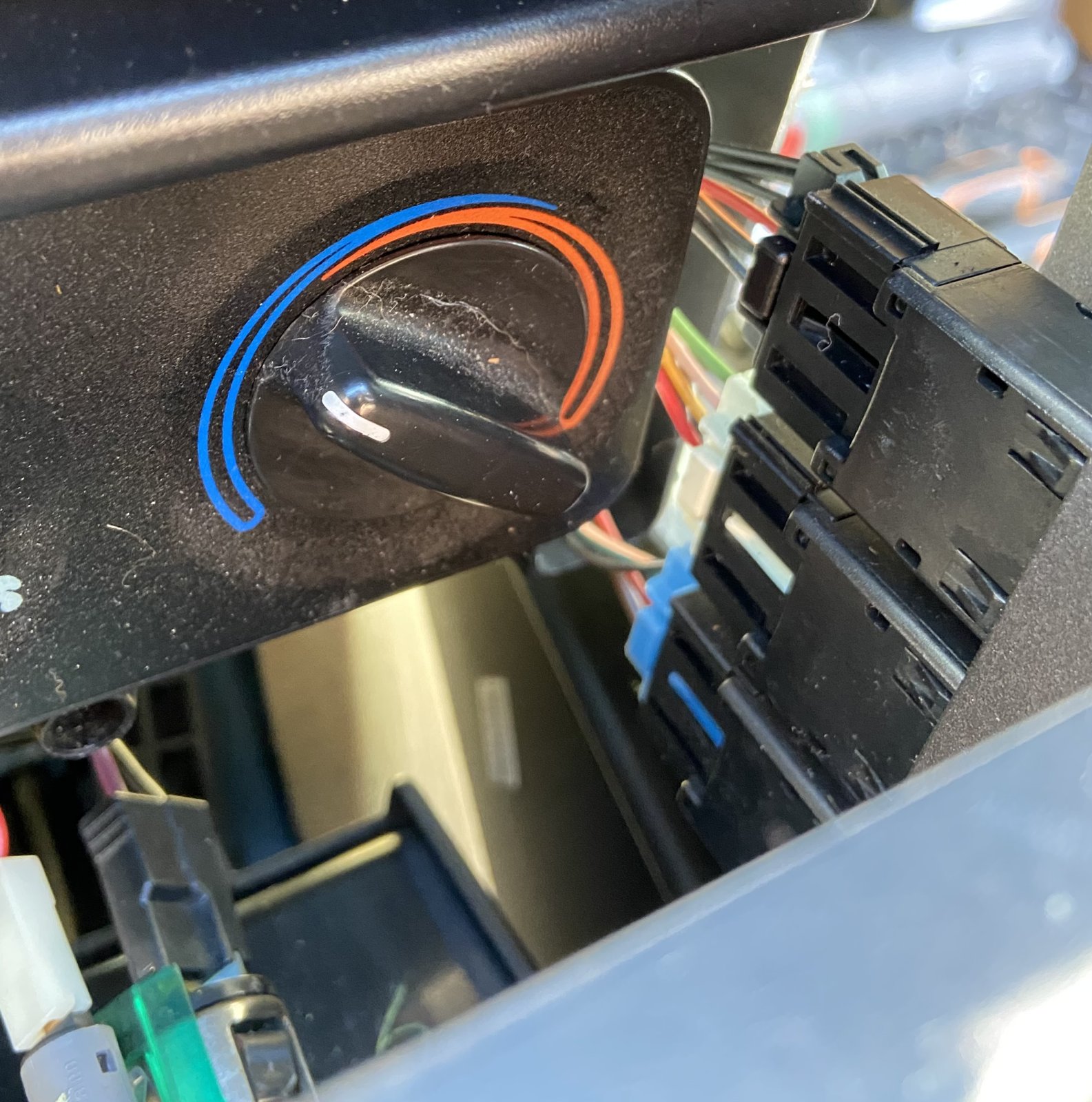

As Andy says, they only go 1 way, but I took pics when I got it all out, as I didn’t know that at the time!
Pics, with wire colours…

View attachment 324353


View attachment 324354

Click to expand...

Thanks so much
