So I've mounted twin CB aerials on a roof-rail on the back of my disco and have the cables running down each side gutter and just put the cable under the door seal. However, after a lot of rain recently I've noticed a huge leak from both rear doors (never had this leak before) - I'm thinking this is due to these two cables.

I want some advice on how to wire these cables into the Disco, I can figure out getting the cables throughout the car just not the best place to get them inside.



Flossie

Well-Known Member

• Jun 18, 2020

• #2

I used an electrical gland nut to run my spotlight wiring into the cab of my 110.
Front top of the roof, no leaks 16yrs on. Means drilling(two) holes in your roof though (20mm iirc).



Flossie

Well-Known Member

• Jun 18, 2020

• #3

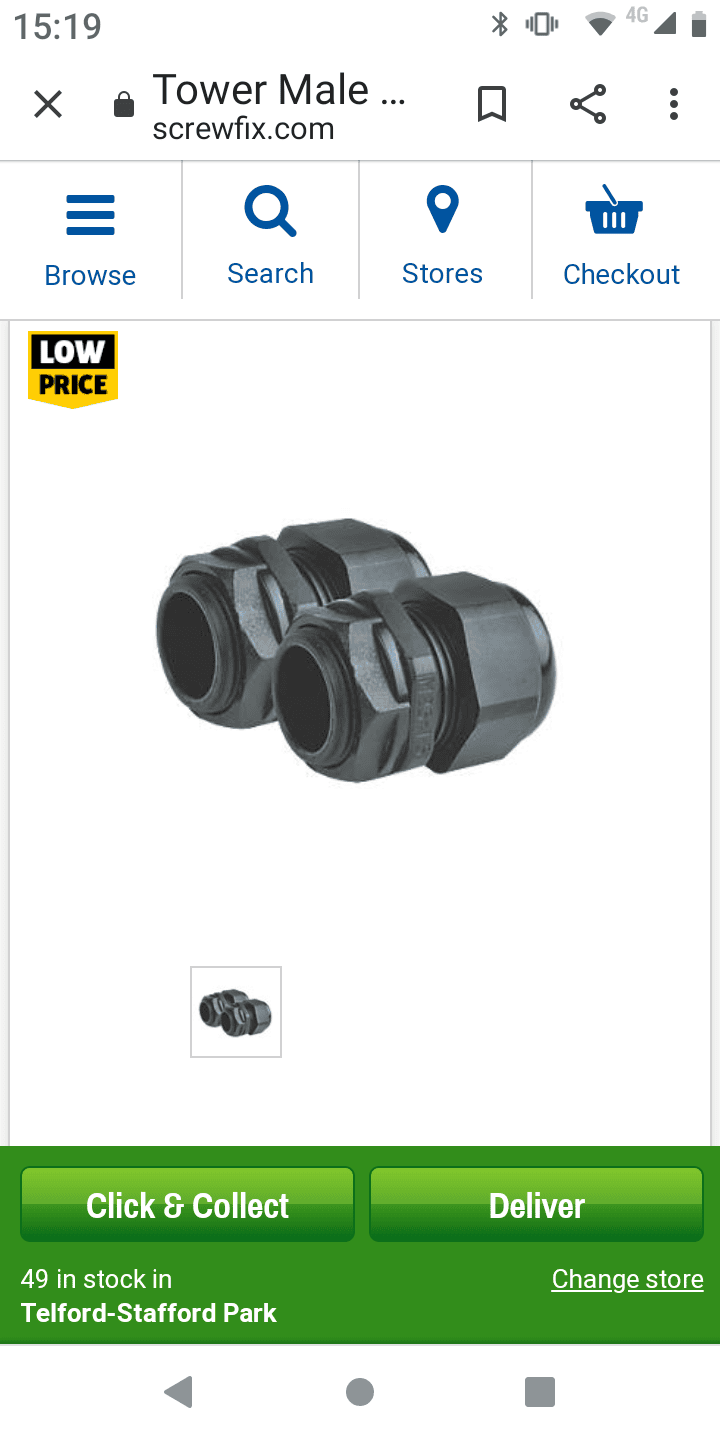

£1.45 for 2 at Screwfix.



discool

Well-Known Member

• Jun 20, 2020

• #4

For a single co-ax with a max diameter size of 8mm as used with CB antenna a M16 gland is ideal.



Last edited: Jun 20, 2020

Flossie

Well-Known Member

• Jun 20, 2020

• #5

discool said:

For a single co-ax with a max diameter size of 8mm as used with CB antenna a M16 gland is ideal.

Click to expand...

Yeah, just looked at mine and I used a 16mm one not a 20.
