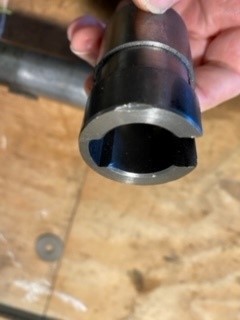

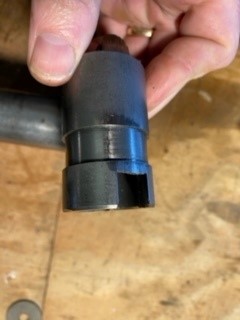

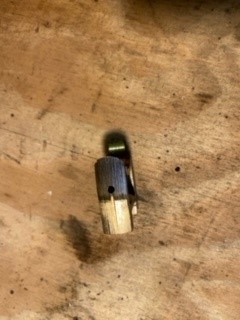

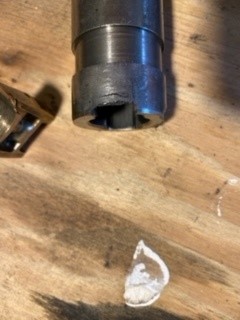

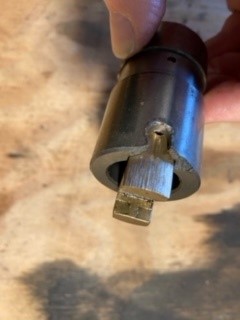

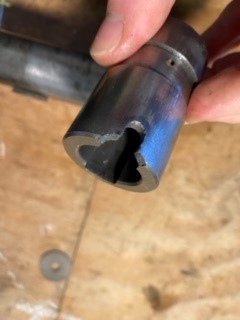

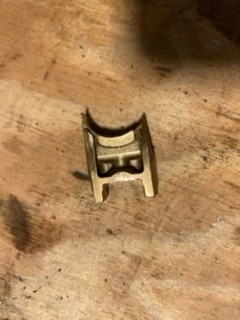

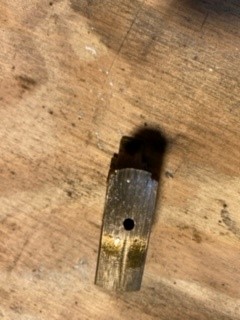

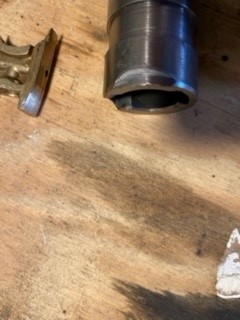

Hi All, I 'rolled the dice' and bought a 'Spares or Repair' 200 tdi engine as a bit of a project. The chap had advertised it as having broken piston rings, but on opening her up I discovered damage to 4 of the cam followers and sleeves. The push rods that came out weren't bent or anything, but I cant guarantee they were the original ones in the engine when the damage occurred.
cam 5.jpg
cam 6.jpg
cam 1.jpg
cam 2.jpg

I'm conducting a full rebuild and will be replacing the cam and followers / sleeves etc, but wanted to try and understand the root cause of this issue to avoid having a repeat of it when I reassemble the engine. Can anyone advise on what might have caused this damage to 4 of the followers/sleeves? Thank you
cam 1.jpg
cam 2.jpg
cam 3.jpg
cam 4.jpg
cam 6.jpg
cam 9.jpg
cam 10.jpg
cam 11.jpg

Last edited:
Hi All, I 'rolled the dice' and bought a 'Spares or Repair' 200 tdi engine as a bit of project. The chap had advertised is it as having broken piston rings, but on opening her up I discovered damage to 4 of the cam followers and sleeves. The push rods that cam out weren't bent or anything but I cant guarantee they were the original ones in the engine when the damage occurred.
View attachment 233357 View attachment 233358 View attachment 233353 View attachment 233354 I
'm conducting a full rebuild and will be replacing the cam and followers / sleeves etc, but wanted to try and understand the root cause of this issue to avoid having a repeat of it when I reassemble the engine. Can anyone advise on what might have caused this damage to 4 of the followers/sleeves?
View attachment 233353 View attachment 233354 View attachment 233355 View attachment 233356View attachment 233358 View attachment 233362 View attachment 233364 View attachment 233366
Broken timing belt.

Broken timing belt.
Thank you - I assume that the push rods etc aren't the originals then? I intend to replace cam shaft and followers etc, but are there other key areas I need to be careful to ensure they are all serviceable. The rocker arms and valve stems look ok, but I have yet to strip these to inspect properly.

I would hazard a guess just old age, the newest 200 engines are 28 yrs old, oldest 32.
Add in general neglect ie no oil changes/extended oil changes/wrong oil, and its amazing they last so well.

Thank you - I assume that the push rods etc aren't the originals then? I intend to replace cam shaft and followers etc, but are there other key areas I need to be careful to ensure they are all serviceable. The rocker arms and valve stems look ok, but I have yet to strip these to inspect properly.
Either they have put it back together with new push rods, or, like he says^^^^, just worn out.
