Depends on its size and itβs location, Stillsonβs and before starting a splash of Plus gas comes to mind.

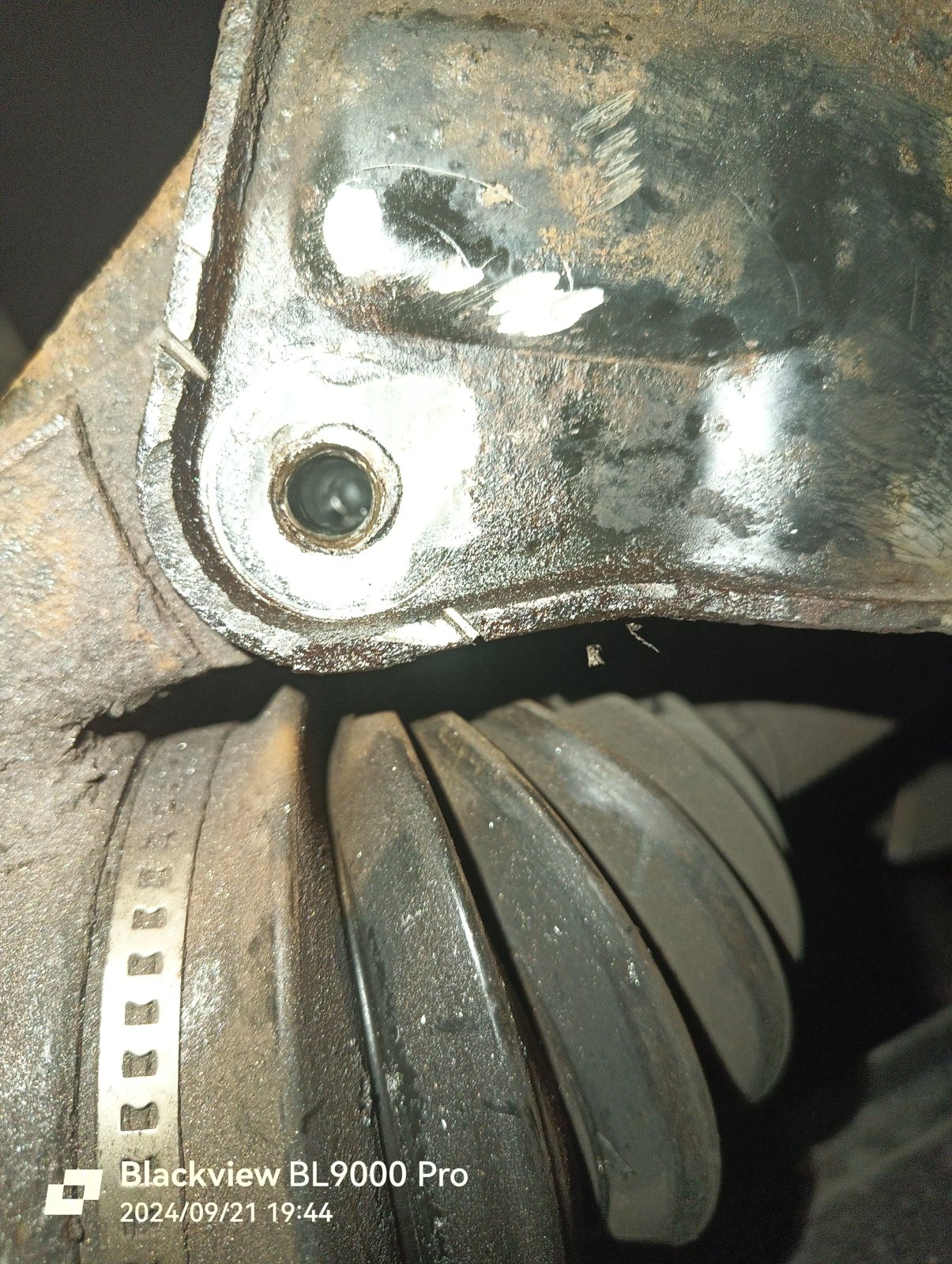

As above, where is the broken bolt ?
Attachments
I would grind the head off & then if you have enough room drill out what's left, or once the bolt head is off open the strut enough to get it clear then drill or as said above remove the assy to drill on the bench,best of luck.
I had a couple of seized strut bolts on my FL1 I spent hours spraying them with penetranting fluid then with the nut flush with the end of the bolts just hitting them backwards & forwards until eventually they started to move. I also (only) used a single hex impact socket (always try to avoid rounding fastners) on a breaker bar to add a bit of twist, still adding lots of p. fluid, I feel your pain
.
.My first port of call would be an air chisel with the chisel bit cut off flush.
If you try and punch it out like a pansy what will happen is the end of the bolt will expand and get tighter in the hole.
Are you using 6 sided sockets?
Next size socket down can help a lot, obviously will need hammering on.

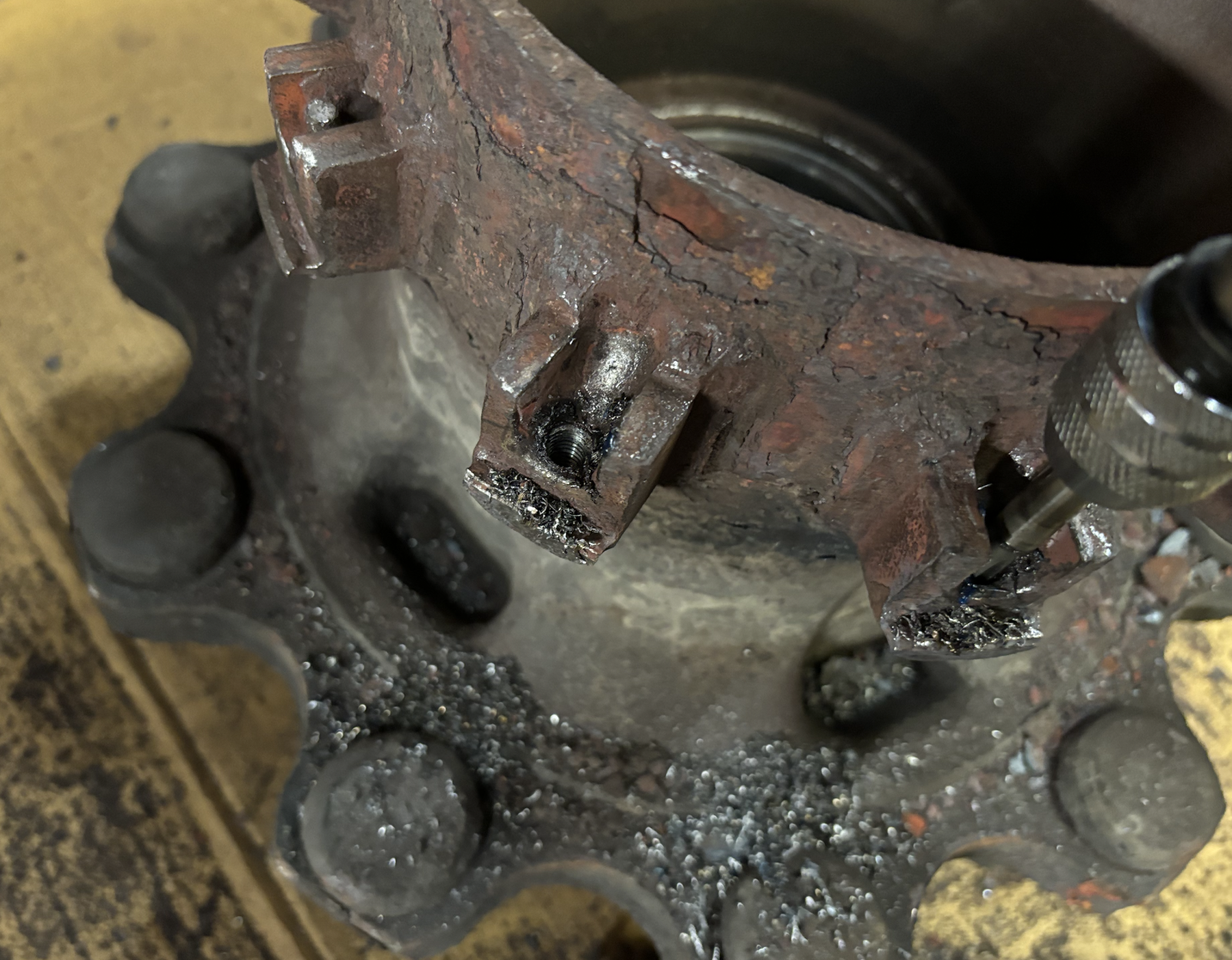

This was my seized bolt fun today, 20 of the friggin things.
If you try and punch it out like a pansy what will happen is the end of the bolt will expand and get tighter in the hole.
Are you using 6 sided sockets?
Next size socket down can help a lot, obviously will need hammering on.
This was my seized bolt fun today, 20 of the friggin things.
I will have fresh head in the morning! To look at what I can do.
Thank you
Ouch
Tried that today!I had a couple of seized strut bolts on my FL1 I spent hours spraying them with penetranting fluid then with the nut flush with the end of the bolts just hitting them backwards & forwards until eventually they started to move. I also (only) used a single hex impact socket (always try to avoid rounding fastners) on a breaker bar to add a bit of twist, still adding lots of p. fluid, I feel your pain

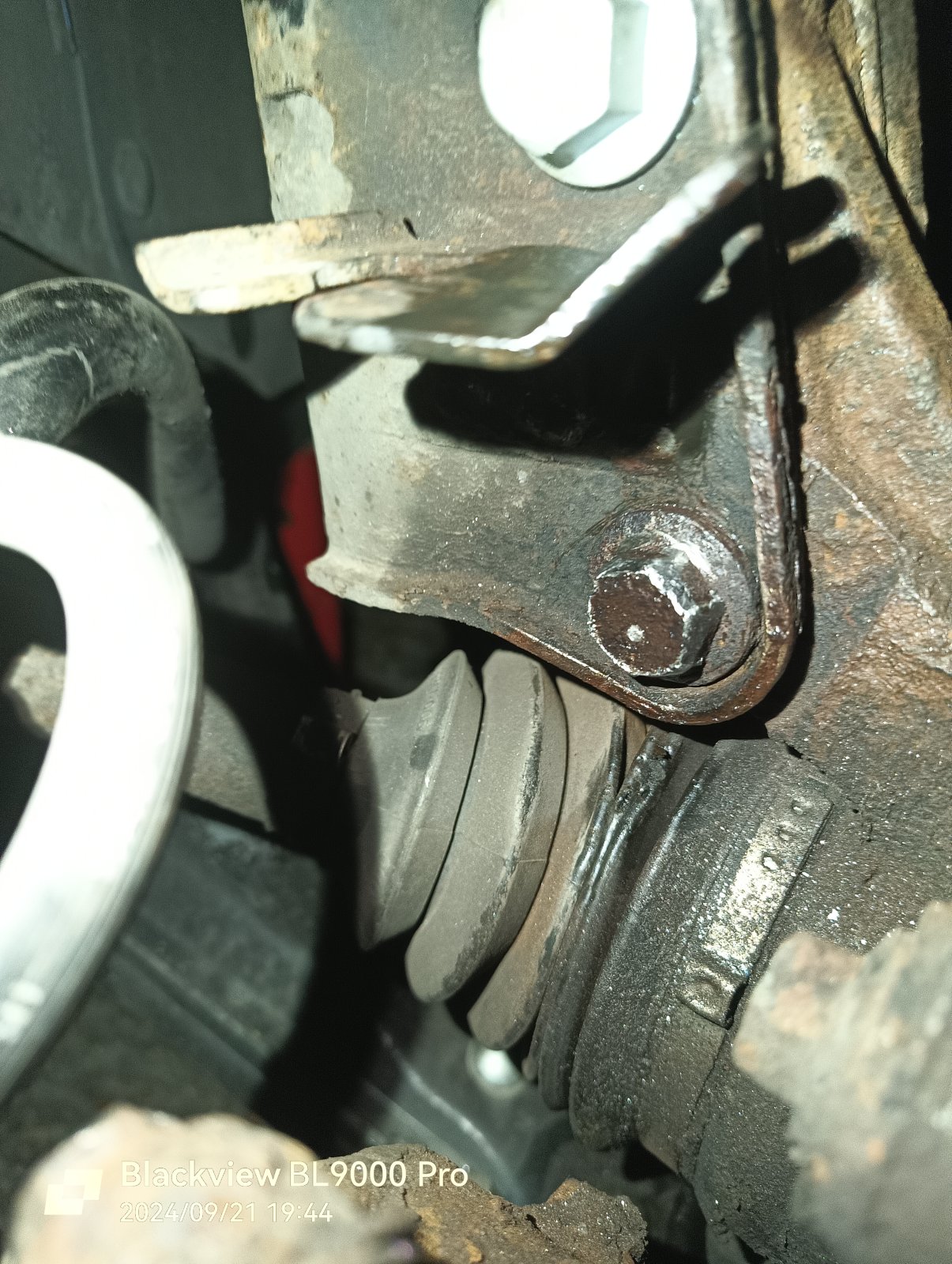

From about 10 this morning, the top one was of after about 45 mins!The bottom one is the problem
Kev
Tenebreaux
Well-Known Member
Mapp gas.
Tried! Failed
Tried! Failed
Brake fluid ? or AFT or a mix of the two
julianf
Well-Known Member
Irwin things may work on that.
Welding an oversized nut (so you can get plenty of metal / heat down the hole) certainly will.
Its not so much the ability to give it extra grip, as the proper directed heat doing "somthing" to the bond.
Mapp is one level - mig is entirely another.
Welding an oversized nut (so you can get plenty of metal / heat down the hole) certainly will.
Its not so much the ability to give it extra grip, as the proper directed heat doing "somthing" to the bond.
Mapp is one level - mig is entirely another.
Heat helps to shift the 'rust bond'
