Seph98

Member

• Nov 17, 2024

• #1

Can you kindly help with the above, please?

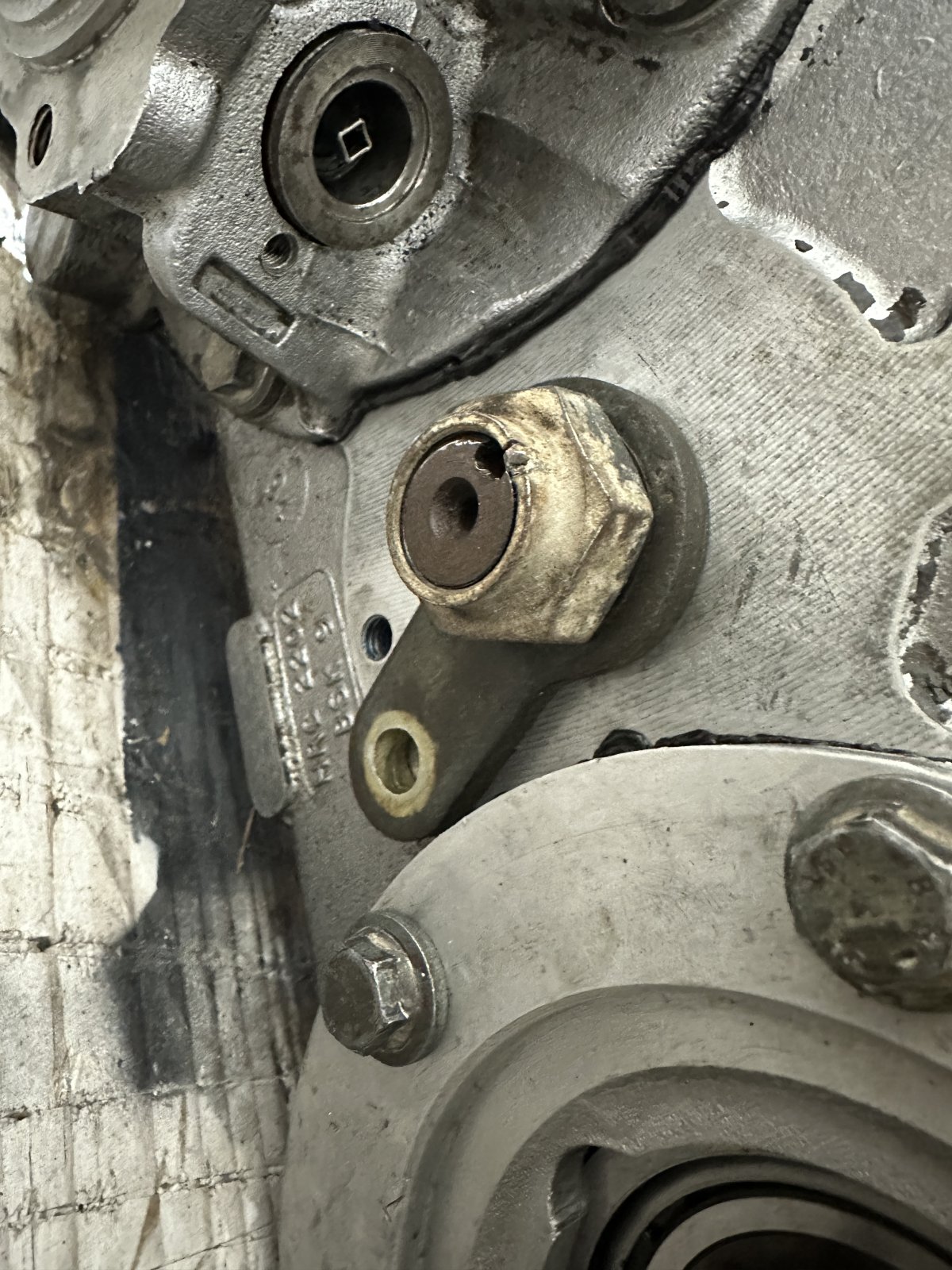

Bolt ID - Retaining plate intermediate shaft lt230

Thanks in advance.



Attachments

•

  379.8 KB · Views: 24

tottot

Well-Known Member

• Nov 17, 2024

• #2

It is a type of nut known as a "stake nut" It is done up to a set torque and then the edge of the nut is "staked" bent into the groove on the shaft to prevent it undoing. FRC 7453
Why do you ask?



Seph98

Member

• Nov 17, 2024

• #3

Not the nut :/ the bolt underneath it …



Seph98

Member

• Nov 17, 2024

• #4

The bolt underneath should be around 6mm width. But length and head dont know how they are



miktdish

Guns n Chainsaws

Full Member

• Nov 17, 2024

• #5

Seph98 said:

The bolt underneath should be around 6mm width. But length and head dont know how they are

Click to expand...

It's an M8x20 flanged, hex head, set screw/bolt.
It doesn't have to be HT but don't fit a stainless bolt ...

Flange Hex Head Screw M8x20 | Aston Martin

Flange Hex Head Screw M8x20 For Aston Martin Vehicles and Part Number: 703121. Is one of 60,000 Aston Martin Parts listed in our store.

www.astonstore.co.uk

Hex Head Flange Bolt M8 x 20mm 10.9 high tensile steel

Hex head flange bolt M8 x 20mm, 10.9 high tensile steel. Thread pitch: 1,25 mm Spanner Size: 13 mm

www.aecar.co.uk
