BritishLeylandLover

Member

• Oct 14, 2018

• #1

Hi further to my post "series jammed in gear" I followed the advice and drained my gearbox oil,

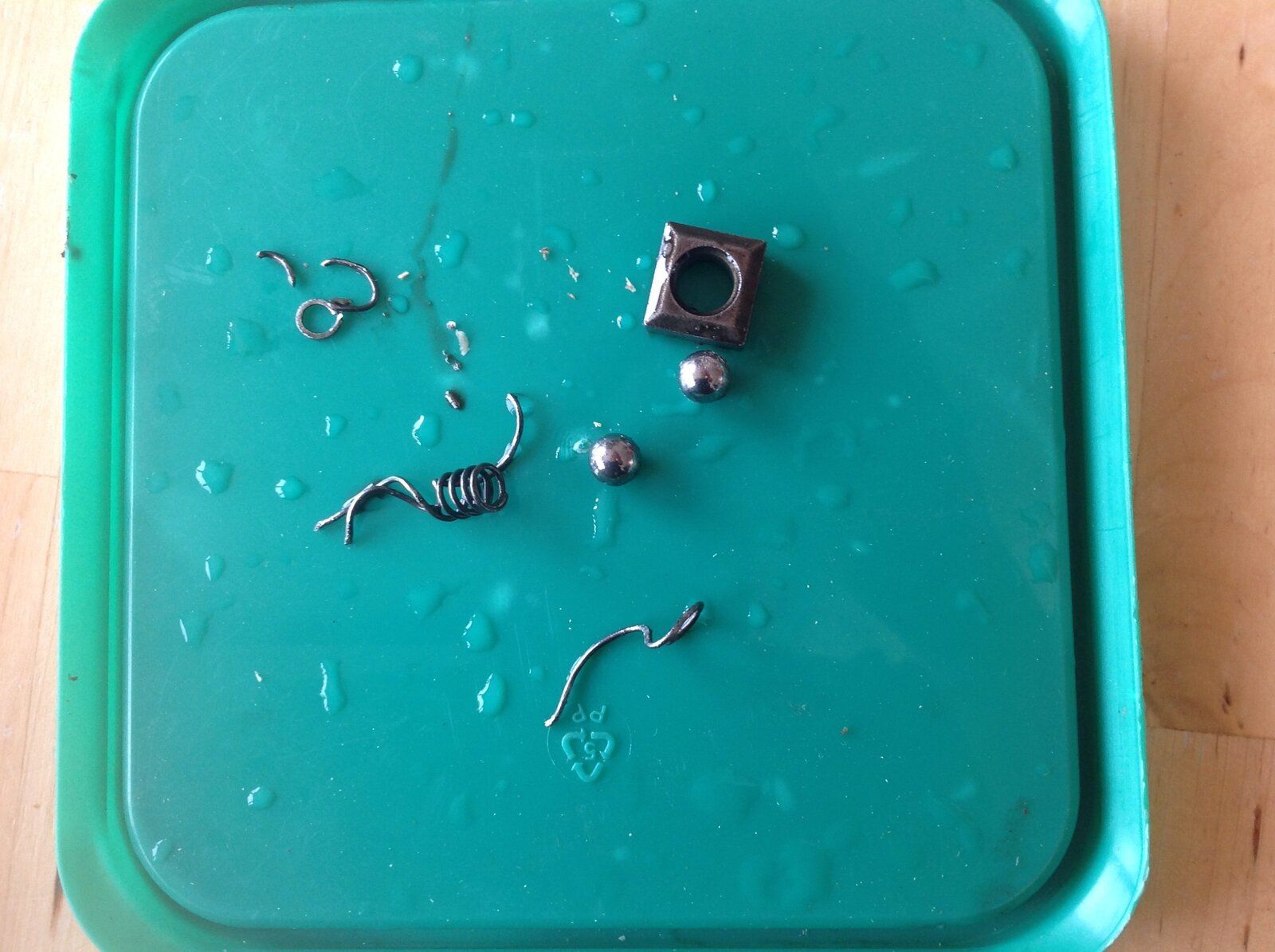

I think that they are detent springs from the selector mechanism?.Anybody know where the square nut came from? Is it an easy job to replace them? Will the box need to come out? Will anymore damage have been done? Thanks for your help Myles.



jamesmartin

Well-Known Member

• Oct 14, 2018

• #2

BritishLeylandLover said:

Hi further to my post "series jammed in gear" I followed the advice and drained my gearbox oil, View attachment 160783 I think that they are detent springs from the selector mechanism?.Anybody know where the square nut came from? Is it an easy job to replace them? Will the box need to come out? Will anymore damage have been done? Thanks for your help Myles.

Click to expand...

thats not a square nut its from 1st and 2nd syncro hub there are three slipper pads springs and detent balls



BritishLeylandLover

Member

• Oct 14, 2018

• #3

jamesmartin said:

thats not a square nut its from 1st and 2nd syncro hub there are three slipper pads springs and detent balls

Click to expand...

Thanks James, I've only found a couple of them then, could the 3rd one still be in situe or somewhere in the box?



BritishLeylandLover

Member

• Oct 14, 2018

• #4

BritishLeylandLover said:

Thanks James, I've only found a couple of them then, could the 3rd one still be in situe or somewhere in the box?

Click to expand...

Oh dear, yes I've found where the come from now, gearbox out.... Don't suppose it can be done in situe



jamesmartin

Well-Known Member

• Oct 14, 2018

• #5

BritishLeylandLover said:

Oh dear, yes I've found where the come from now, gearbox out.... Don't suppose it can be done in situe

Click to expand...

no and look at the inner part of synchro hub parts of it around those locations often break off, and keep the 2 halves together and check they have marks or mark them yourself to ensure they can be but back together again in the exact same relationship,the slipper pads have a slight curve on the top edge this means they should be fitted ensuring they do



Last edited: Oct 15, 2018

BritishLeylandLover

Member

• Oct 14, 2018

• #6

Wicked , thanks James



R

rob1miles

Well-Known Member

• Oct 15, 2018

• #7

I'm assuming therer will be a broken syncro ring in there somewhere?



C

Colthebrummie

Well-Known Member

• Oct 16, 2018

• #8

At least there aren't bits of broken gear teeth...yet.

Col
