S

Spartacus2024

New Member

• Oct 12, 2024

• #1

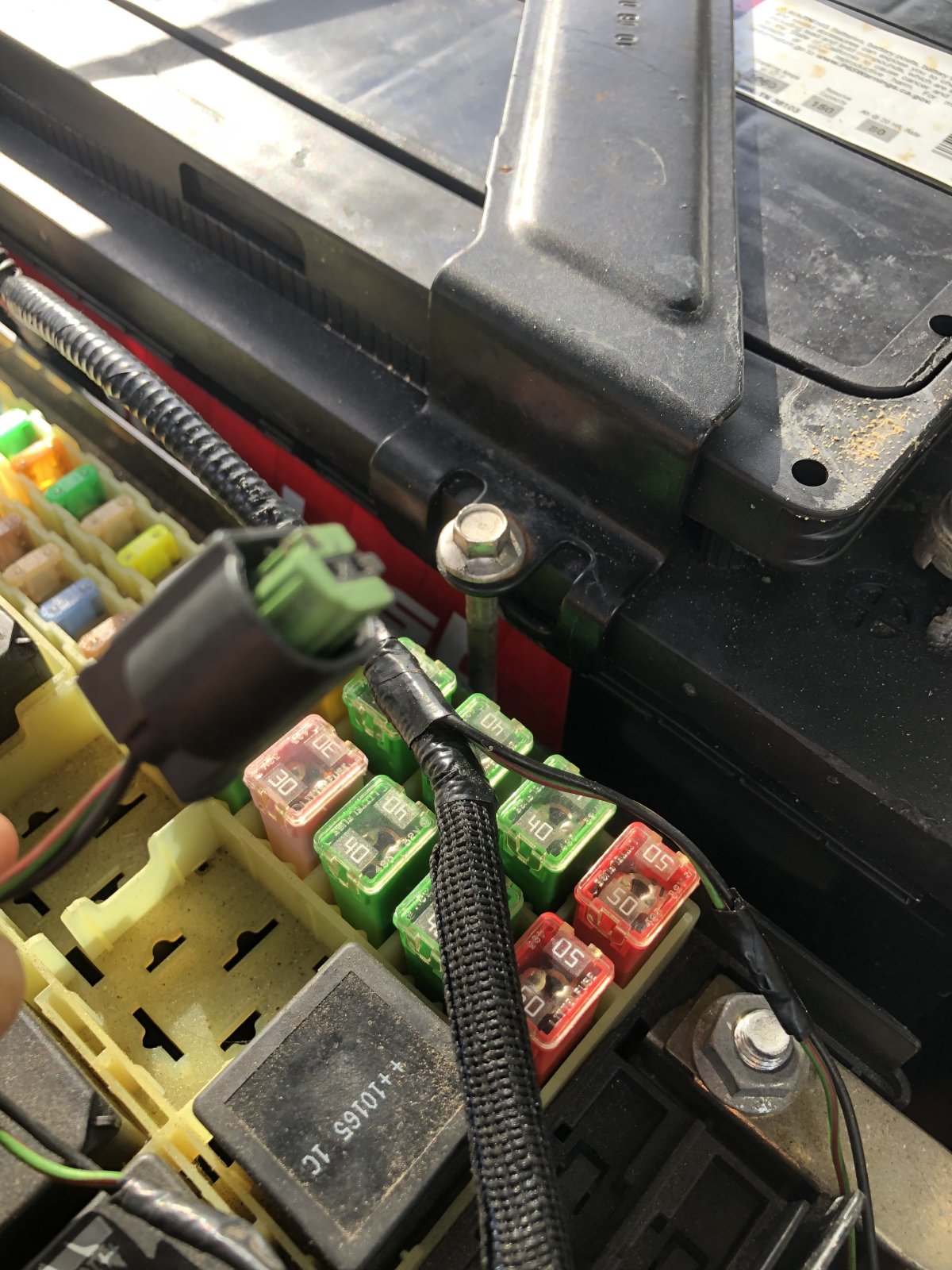

Hello everyone, newbie here. Just bought a used 2010 RR Sport HSE Supercharged and I'm having charging system fault and related codes. In investigating one of the first discoveries is the disconnected wire shown in the pic. Can anyone advise where it connects? Many thanks in advance. Cheers--Bob in FL USA



Attachments

•

  323.3 KB · Views: 28

Graculus

Well-Known Member

• Oct 12, 2024

• #2

Nowhere - it's for the transit relay which is removed at PDI



S

Spartacus2024

New Member

• Oct 12, 2024

• #3

Thank you for that information. That's a disappointing answer as I was hoping it was related to the various charging system fault codes I have that are putting me in restricted performance mode. Back to the drawing board!



Graculus

Well-Known Member

• Oct 12, 2024

• #4

Maybe posting factual DTC's and observations / measurements may get you some guidance rather than speculating?
No-one can help with 'various fault codes' unless they know which ones they are.



S

Spartacus2024

New Member

• Oct 12, 2024

• #5

I was going to post codes after I had some insight into the plug in the pic.
B11DB
P065B
P0306 misfire



Graculus

Well-Known Member

• Oct 12, 2024

• #6

B11DB-87 is the relevant DTC, check the fusible lead from the battery positive to the battery monitor on the negative post for connectivity and check the fusible link hasn't been damaged or blown.



RangeRoller dt

Well-Sprung Member

• Oct 12, 2024

• #7

Pretty sure p0306 is misfire on cyl 6. Probably plug or lead.



Graculus

Well-Known Member

• Oct 12, 2024

• #8

It won't be a lead - they're coil pack on plug, It could also be due to low voltage so personally I'd discount it until the system is running at >12.6VDC



S

Spartacus2024

New Member

• Oct 12, 2024

• #9

Checked the wire from pos to battery monitor and it looks ok. I'll try a jumper to verify no breaks in the wire.
