payydg

Well-Known Member

• Jul 4, 2022

• #1

From the back of a Range Rover sport fridge that I’m planning on installing into the cubby box of my defender for no good reason.

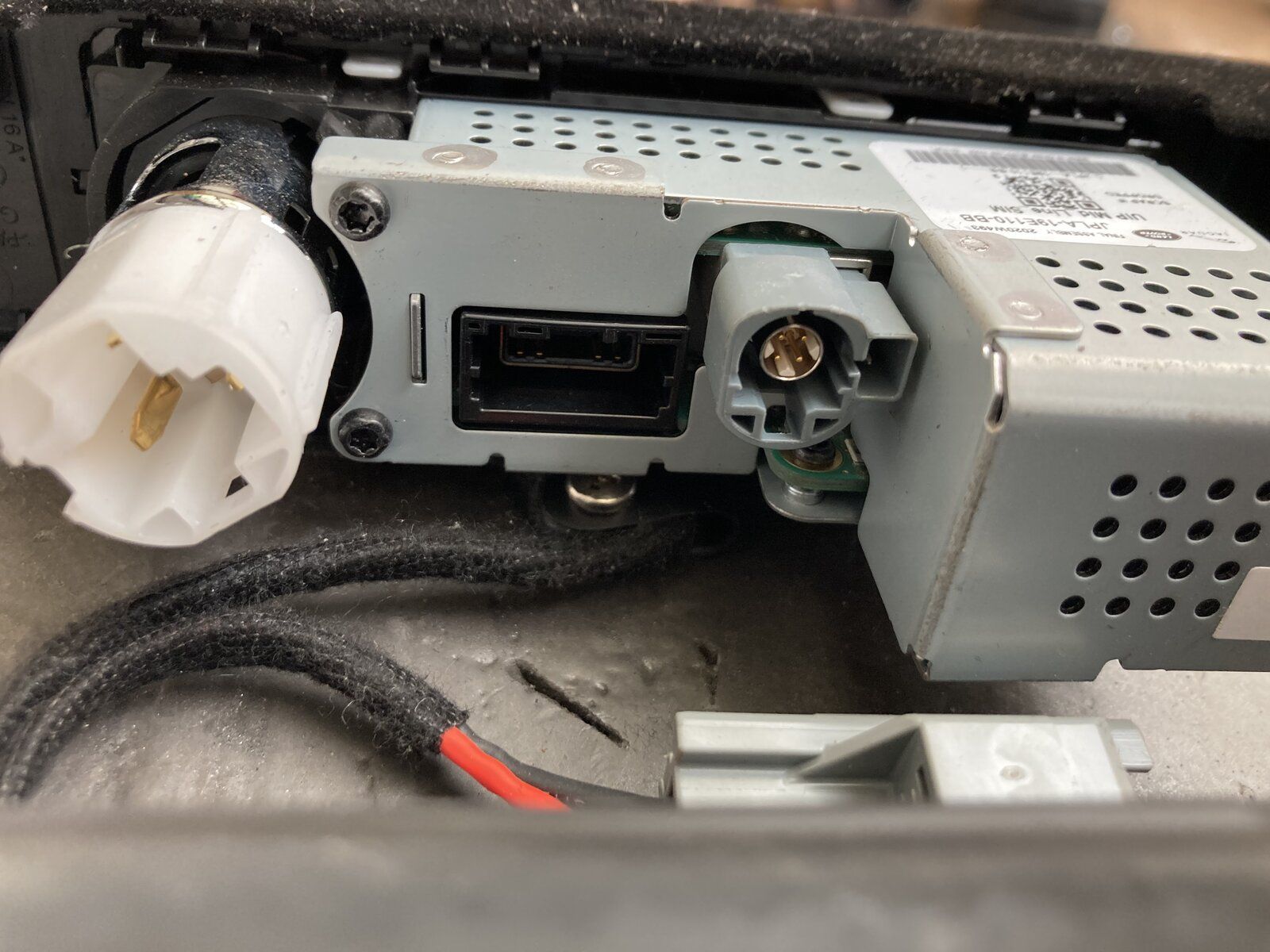

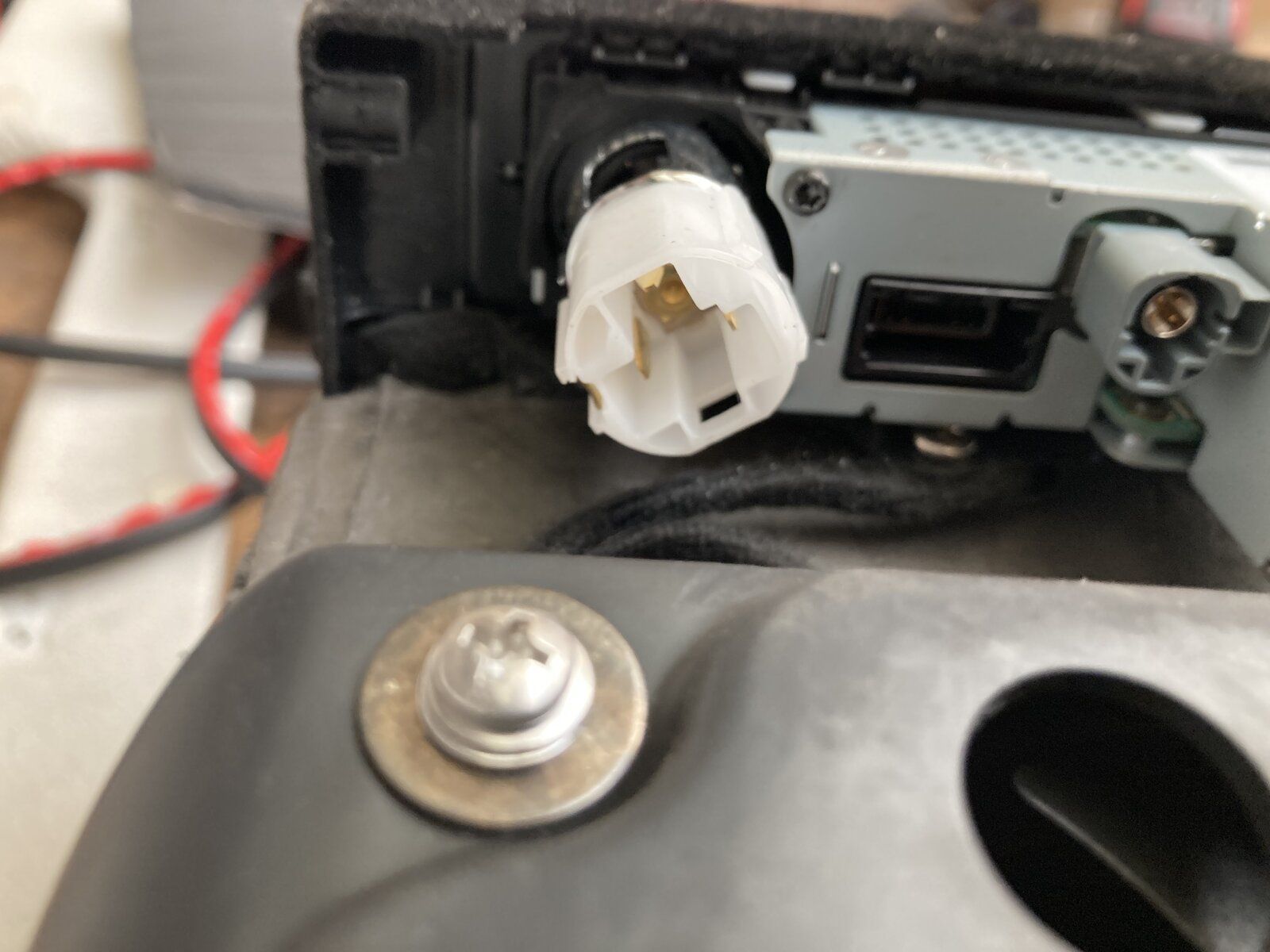

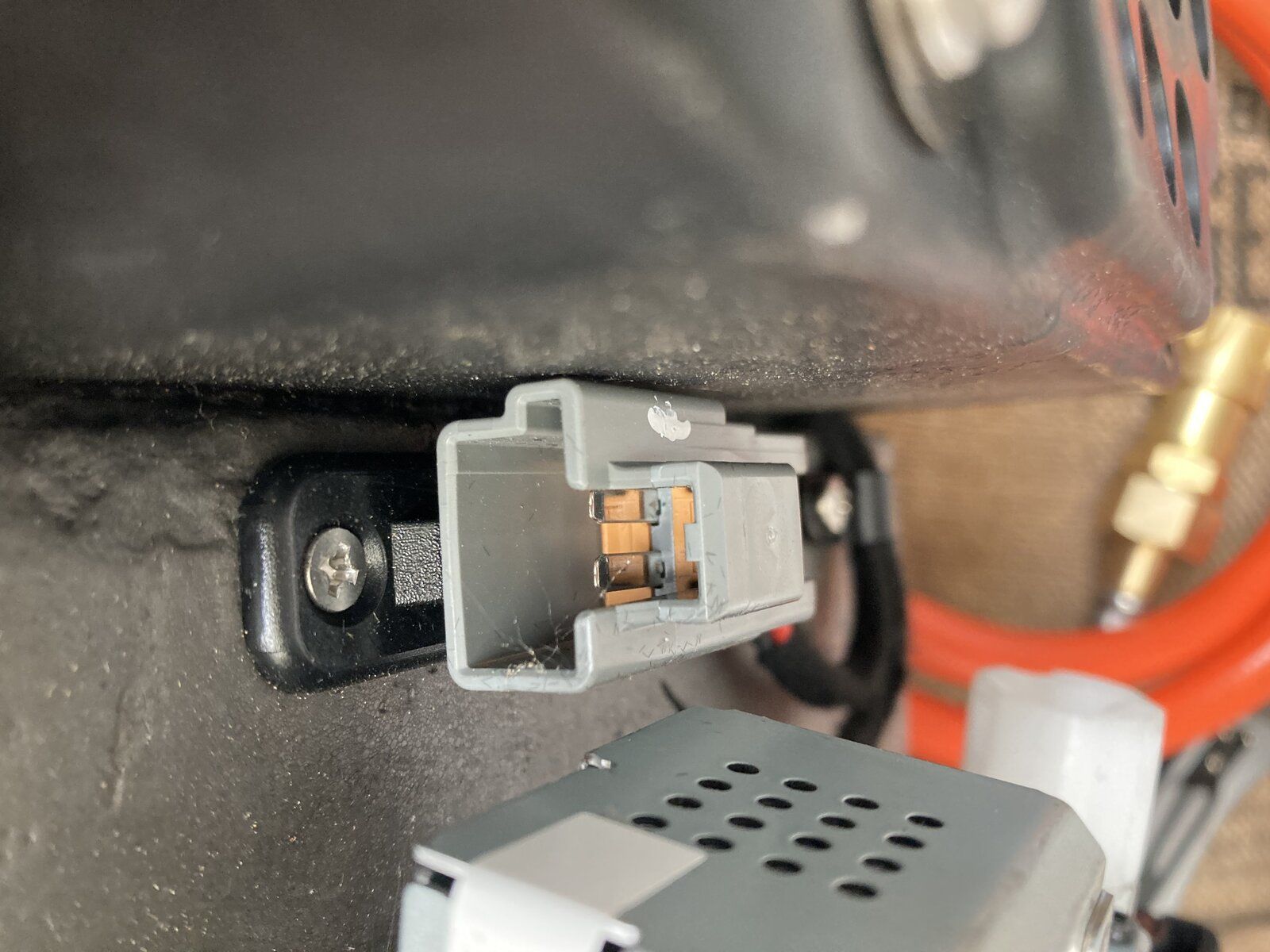

Really after the one for the main feed (picture 1), the one for the cig lighter (picture two) and the one for the USB feed (round one in picture 3)



Attachments

•

  223.7 KB · Views: 93

payydg

Well-Known Member

• Jul 4, 2022

• #2

Hmmmm managed to **** up the photos but you get the idea



M

myfirstl322

Well-Known Member

• Jul 10, 2022

• #3

Deutsch.

https://uk.rs-online.com/web/b/deutsch/connectors/



gstuart

D3 Grandad

Full Member

• Jul 10, 2022

• #4

Hi @payydg

are these any help to u , Plse let me know if I can also help any further

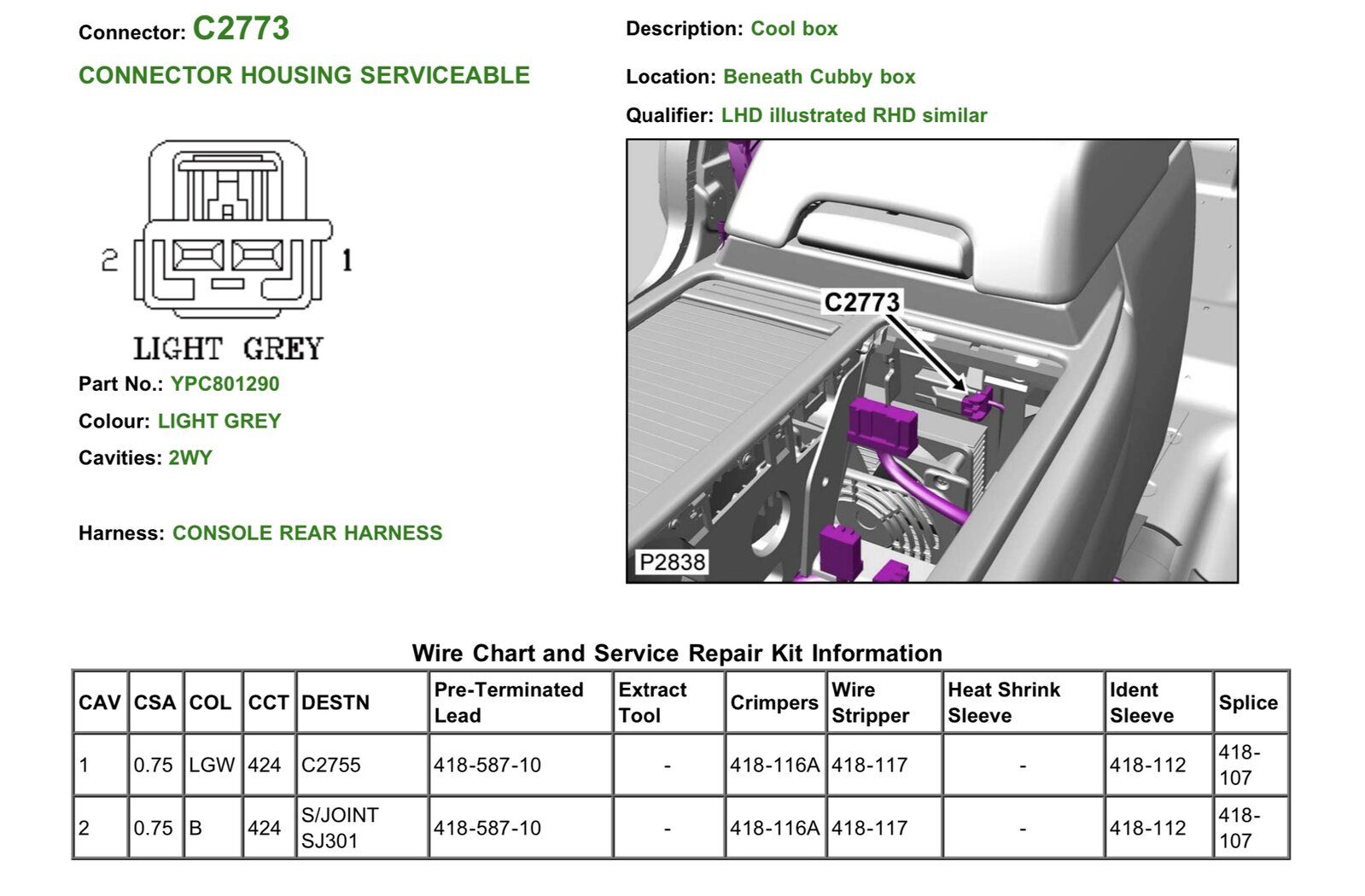

plus I’ve got part number YPC801290 for that grey connector which I think is in ur first picture but not 100%

is for the early 2005 cool boxes , however after some extensive searching I can’t find the other connector , I’m wondering if u have a very new cool box from a RRS

hope it helps



Last edited: Jul 10, 2022

gstuart

D3 Grandad

Full Member

• Jul 10, 2022

• #5

Plus after some searching the cool box wiring loom is part number YMH500811

also see there are a few of these looms on eBay

https://www.ebay.co.uk/itm/225034014205?hash=item3465128dfd:g:VsEAAOSwAZJirFiy

discovery 3 and RRS will be the same looms

hope that helps



gstuart

D3 Grandad

Full Member

• Jul 10, 2022

• #6

Plus theres the RRS forum if that also helps u

https://www.rrsport.co.uk/forum/index.php



payydg

Well-Known Member

• Jul 12, 2022

• #7

gstuart said:

Plus after some searching the cool box wiring loom is part number YMH500811

also see there are a few of these looms on eBay

https://www.ebay.co.uk/itm/225034014205?hash=item3465128dfd:g:VsEAAOSwAZJirFiy

discovery 3 and RRS will be the same looms

hope that helps

Click to expand...

Thanks pal. It’s from a 2020 RR sport. You’d think everyone would just use the same connectors.
On the plus side tested it on the bench and it’s pretty decent. Gets cold fast.



gstuart

D3 Grandad

Full Member

• Jul 15, 2022

• #8

payydg said:

Thanks pal. It’s from a 2020 RR sport. You’d think everyone would just use the same connectors.
On the plus side tested it on the bench and it’s pretty decent. Gets cold fast.

Click to expand...

ur so welcome and indeed always frustrating where so many different connectors are used

great it works ok and is an easy install



payydg

Well-Known Member

• Jul 16, 2022

• #9

gstuart said:

ur so welcome and indeed always frustrating where so many different connectors are used

great it works ok and is an easy install

Click to expand...

It seems a lot of effort just to have a cold can of coke but wouldn’t be a Land Rover owner without constant ongoing projects



kermit_rr

Very

Full Member

• Jul 16, 2022

• #10

I'm not sure it matters what they are called, i usually refer to them collectively as 'broken' or sometimes 'bastids'
