Evening,
I'm still going through the absolute mess of wiring on my newly purchased 110. Can anyone guide me in the right direction on which wires should go where on the fuel Sender. I've got a dark green and black wire and a ground wire but I'm not sure which way round they go.

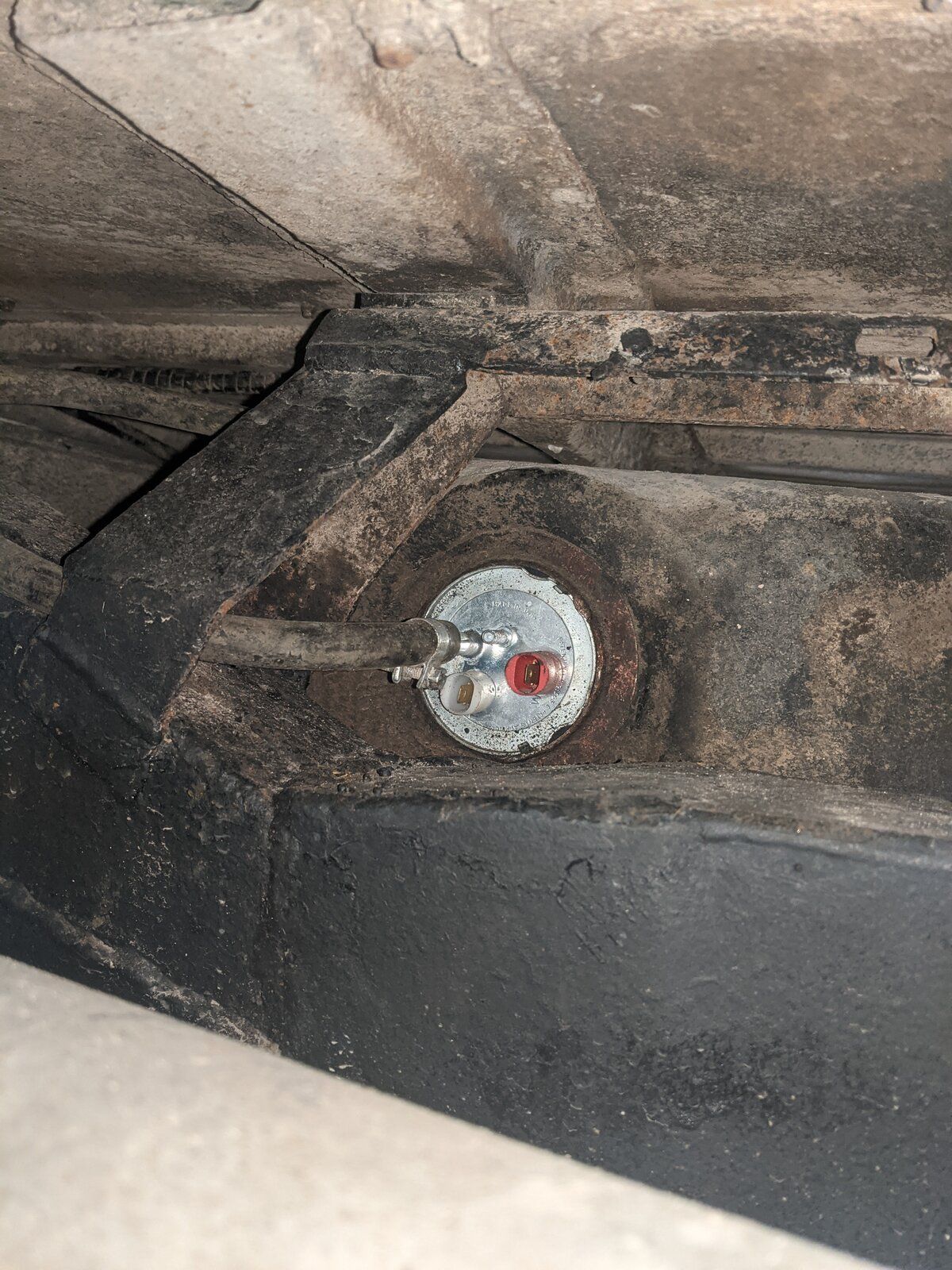

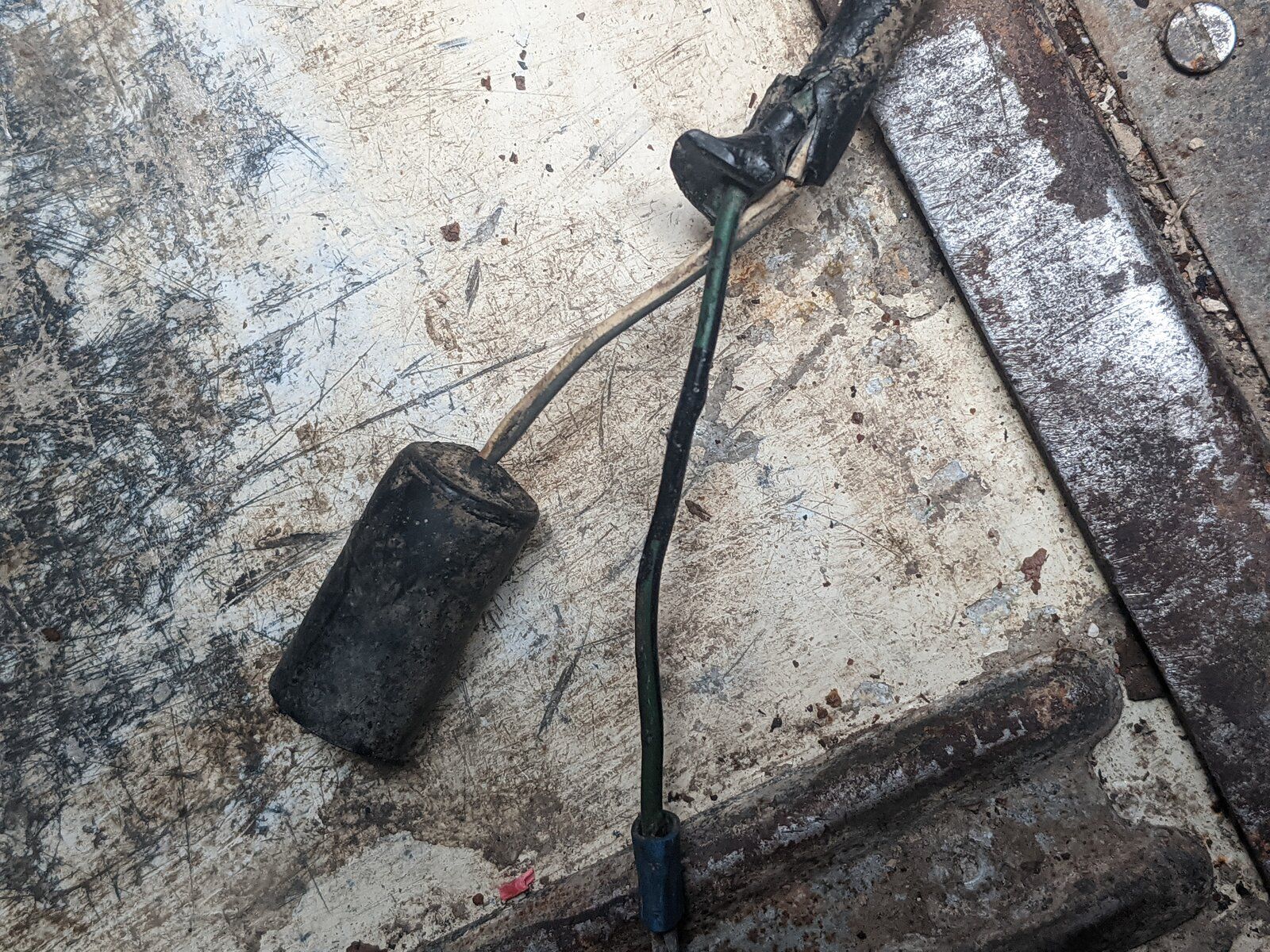

Here's a picture of the sender and the wires.

Thanks



Attachments

•

  372.6 KB · Views: 172
•

  640.4 KB · Views: 159

jamesmartin

Well-Known Member

• Apr 16, 2021

• #2

need a better pic of sender



W

Wonk

Active Member

• Apr 17, 2021

• #3

Just had to take mine out this morning which looks the same. On my wiring the white wire had a red connector and went onto the red connector.
So white wire to red. Green/black wire to white.
I don't think it makes that much odds anyway. If they are wrong then then fuel gauge and low tank warning light will just behave wrong.



border

Well-Known Member

• Apr 17, 2021

• #4

if i remember correctly, when I done mine it was
3 for the fuel tank sender are plain black [earth to centre stud on the sender unit]

green/black for the fuel gauge connection

white/slate grey for the low fuel warning light on dash
this is my sender, looks same as yours.
