Some time in last two days my AC stopped working. Checked the pressure when I got home yesterday, and it was down to about 10psi.

Decided to pressurise it & do the soapy water check for leaks, but cannot find any. Yes I will be pulling a vacuum afterwards before doing a proper refill !!

So far it's held 100psi for over an hour. Any ideas why it might have suddenly dropped ?

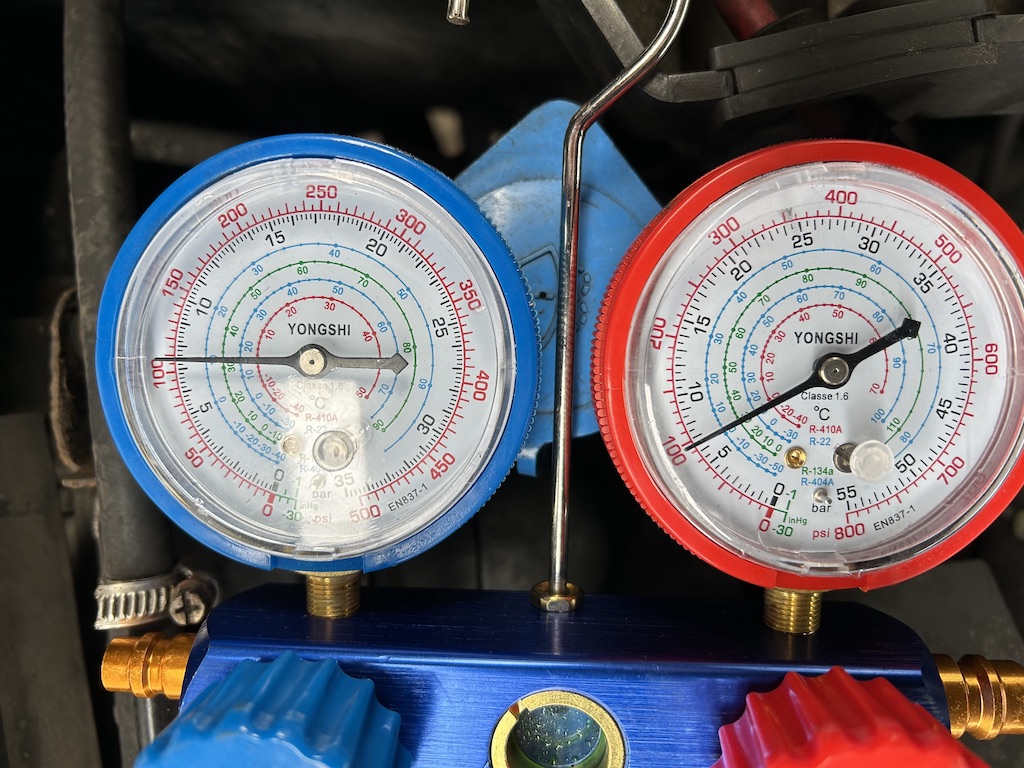

Attachments

  • IMG_0018.jpg
    274.4 KB · Views: 94
Assuming that's running pressure? I'm no expert but the low side shouldn't be that high, as far as i know. What are the pressures normality?
Dodgy valve or compressor can do that

No that's the empty system pressurised with air so I could check for leaks . . .. . . but cannot find any !!

Update: This morning it was down to 50psi, so something is leaking. Also sprayed soapy water all over the gauges & no signs of bubbles. It's clearly a slow leak, so gonna need UV dye to find it. I have vacuumed is down to -30 on gauges & see what happens today.

kermit_rr said:
Can you check the heat exchanger in the cabin?
Click to expand...
AFAIK Not easily without pulling the dash. While it was under pressure I got my step-son to listen for hissing using his younger ears - nothing !! Not sure if I can see it with glovebox removed, but will check.

pwood999 said:
AFAIK Not easily without pulling the dash. While it was under pressure I got my step-son to listen for hissing using his younger ears - nothing !! Not sure if I can see it with glovebox removed, but will check.
Click to expand...
You can get a sniffer tool for behind the dash and for checking vents but it'll need to be charged somewhat to detect a leak inside the car. 🤔

Any green oil traces around the compressor connections, the compressor casing or condenser?

Top right corner of the condenser seems to be a favorite place for pin hole leaks.
On one of mine, a recharge would last 2 weeks, the vac test at the garage showed nothing. The dye in the recharge located the pin hole.

No dye traces anywhere. My guess is Kwik**** didn't put any in when they re-charged it earlier this year. Got some dye coming this week, so will suck that in & then pressurise to see what I can find.

No signs on condenser. I removed the foam water trap when I replaced it a few years ago. Still looks like new apart from the bugs in the front !!

pwood999 said:
Update: This morning it was down to 50psi, so something is leaking. Also sprayed soapy water all over the gauges & no signs of bubbles. It's clearly a slow leak, so gonna need UV dye to find it. I have vacuumed is down to -30 on gauges & see what happens today.
Click to expand...

Thermostatic expansion valve on the bulkhead knackered so it is venting to atmosphere to protect itself?

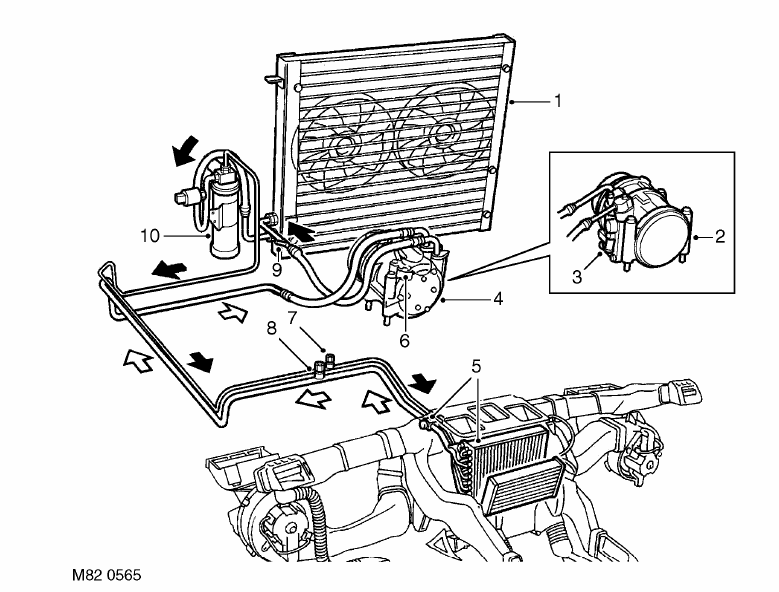

On GEMS there is a pressure relief valve in the high pressure line from the compressor to the condenser. Item 9 in the diagram.

No signs of leaks there with soapy water. I sprayed every joint & pipe, except the inaccessible evaporator. Might need a more soapy mix until I get the dye in the system.


Update. System held vacuum for 5 days with no problem, so got it re-gassed today at ProTyre. Their machine definitely knew the correct P38 gas & oil quantities, so that was good. 20min vacuum test at -1000mBar passed, and the machine proceeded to fill & eventually pressure hold test. They assured me it usually adds UV dye, although I didn't see much change on the UV bottle. We will see how long it lasts this time.

On a side note, I left my gauges with all valves closed & 100psi in them for 4 days in the garage. Gauge needles have only moved about a needle width, so they seem to be sufficiently leak free.

Wondering about buying one of these 2kg or 5kg cylinders so I can do the other family cars that I get nagged about. (My P38 project, BMW 120D & Corsa Hatch)

Need to check idler pulleys tomorrow, but getting a strange tinkling noise when AC is on. It goes away if I switch AC off, or unplug compressor.
