Got roped into replacing the front os bulkhead surport on a frends 90 300 tdi
Has to be the most polished landy i have seen

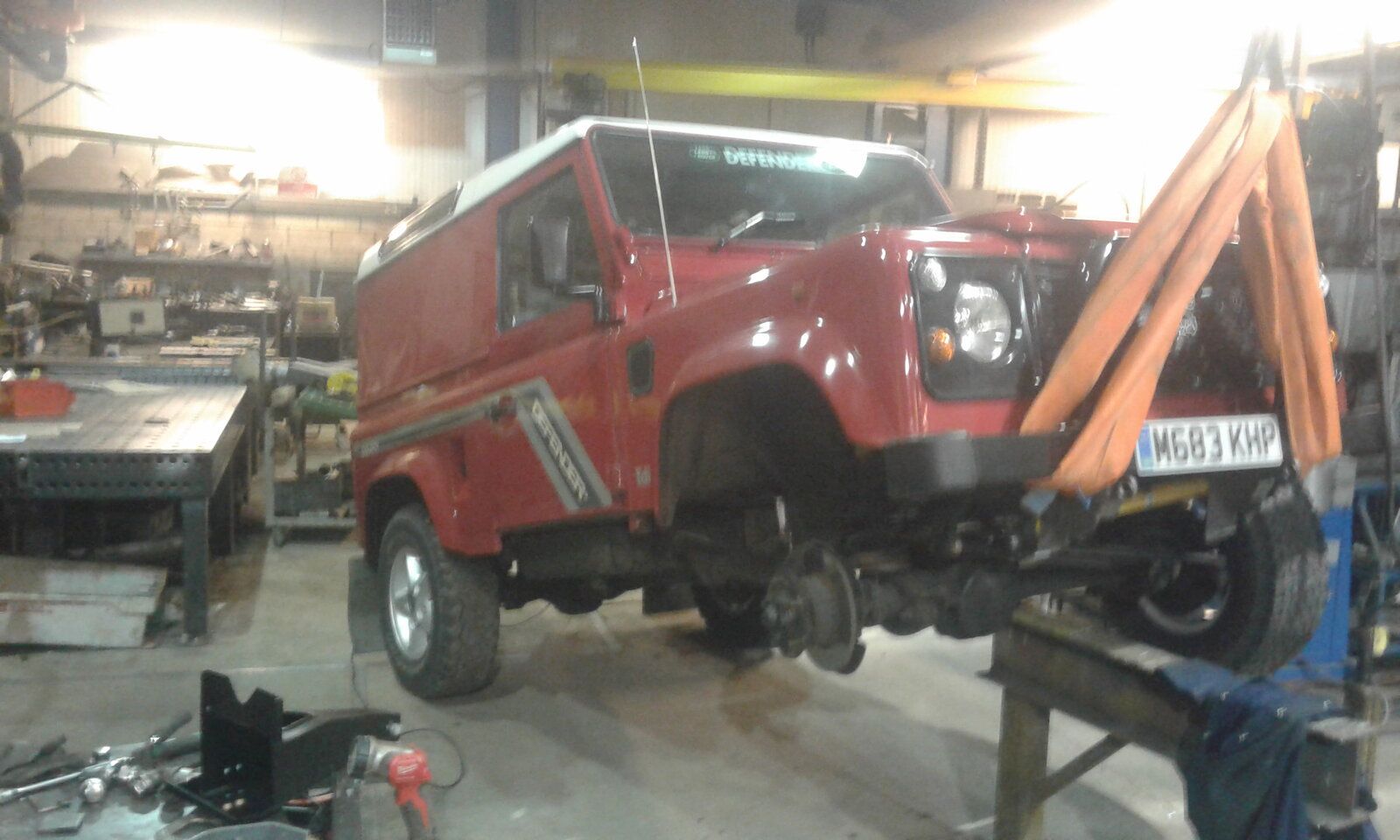

Not the normal way most lift there landys but its what i have to play with whist my shops empty of real work over the xmas hols

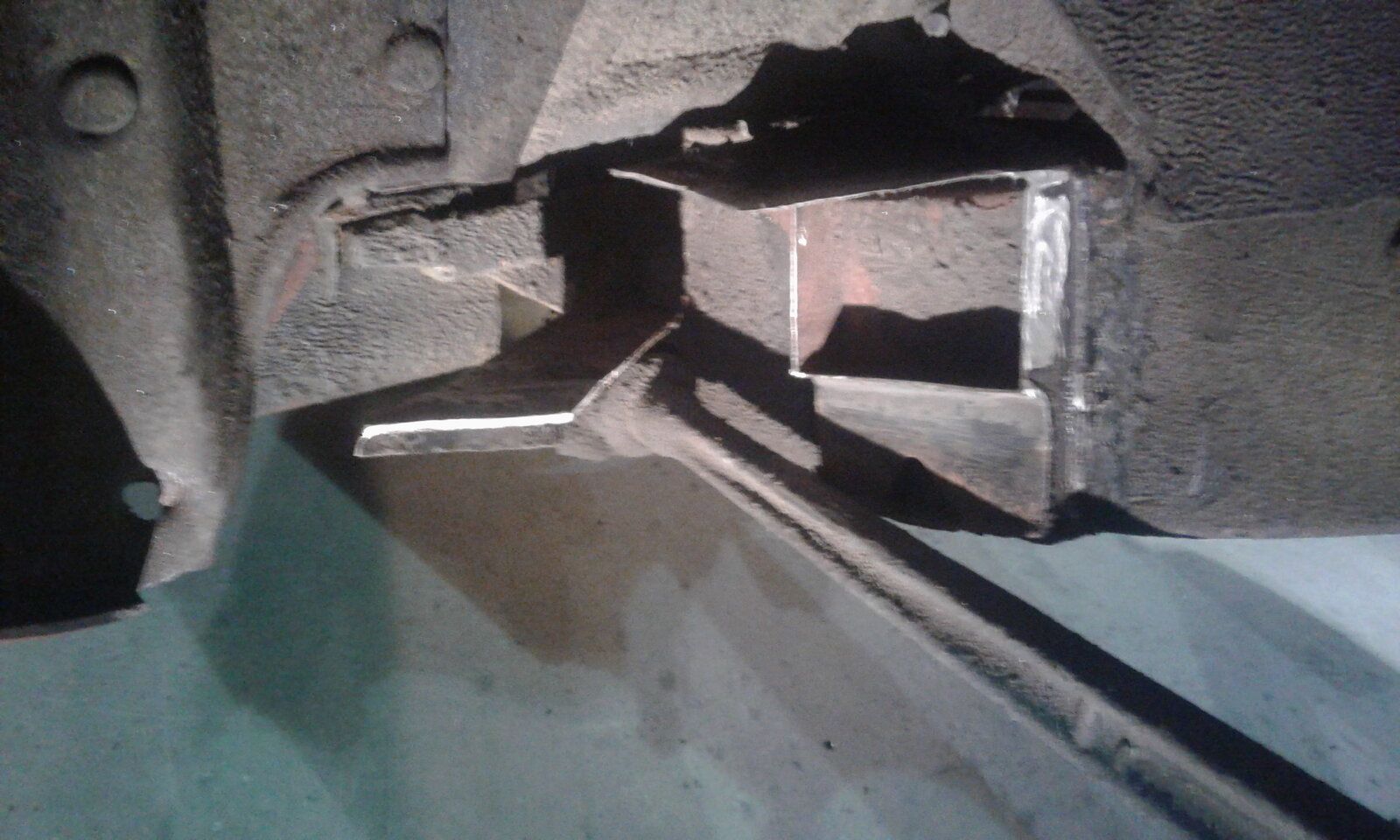

My pall made a start and cut rusty one out today ready for me to perform surgery tomarow with a welder and get new one nailed on pic of offending area ready for new outriger

What’s the point of polishing the top of the chassis is rusting away? I spend more time cleaning my chassis than any other bit of my 90 lol

post photos of the finished repair though

flat said:

What’s the point of polishing the top of the chassis is rusting away? I spend more time cleaning my chassis than any other bit of my 90 lol

post photos of the finished repair though

Click to expand...

Its about ready for a new chassis i welded a new rear member on a year or two back but the owner dosent have the space to do it which is a shame as he has the time and the skills
( industrial spana man by trade)
Finished picks tomarow night

All done . Couple of hours thismorning had the new outrigger trimmed up and welded in
Not to bad to do but owner did half the work by cutting old one out and cleaning every where ready for welding new bit wasnt the best fit and if i had been fitting it as intended by removeing all the old one instead of spliceing a bit in it would have made the hole for the bulkhead bolt 6mm to close to the chassis rail
Also the end of the new outriger was to long and needed 6mm triming off to miss the bottom of the wing/bodywork

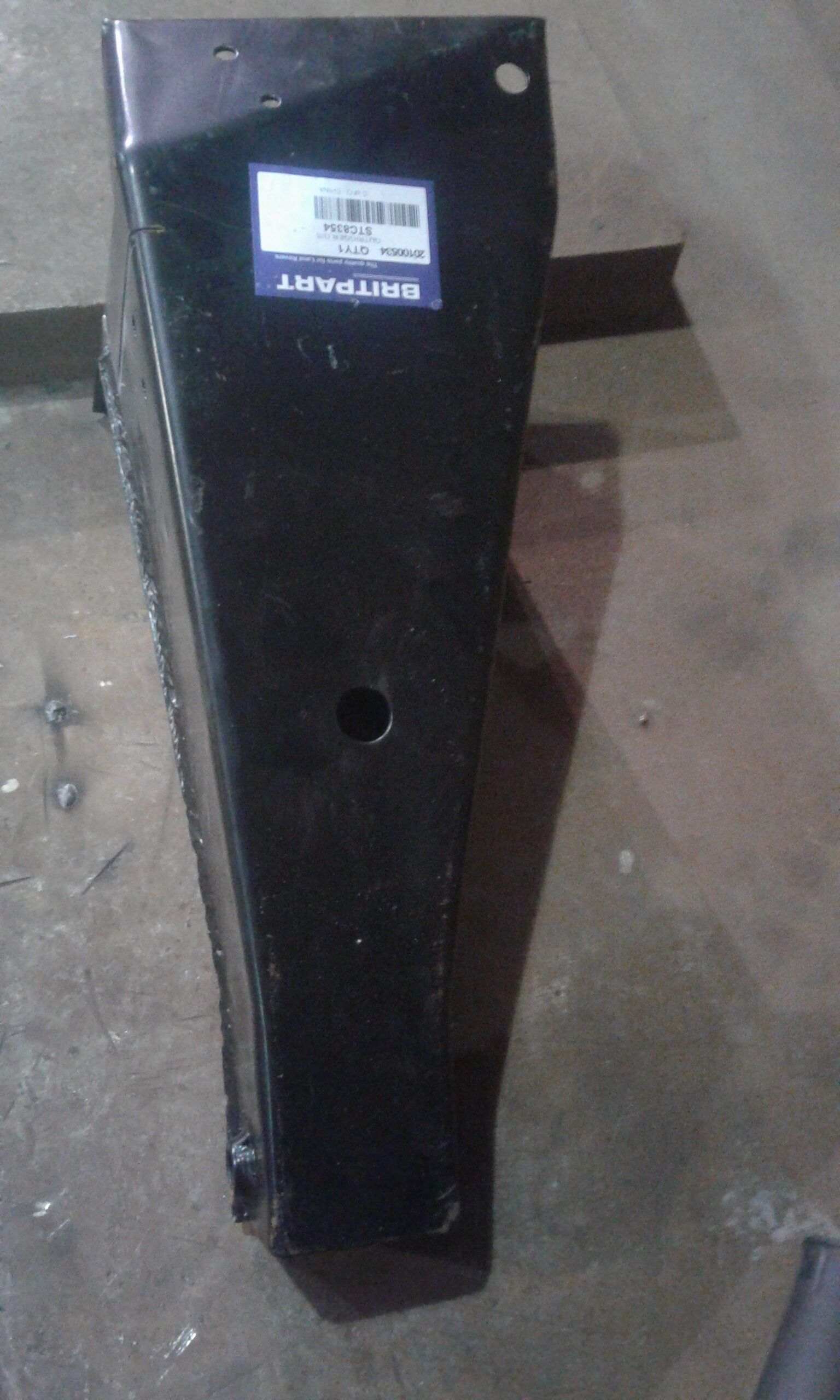

So maybe hole for bolt was 6mm out ? Well it was britpart

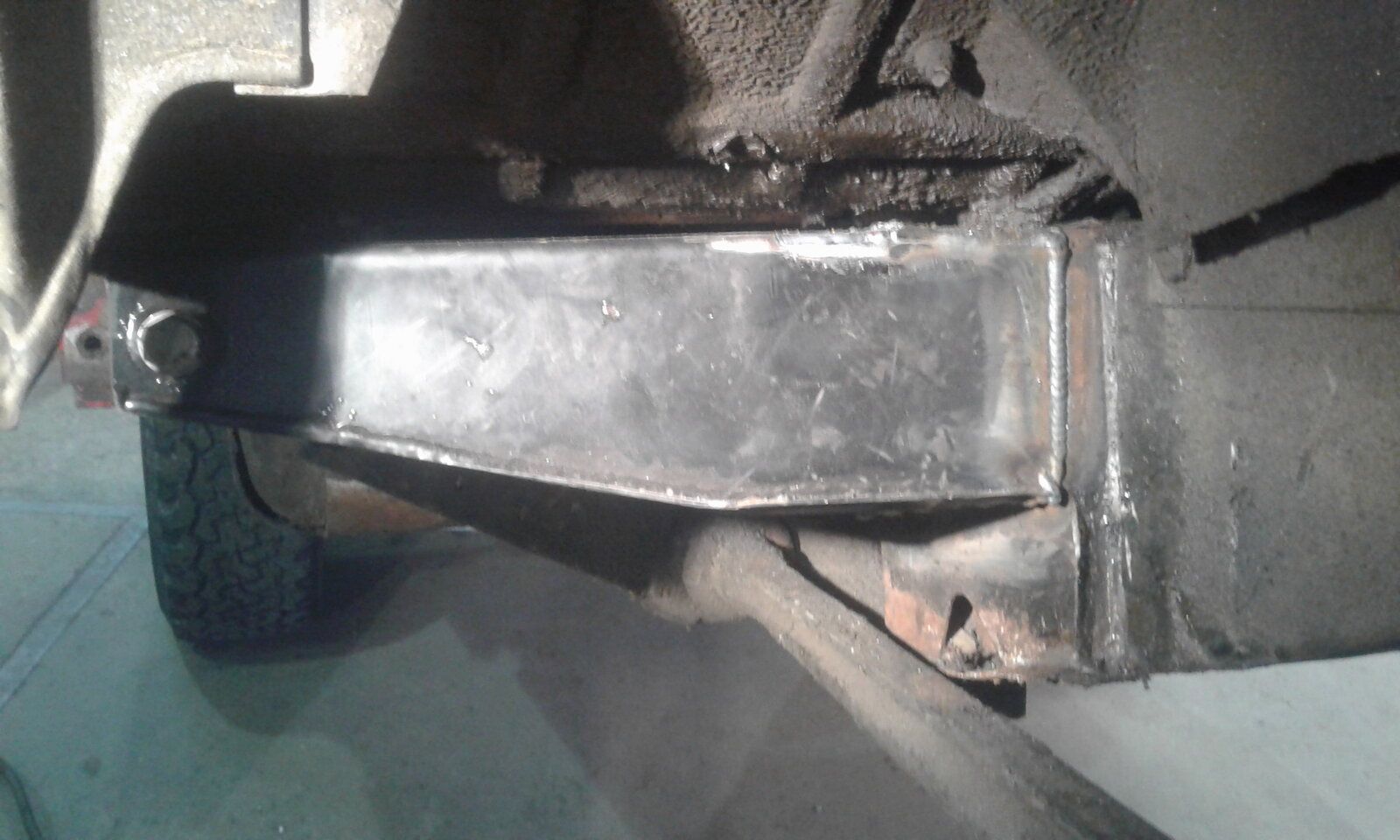

Pic of finished job should last rest of chassis out . Footwells will be next for some tin work
