Hi.

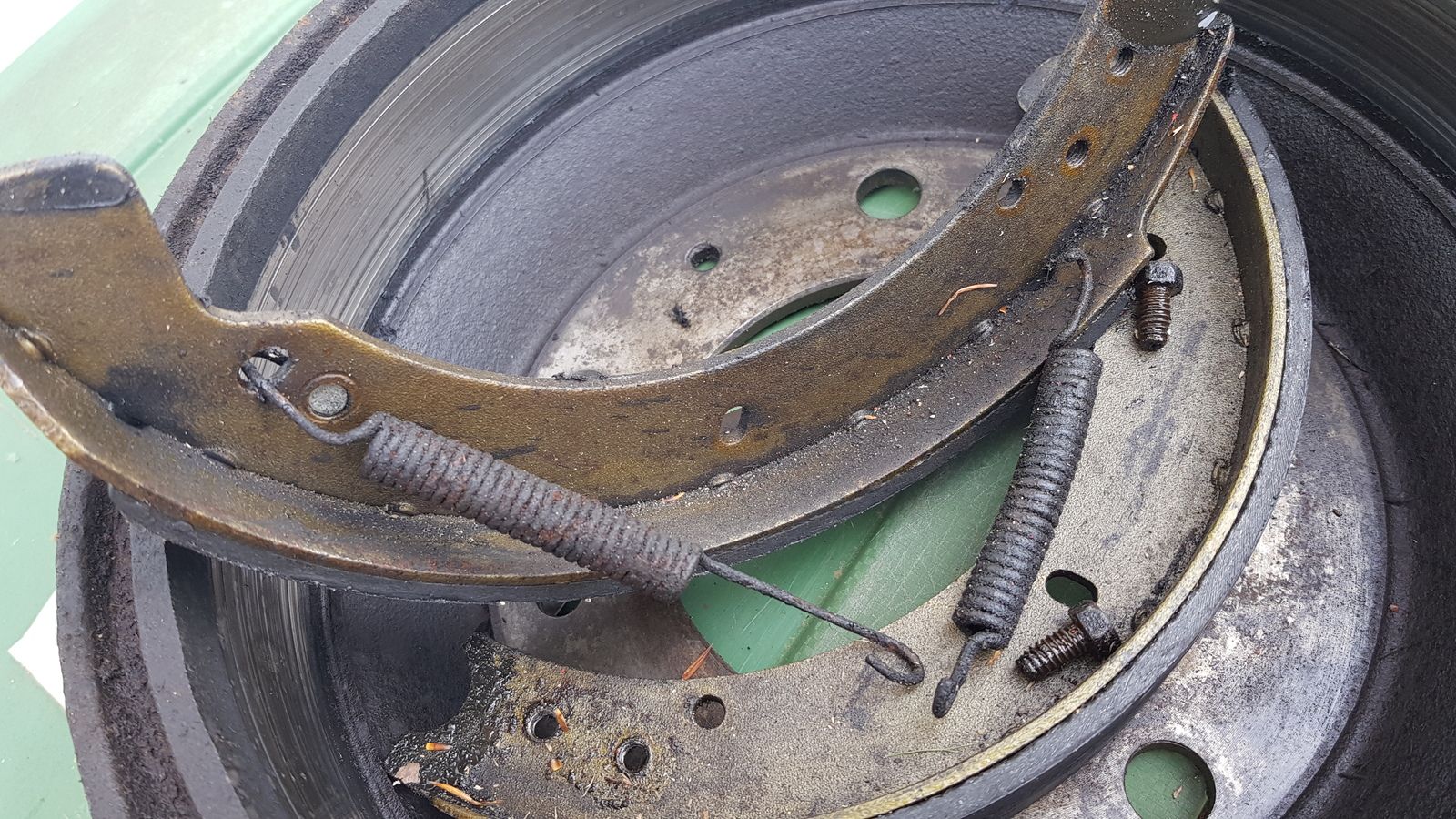

I'm slowly going through our 1989 90 and fixing problems. I've got to the rear brakes and have done the offside. The nearside, however, is 'wet' inside.

The previous owner passed on a full set of spare parts for the rear drums, including new cylinders. On inspection both cylinders look fine, although the rubber is slightly grey on the nearside, but no brake fluid leaks.

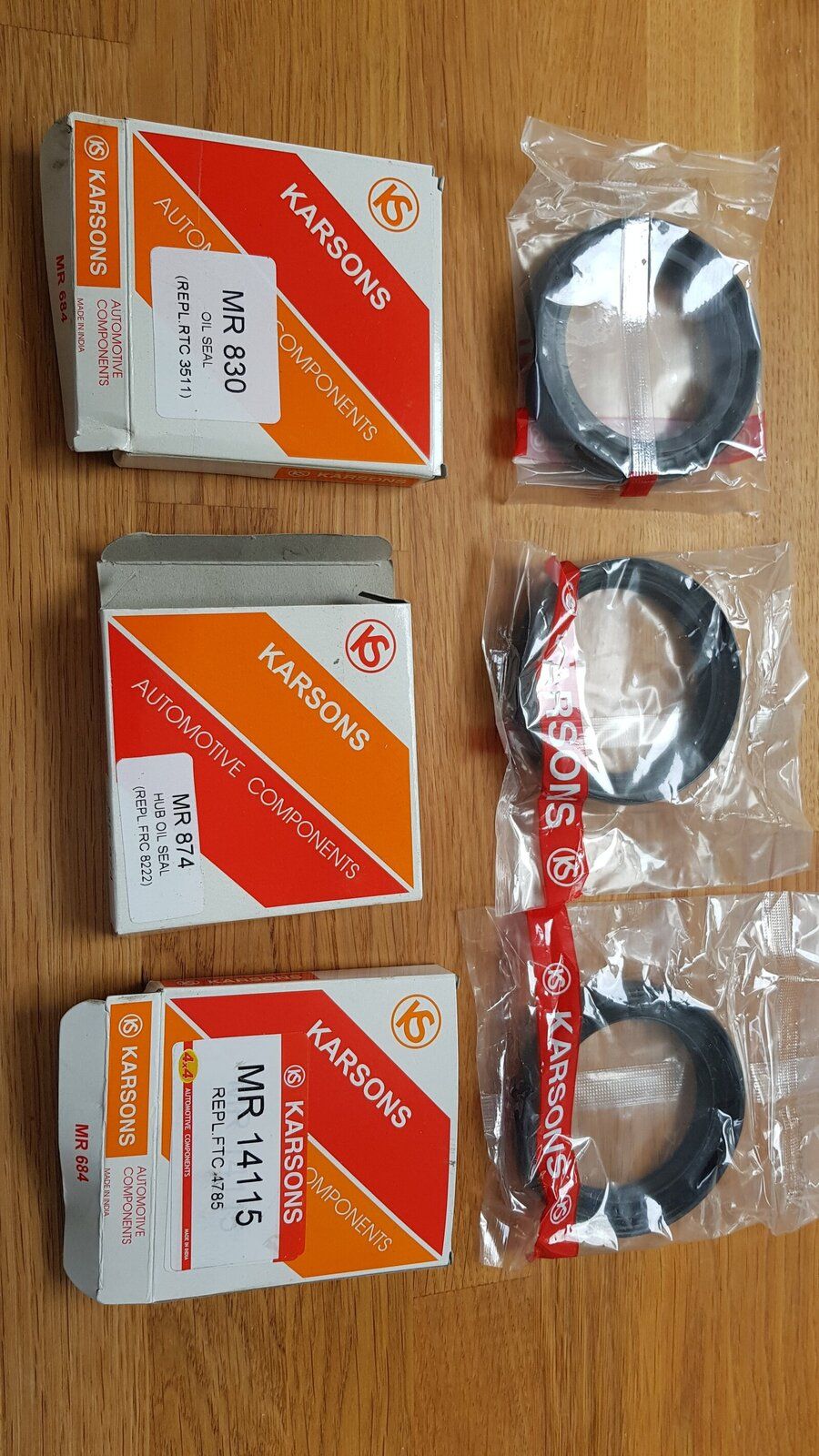

The previous owner also included a set of 3 oil seals, which I suspect is the real problem with the 'wet'. The liquid smells and looks oily rather than 'brakey'. There's no obvious leak around the axel either, so can't tell where it's coming from. So, what is the most likely problem and what parts have I got. The three seals are different to each other.

3 photos below, seals at the end. Cheers!

DMB24 said:

Hi.

I'm slowly going through our 1989 90 and fixing problems. I've got to the rear brakes and have done the offside. The nearside, however, is 'wet' inside.

The previous owner passed on a full set of spare parts for the rear drums, including new cylinders. On inspection both cylinders look fine, although the rubber is slightly grey on the nearside, but no brake fluid leaks.

The previous owner also included a set of 3 oil seals, which I suspect is the real problem with the 'wet'. The liquid smells and looks oily rather than 'brakey'. There's no obvious leak around the axel either, so can't tell where it's coming from. So, what is the most likely problem and what parts have I got. The three seals are different to each other.

3 photos below, seals at the end. Cheers!

View attachment 177266 View attachment 177267
View attachment 177265

Click to expand...

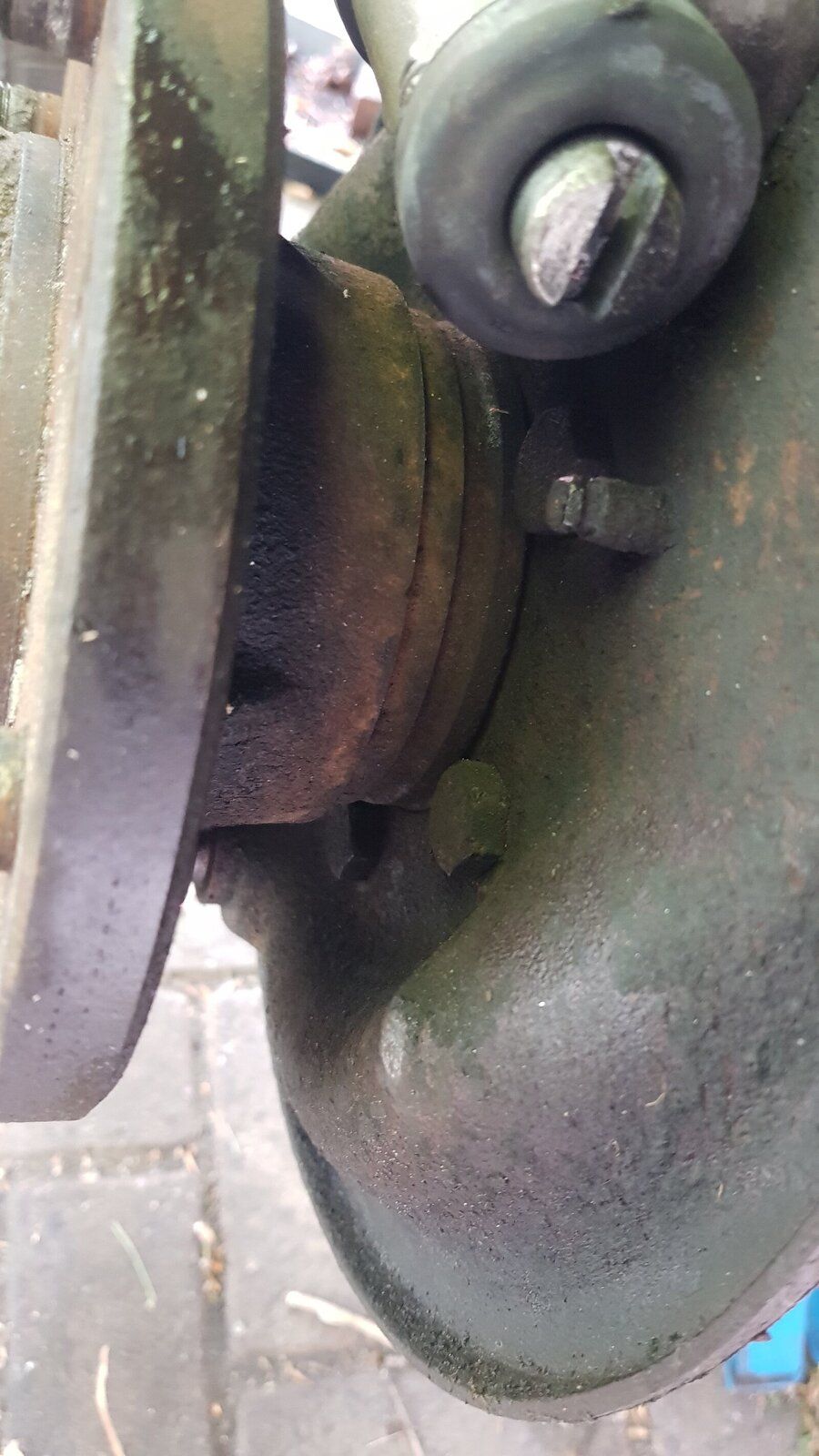

Leaking out of the hub. The big oil seals are for that. Check your axle breather first, it may dry up if that is unblocked.

Turboman said:

Leaking out of the hub. The big oil seals are for that. Check your axle breather first, it may dry up if that is unblocked.

Click to expand...

Fascinating! The breather is 100% blocked. Many thanks.
