Hello

anyone got a drawing showing the pipework hose and non return valve from the brake servo to the vac pump?

i am having brake issues, replaced the vac pump and new hose, the non return valve i believe is the white thing on the end of the hose that goes into the brake servo, i just want to check i have plumbed it all in correctly

many thanks

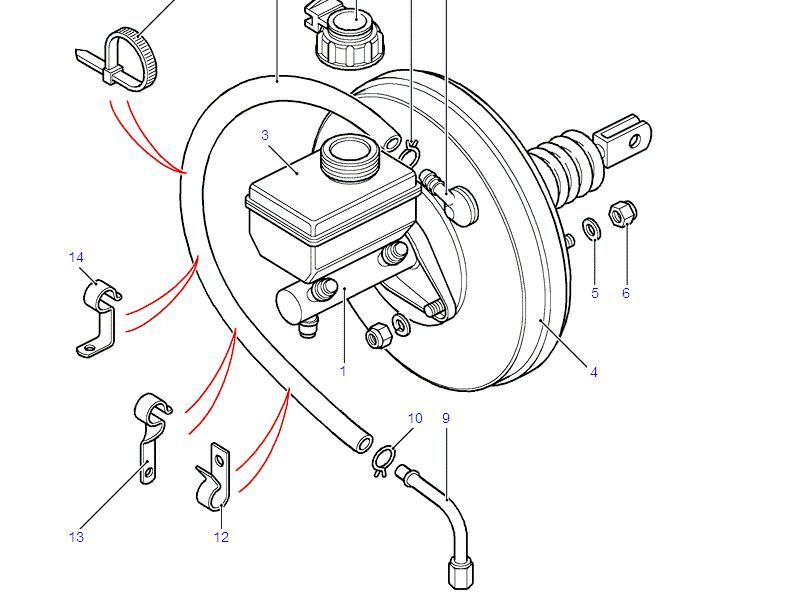

there's 4 different servo's but the plumbing is more or less the same on all of them.

redhand said:

there's 4 different servo's but the plumbing is more or less the same on all of them.

Click to expand...

thanks, just wanted to make i had the non return valve fitted as per drawing, really can't make a mistake:doh::doh:
