AH-4x4

Member

• Jul 12, 2021

• #1

Hi,

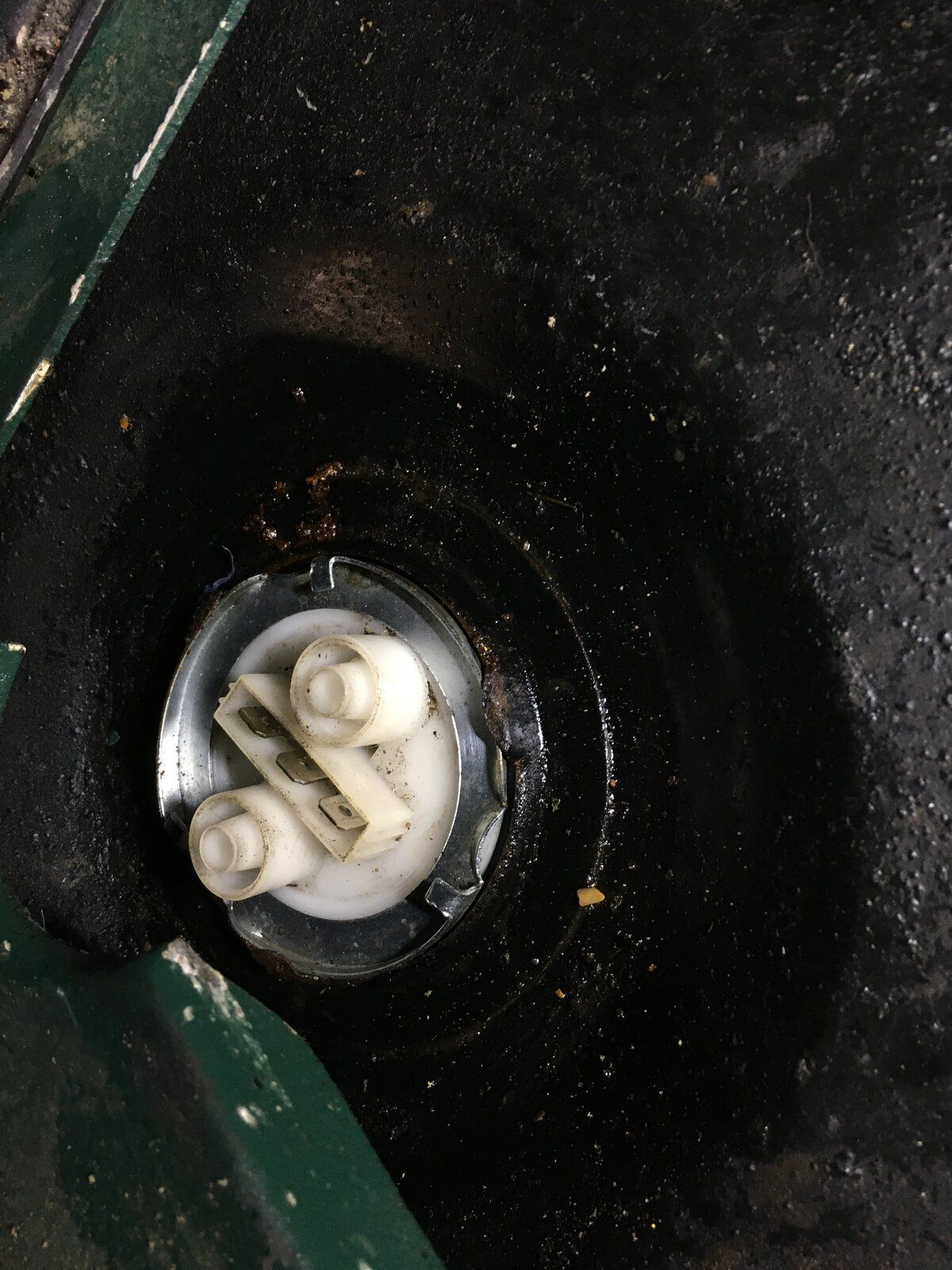

So, following filling up yesterday I noted diesel leaking onto the floor... it turned out to be diesel coming out of the fuel sender meeting the tank. I took it all apart, cleaned each surface and refit it but the tabs on the tank that hold the fixing plate on just bend up... poor design in my view.

Does anyone know of a fix to this issue... ie making the tabs not bend up, or has anyone in the past got an aftermarket Alu or steel tank made up that doesn’t use them fragile tabs?



doriz

Well-Known Member

• Jul 12, 2021

• #2

I feel your pain. This happened to me on a tour of Devon and the tank dropped its contents to the tank fill level. If the tangs that hold the fuel sender in are goosed you’re looking at a new tank. The design is cobblers tbh.



doriz

Well-Known Member

• Jul 12, 2021

• #3

If there is some kind of magic fuel resistant putty out there let me know as I haven’t fixed my problem yet. I just don’t ever put more than a third of a tank in



AH-4x4

Member

• Jul 12, 2021

• #4

I am hoping someone would have a great answer to this issue, these tabs are just rubbish, what were LR thinking of when designing the tank.



L

lynall

Well-Known Member

Full Member

• Jul 12, 2021

• #5

PU sealant is good gear, sikaflex and the like, but does take some time to sure fully.



doriz

Well-Known Member

• Jul 12, 2021

• #6

lynall said:

PU sealant is good gear, sikaflex and the like, but does take some time to sure fully.

Click to expand...

@lynall that’s great but if the tangs are worn it’s not achievable. The access to that area is very small unless you have a Beadle hand. The best way would be to fit it and seal it before fitting the tank but you cannot get it in for the chassis



H

Hicap phill

Well-Known Member

• Jul 12, 2021

• #7

doriz said:

If there is some kind of magic fuel resistant putty out there let me know as I haven’t fixed my problem yet. I just don’t ever put more than a third of a tank in

Click to expand...

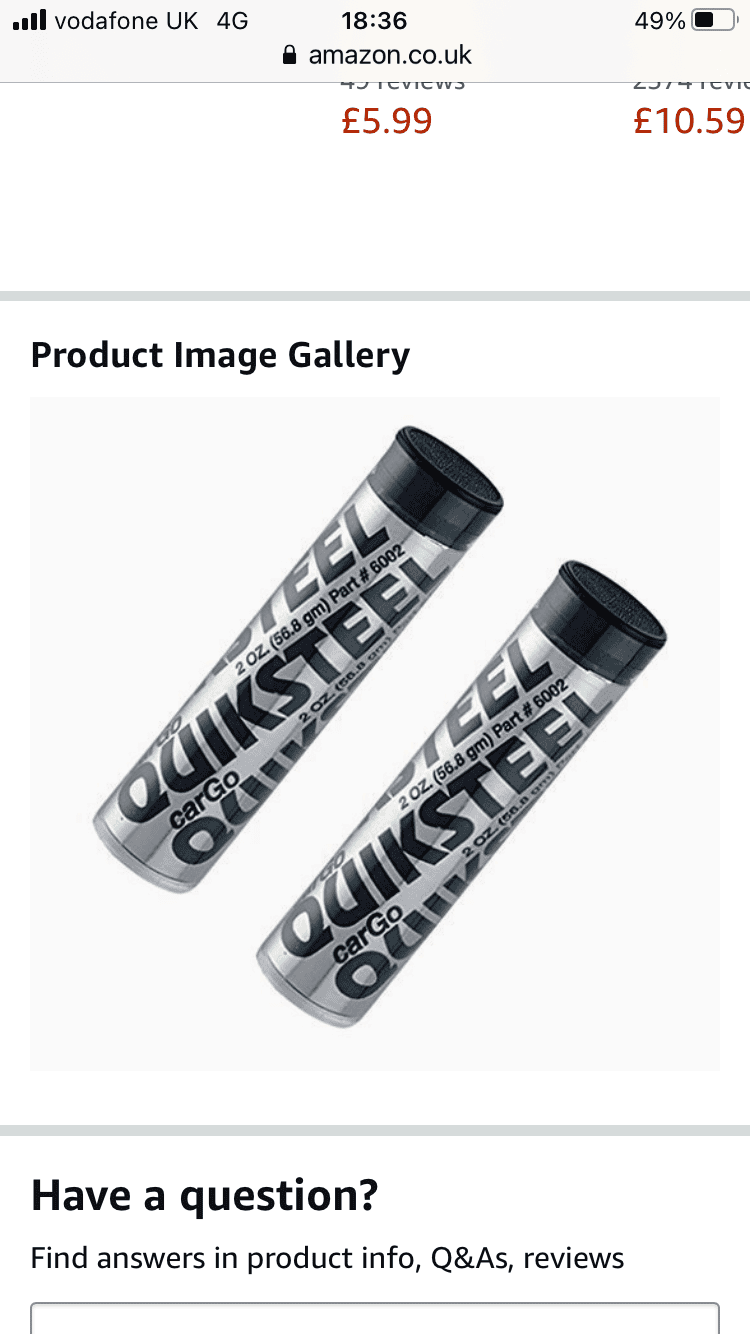

There is an epoxy putty that works. I pierced my tank & still there.
Ask me Friday if you want to know what it’s called



doriz

Well-Known Member

• Jul 12, 2021

• #8

Hicap phill said:

Ask me Friday

Click to expand...



Last edited: Jul 12, 2021

H

Hicap phill

Well-Known Member

• Jul 12, 2021

• #9

doriz said:

Have you got a man and do they have a tube?

Click to expand...

I have a the info... see I like a photo



Attachments

•

  76.8 KB · Views: 128

Cavey_P38

Well-Known Member

Full Member

• Jul 13, 2021

• #10

Hicap phill said:

I have a the info... see I like a photo

Click to expand...

Perfect cheers
Phil, my new tank is leaking at the sender have had it on and off couple of times now.. so that will be the stuff i think

Cheers
Hope your well
