2

200disco

New Member

• Dec 30, 2012

• #1

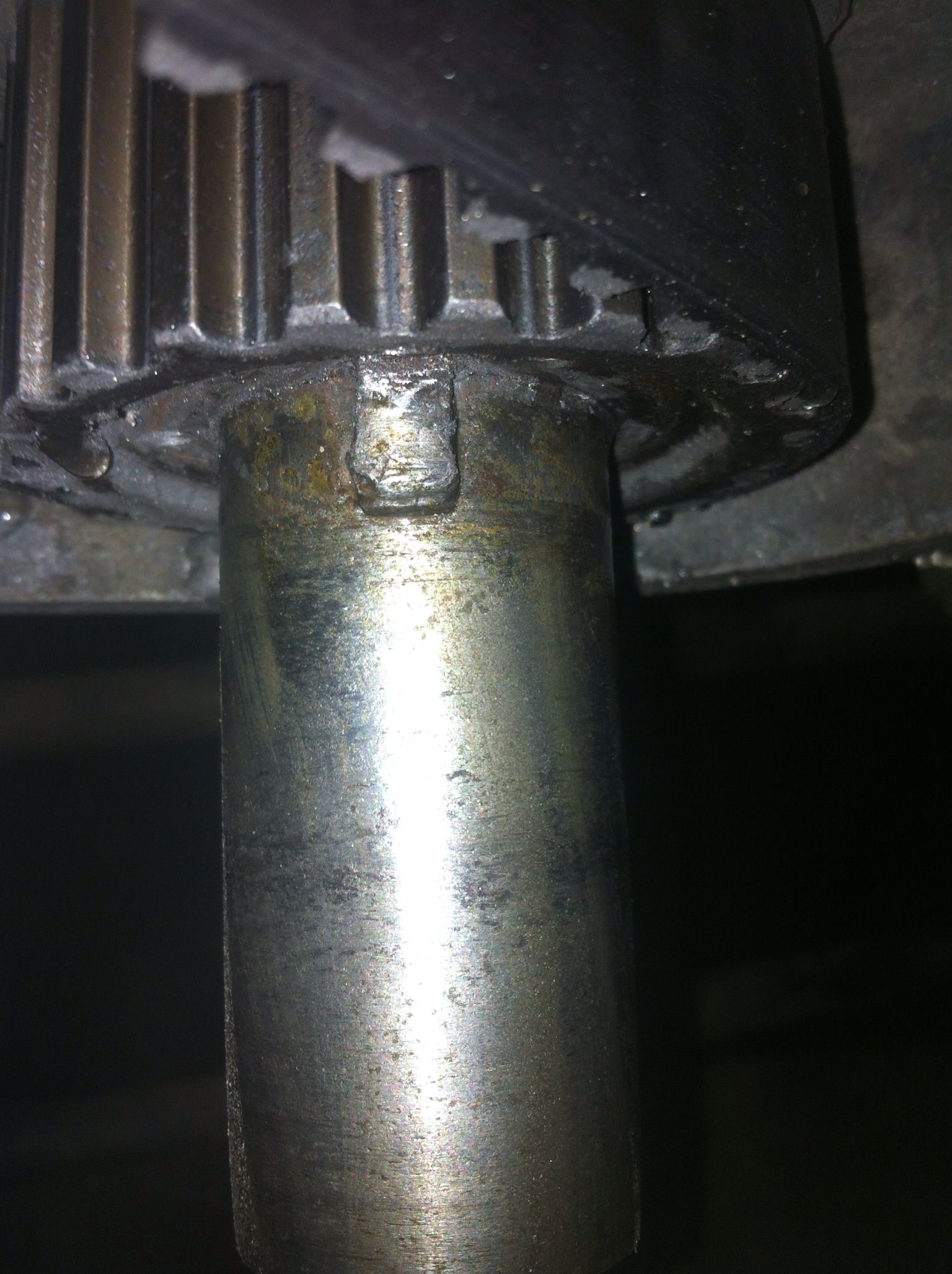

Hi my bottom pully bolt has fell out due to the pulley/damper being damaged my question is I need to remove the woodruff key so do I need to remove the timing pully as it seems to be on the pulley woodruff key???



Attachments

•

  930.3 KB · Views: 1,152

Last edited: Dec 30, 2012

freelance

Well-Known Member

• Dec 30, 2012

• #2

looking at the photo i think you'll need to remove timing pulley, but i thought the key for the crank pulley could be changed easily, but its about eight years since i did one.



2

200disco

New Member

• Dec 30, 2012

• #3

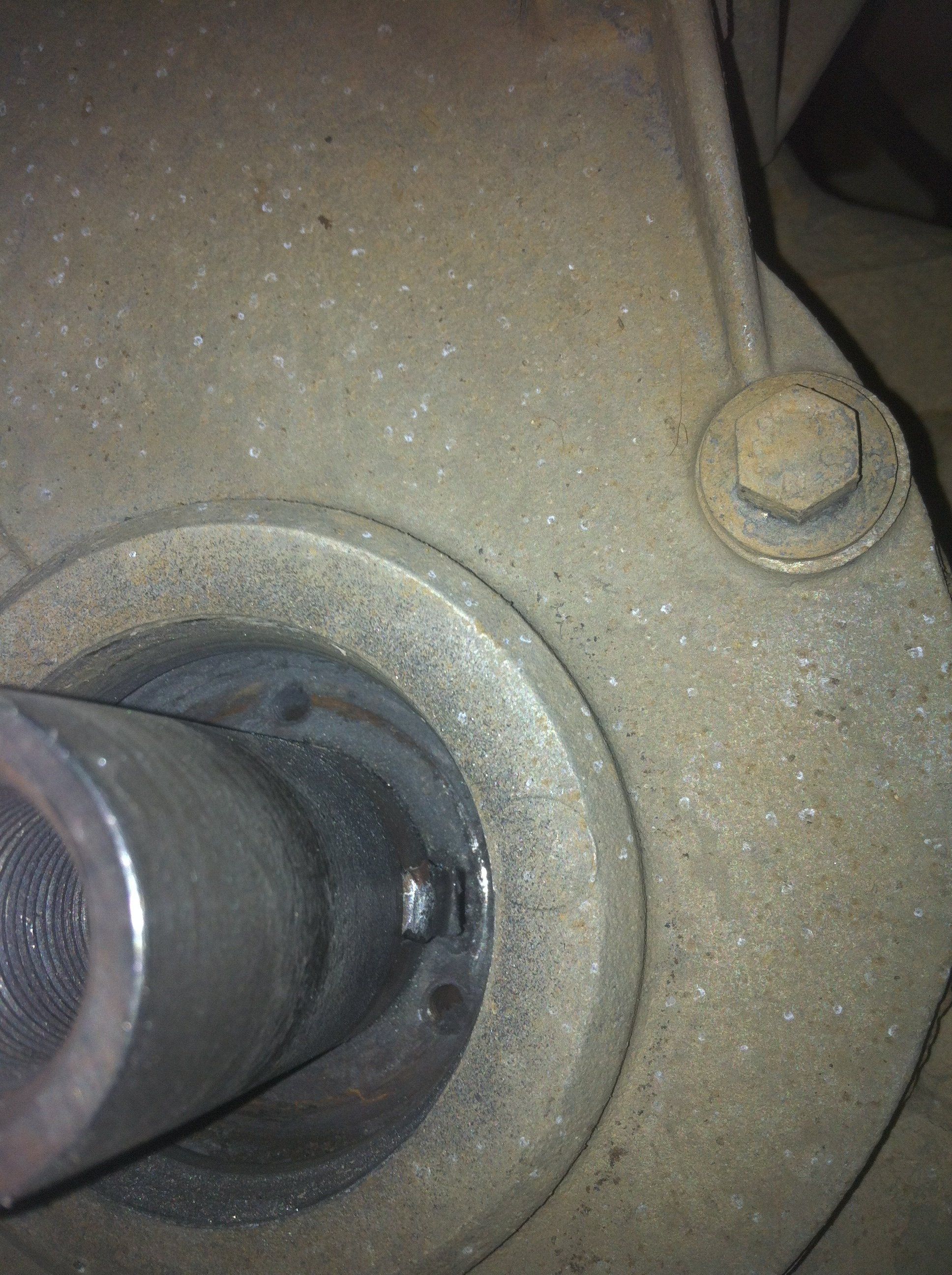

I have removed front plate now and looks like timing pulley needs to come off :-(



Attachments

•

  348.1 KB · Views: 670

landowner

Pensioner Pete

Full Member

• Dec 30, 2012

• #4

200disco said:

I have removed front plate now and looks like timing pulley needs to come off :-(

Click to expand...

Just peg the pump and crank and undo tensioner, it should come off easy.



2

200disco

New Member

• Dec 30, 2012

• #5

Is there away of pegging the flywheel or do I need the peg tool kit?



landowner

Pensioner Pete

Full Member

• Dec 30, 2012

• #6

200disco said:

Is there away of pegging the flywheel or do I need the peg tool kit?

Click to expand...

I use a drill bit that fits nicely in the hole cant remember the size but a bolt will do as long as its pretty tight and not loose. Thats for both crank and pump



2

200disco

New Member

• Dec 30, 2012

• #7

Ok cheers will give it ago tomarrow



Freelaner

Landy Driver

• Feb 10, 2013

• #8

Anyone got a spare pulley and damper in sheffield area, one needed today



Freelaner

Landy Driver

• Feb 10, 2013

• #9

:bump2:



Browny90

Active Member

• Feb 15, 2013

• #10

I think off the top of my head its a 6mm drill bit that fits in the pump etc..



F

ferretboy

Active Member

• Feb 15, 2013

• #11

Pump pin is 9mm , drill bit!!



2

200disco

New Member

• Feb 25, 2013

• #12

Cheers all sorted now I used an Allen key :-/



Browny90

Active Member

• Feb 26, 2013

• #13

good drills

or.. good allen key



Bizgsi

New Member

• Feb 26, 2013

• #14

Looks like u got off lightly there mine took a chunk out the shaft
