I was wondering if anyone could please tell me the correct procedure for a instrument cluster self test on a 4.2 RR l322 2006 model ?
I have looked at other procedures and tried them but they dont seem to work for some reason ?

I get as far as "Check Control Ok" but thats it ?

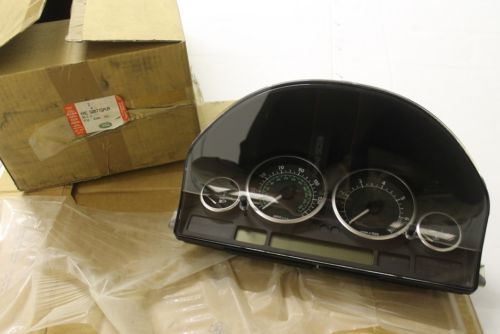

i have attached a picture of a instrument cluster the same as mine as im sure you are aware there are different versions

many thanks



Attachments

•

  21 KB · Views: 373

Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

• Jan 16, 2014

• #2

That looks like the 2002-2005 BMW IKE Instrument Cluster....(Scratch that - maybe not)

The BMW Test is to press and hold the Check Control Button for 7 seconds....then select Test Nr. 21...add the digits together, and then select Test Nr. 1 and enter that number...this unlocks the diagnostics....

I have a Display Self Test Vid on youtubbbbeeee - https://www.youtube.com/watch?v=aL9DD0p-eyM

but yours is the Ford designed version from 2006...which has a different cluster and doesn't run on the BMW system



Last edited: Jan 16, 2014

D

donp38

Well-Known Member

• Jan 16, 2014

• #3

St. What a fab response...stunning...



2.0_hippo

Well-Known Member

• Jan 17, 2014

• #4

Yep thats the later facelift dash



anorakmark

Active Member

• Jan 19, 2014

• #5

Saint.V8 said:

That looks like the 2002-2005 BMW IKE Instrument Cluster....(Scratch that - maybe not)

The BMW Test is to press and hold the Check Control Button for 7 seconds....then select Test Nr. 21...add the digits together, and then select Test Nr. 1 and enter that number...this unlocks the diagnostics....

I have a Display Self Test Vid on youtubbbbeeee - https://www.youtube.com/watch?v=aL9DD0p-eyM

but yours is the Ford designed version from 2006...which has a different cluster and doesn't run on the BMW system

Click to expand...

Very interesting youtube link
