backinblack

Well-Known Member

Full Member

• Oct 29, 2022

• #1

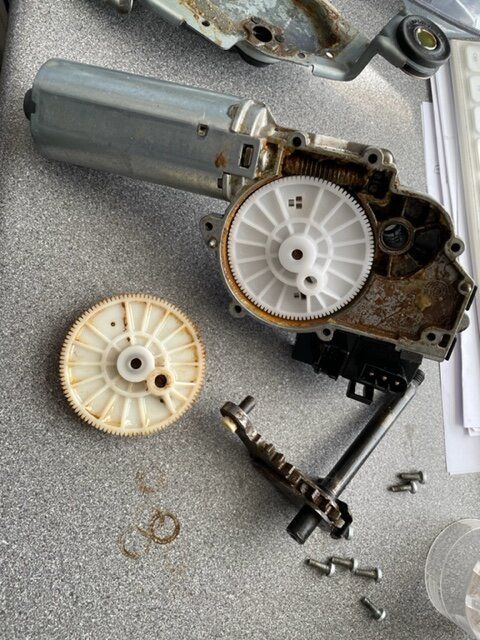

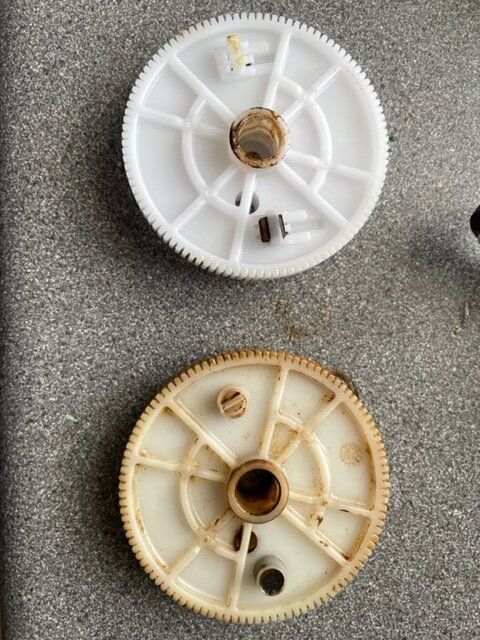

The plastic gear has stripped on my rear wiper motor and the the only one I can find online is £11 + £14pp, anyone know where I can get a reasonably priced one please? the only ones I can find have the wrong magnet fitting.

Cheers

Brian



Mark Piercy

Well fumbled member....

Full Member

• Oct 30, 2022

• #2

https://www.powerfuluk.com maybe?



Karlos the jackal

Well-Known Member

• Oct 30, 2022

• #3

have you got a part number ?
mabey gjs4x4 has one



backinblack

Well-Known Member

Full Member

• Oct 30, 2022

• #4

Mark Piercy said:

https://www.powerfuluk.com maybe?

Click to expand...

Karlos the jackal said:

have you got a part number ?
mabey gjs4x4 has one

Click to expand...

Good shout but no joy on their websites, although powerfuluk had some other interesting stuff.

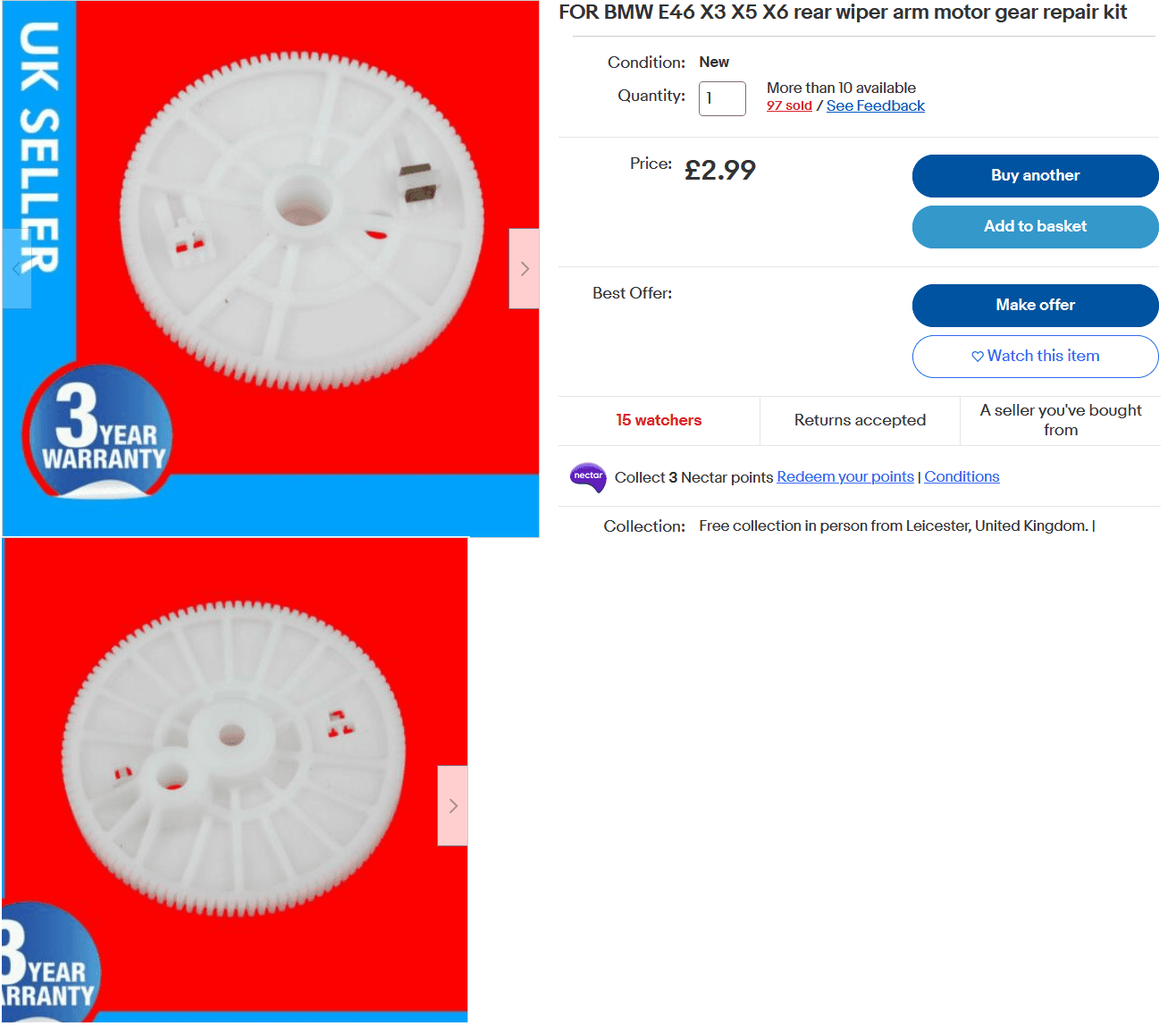

@stustrong mentioned bmw e46 compact is the same so I've ordered one of these, worth a punt at £2.99 inl p&p



Karlos the jackal

Well-Known Member

• Oct 30, 2022

• #5

be good to know if they fit and work



backinblack

Well-Known Member

Full Member

• Oct 30, 2022

• #6

I'll update when I get it.



backinblack

Well-Known Member

Full Member

• Nov 3, 2022

• #7

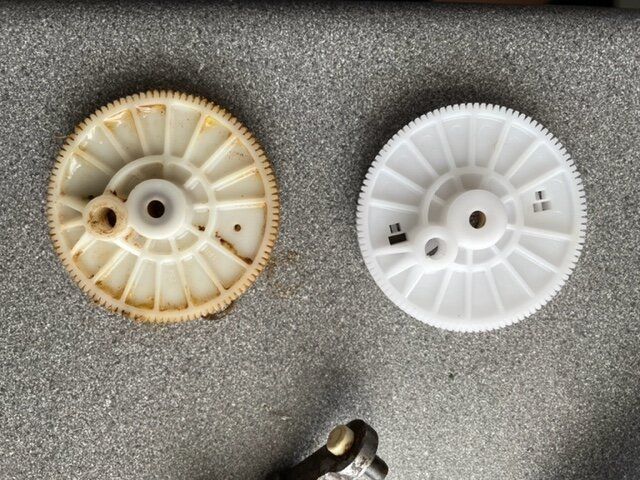

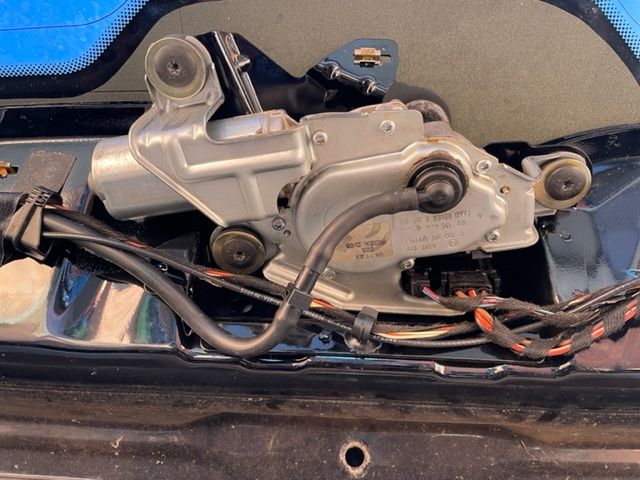

Quick update. Fit's perfectly and I now have a working rear wiper again.......for now anyway. Big thanks to @stustrong for the e46 compact tip.
Make sure it comes with the little magnet.



stuu

Well-Known Member

• Nov 3, 2022

• #8

The part sharing is so helpful at times, and can be quite cost effective



backinblack

Well-Known Member

Full Member

• Nov 3, 2022

• #9

stustrong said:

The part sharing is so helpful at times, and can be quite cost effective

Click to expand...

Much cheaper than the £25 LR specific one I found.



A

Alex Z

New Member

• May 5, 2023

• #10

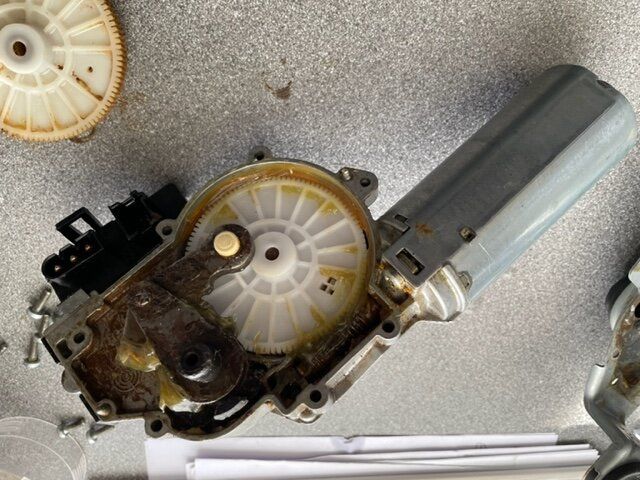

is there any "way" of installing the gear in a certain position after re-assembling it ? I've took mine apart, regressed it, and now it won't work anymore. I also tried trying the motor without the "linkage arm" installed, and it works for a few seconds, then stops. I also feel the motor is getting really really hot . Does the motor have a constant load on it for some reason ? Any thoughts ?



backinblack

Well-Known Member

Full Member

• May 5, 2023

• #11

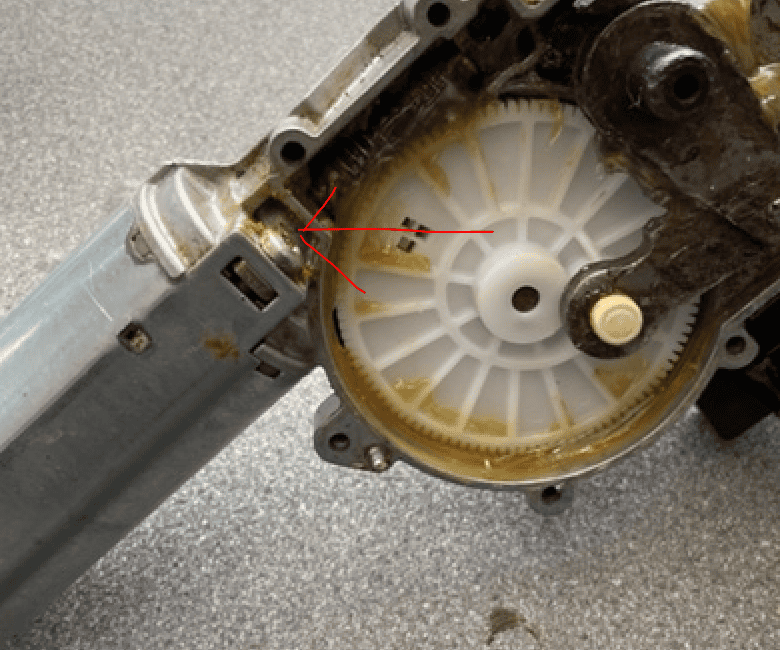

The motor spindle runs in a bush not a bearing so if when the spindle rusts it starts to bind in the bush. ooh er missus
The wiper ECU will sense the increased load and turn the motor off until the ignition is cycled off and on, ask me how I know



Rubberknees

Well-Known Member

Full Member

• May 5, 2023

• #12

backinblack said:

The motor spindle runs in a bush not a bearing so if when the spindle rusts it starts to bind in the bush. ooh er missus
The wiper ECU will sense the increased load and turn the motor off until the ignition is cycled off and on, ask me how I know

View attachment 287701

Click to expand...

Could try shaving the bush, know what I mean wink wink



nevillen

Well-Known Member

• May 5, 2023

• #13

There are SO many interchangeable BMW- RR parts, they are invariably much cheaper as was the case with the Jacking points I purchased. £23 each and £28 postage for RR or £14 each of Amazon with free postage



backinblack

Well-Known Member

Full Member

• May 5, 2023

• #14

Rubberknees said:

Could try shaving the bush, know what I mean wink wink

Click to expand...

I gave it a good old rubbing with sand paper



Rubberknees

Well-Known Member

Full Member

• May 6, 2023

• #15

backinblack said:

I gave it a good old rubbing with sand paper

Click to expand...

Oooh ahh sandpaper. Bit sore on the tender parts there don't ya know. Nice bit of lube needed after



backinblack

Well-Known Member

Full Member

• May 6, 2023

• #16

Rubberknees said:

Oooh ahh sandpaper. Bit sore on the tender parts there don't ya know. Nice bit of lube needed after

Click to expand...

Goes without saying



Rubberknees

Well-Known Member

Full Member

• May 6, 2023

• #17

backinblack said:

Goes without saying

Click to expand...
