Kev12 said:

Can't see the photos very well but seems OK to me. They look like casting marks and the rough edges are normal

Click to expand...

jamesmartin said:

its ok thats how they are

Click to expand...

LarryLandy93 said:

•Hi All,

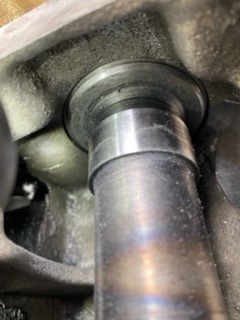

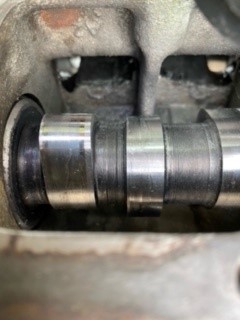

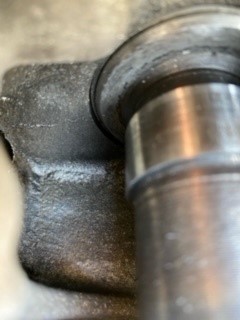

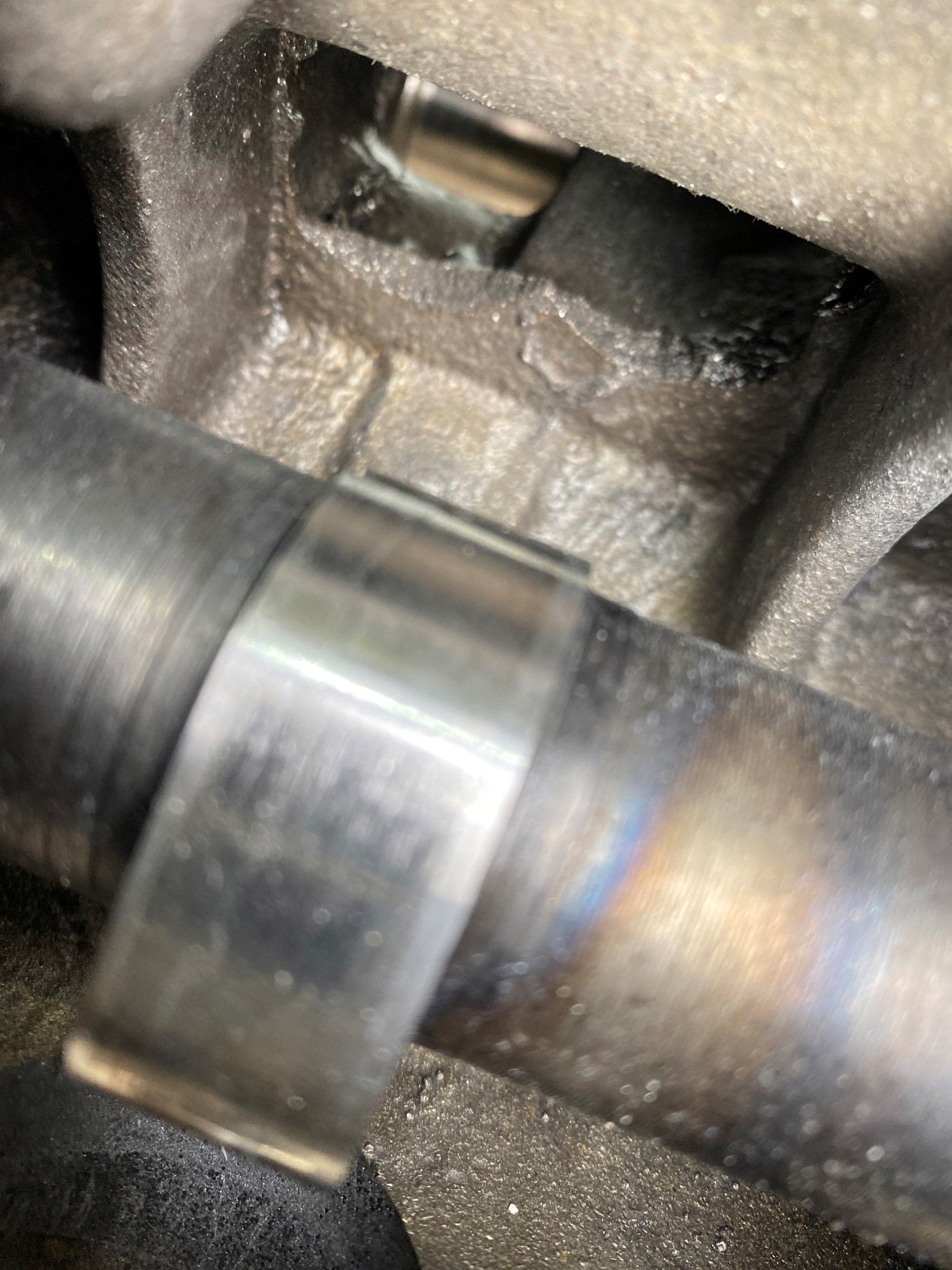

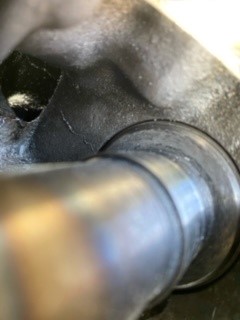

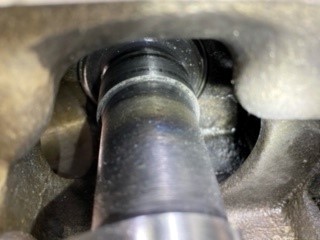

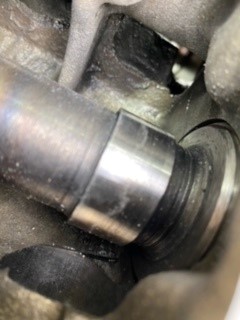

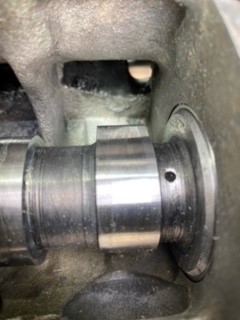

•I recently purchased a 200tdi 'project engine' to overhaul in preparation for replacing my ageing 200tdi 12L. The engine was advertised as having a broken piston ring (metal fragments in sump) but when I stripped it i found some damaged cam followers and evidence of overheat on the cam. I also found what looks like some cracks in the casting in the vicinity of the cam bearings and 'rough edges' around the orifices from the cam housing to the sump. I'm pretty inexperienced at engine rebuilds and am uncertain if I have a problem with my block or not. The lines that looks as though they might be a small cracks could be a line in the original casting? There are 4 of them in similar positions adjacent to the No1, 2, 3 and 4 cam bearings. Its hard to see if they are cracks or flaws in the surface of the casting. Can anyone please advise - is my block a right off or are these features common/usual. Many thanks


View attachment 232608 View attachment 232609 View attachment 232610 View attachment 232611 View attachment 232613 View attachment 232614 View attachment 232615 View attachment 232616

Click to expand...

LarryLandy93 said:

Thats also a relief. Thanks James. I really appreciate the expert advice. The rough edges to the casting holes through from the cam housing to the sump just looked too rough to be the result of a normal manufacturing process. If that's how they are that's a relief there isnt anything more serious to worry about. Thank you

Click to expand...

jamesmartin said:

yes thats how they are, they are only drain holes so finish isnt important

Click to expand...

LarryLandy93 said:

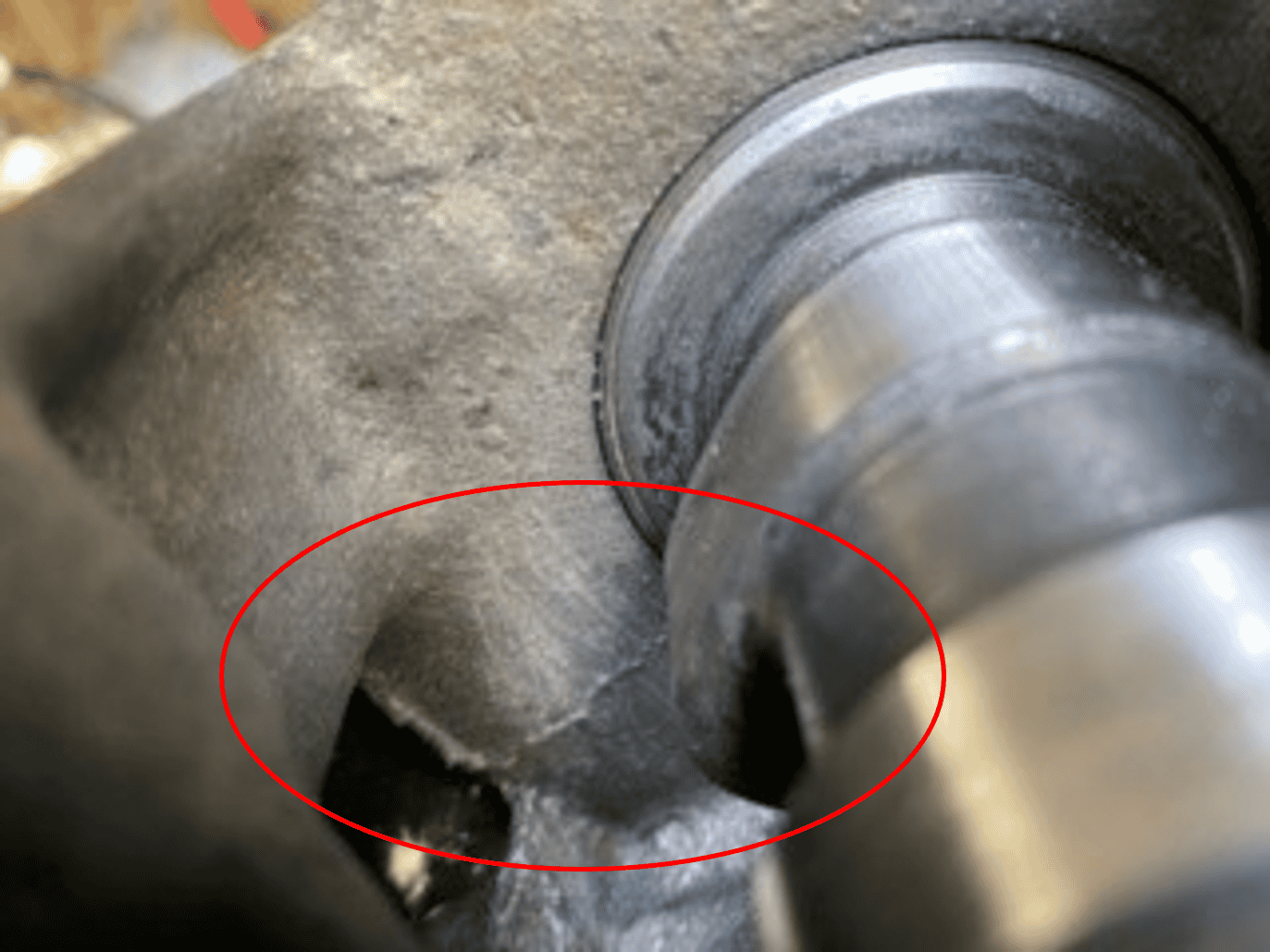

And the lines are casting marks also then? View attachment 232636

Click to expand...
