landrover6x6 said:

Hi , looking for bit of info , restoring a 1989 disco with manual windows and mirrors . wonderd if somebody could help , the centre console was missing , have now acquired one , but the window/mirror housing is for electric windows and mirrors .
can somebody tell me please , we’re the switches removed and blanks fitted or ?????
Many thanks in advance

Click to expand...

Stanleysteamer said:

Doubtless yes.
Although ours is 1998 and has electric windows and mirrors so cannot be sure. There are other blanks in place though for other stuff we haven't got.

Click to expand...

landrover6x6 said:

Thank you for reply , I’m hoping it’s blanks fitted , really need someone with an early disco 1 to post a couple of pics of centre console showing the panel for switches or blanks

Click to expand...

discool said:

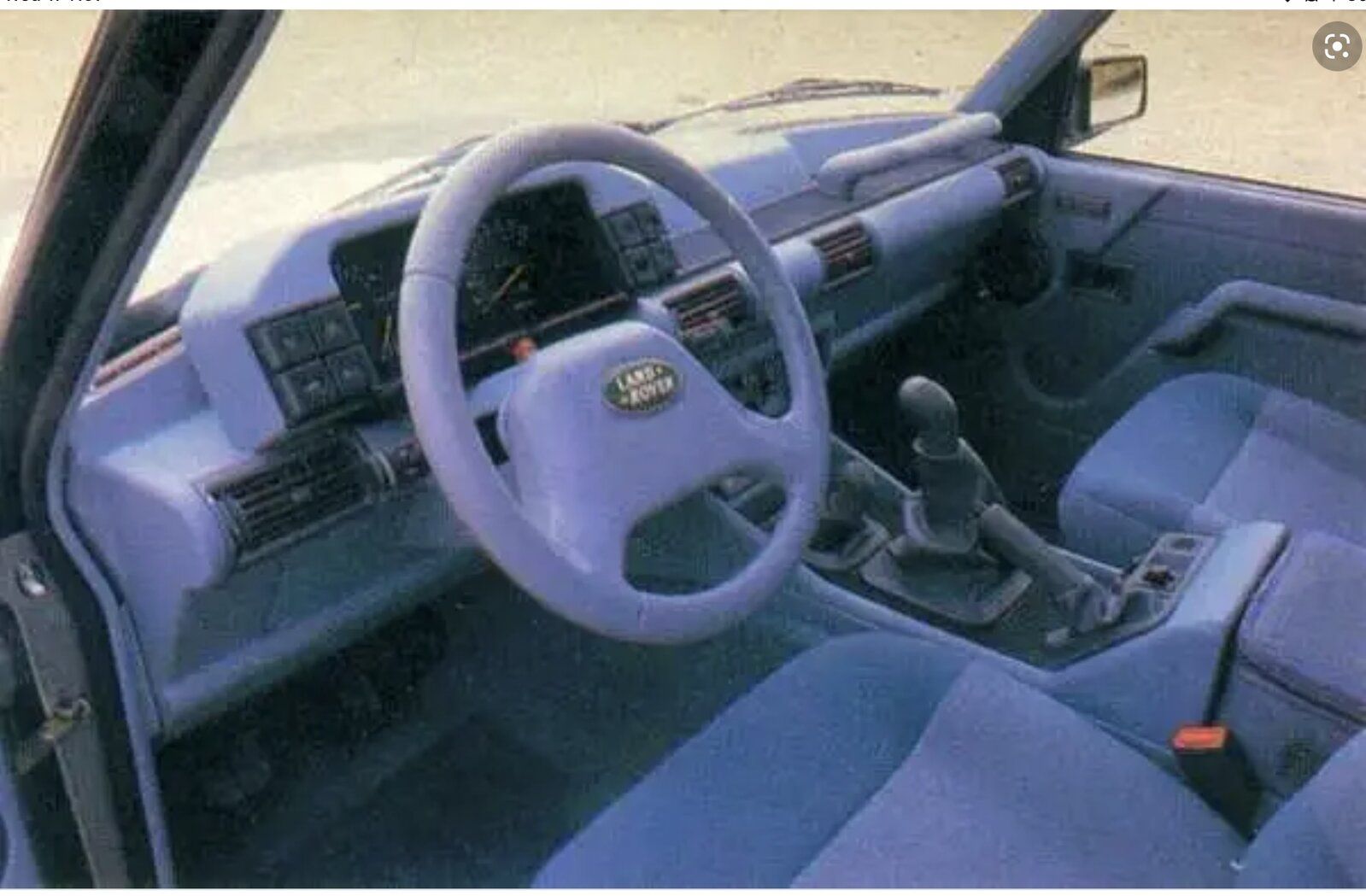

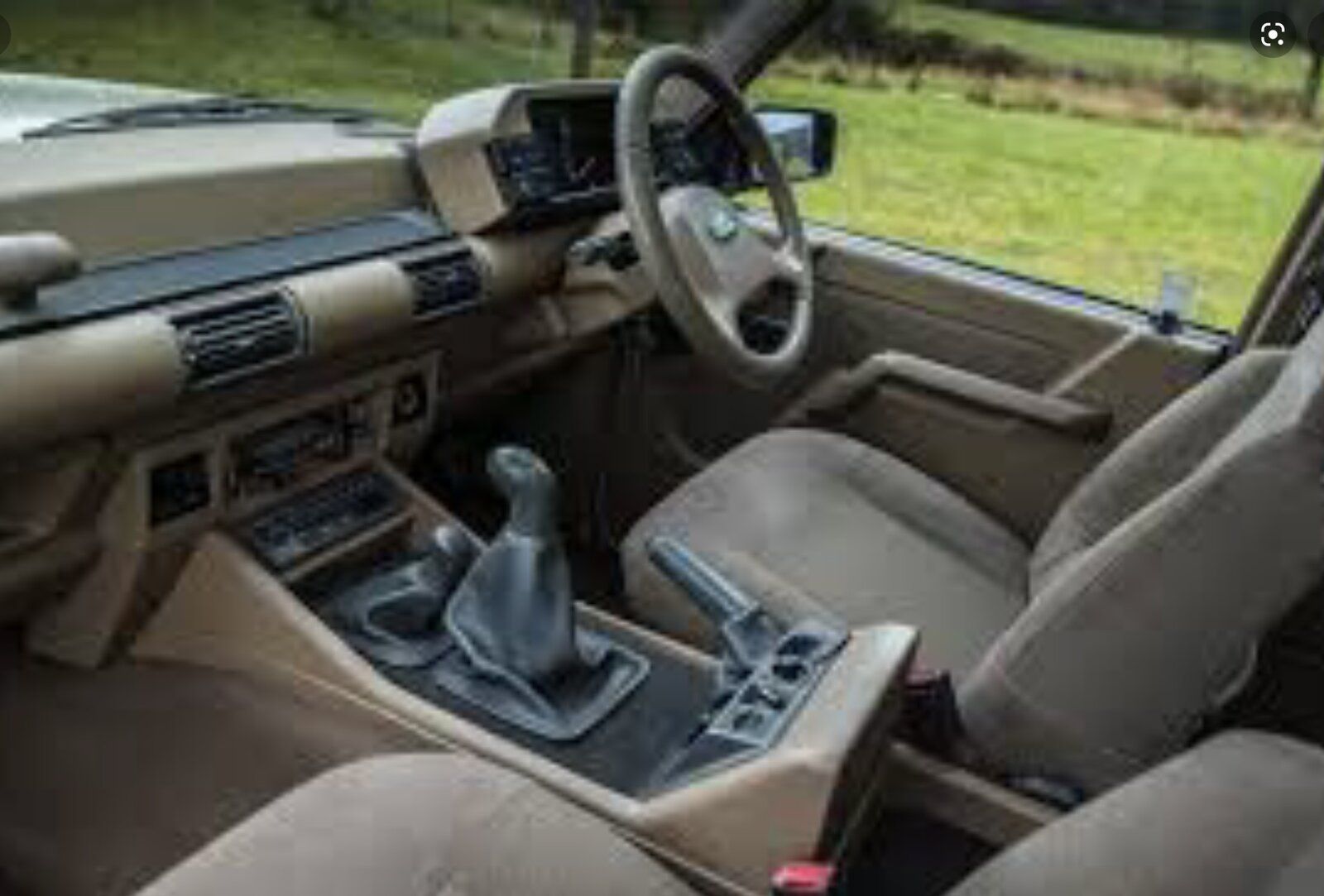

With a quick Google search I found these two picks.
Blue dash fitted with the shoulder bag and the other beige dash is missing.
Electric Windows/ mirrors were an option until the 5 door disco arrived.

If u have 300series centre console then blanks are shown as a replacement part.

Click to expand...

landrover6x6 said:

That’s great , thank you , so blanks were available , do you know if that was just windows or mirror control as well .
I’m not sure what they call my centre console , it’s a V8 on carbs , but looks identical to the blue model

Click to expand...

discool said:

Switch blanks are only shown for the 300 when the heated seat switches aren’t fitted in the console, or rear electric windows on a three door disco, its doubtful if new blanks are still available.
No blanks are not shown for the 200 series console for the windows, mirrors or the headlamp adjustment. I expect there was two types of console back then, with and without switches depending on the vehicle spec.

LR call the centre console ‘Console’.

Click to expand...

landrover6x6 said:

Thank you for the information , I think the phrase , needle in a haystack springs to mind . Will have to keep searching all the Landrover spares shows , Old Sodbury and Malvern turned up nothing , case of keep looking I guess

Click to expand...

neilly said:

This may with some searching show you the correct parts.
http://new.lrcat.com/#!/1231/33795/33796/2537
Then search the part number.

Cheers

Click to expand...

Andy Warren said:

Hi, the FL1 uses two different sizes of switch blanks in centre console, if you can give me the size of the holes I'll measure mine to see if they're suitable.
Genuine Lower Facia And Centre Console ((v)to La081991) For Land Rover Discovery 1 1989 - 1998 (from Fa393361 To Wa799999) Classic | Jaguar Land Rover Classic Parts Here's a diagram of which I presume is your type.

Click to expand...

discool said:

It appears u don’t understand the difference between the 200 and 300 series centre console and the layout of the switches.

Click to expand...

Andy Warren said:

Your not wrong I was just going by the pictures & they look the same . Not sure if this link helps. Genuine Switches Console & Rear Door For Land Rover Discovery 1 1989 - 1998 (from Fa393361 To Wa799999) Classic | Jaguar Land Rover Classic Parts If not I'll get me coat

Click to expand...

Andy Warren said:

Genuine Door And Window Controls ((v)from 4a000001) For Land Rover Freelander 1996 - 2006 Classic | Jaguar Land Rover Classic Parts Here's the link to the FL1 'blanks' items 10 & 11 you can click on the numbers to expand.

Click to expand...
