Hi guys!
Its been a long time coming, but I have finally decided to restore/do up my Rangie 2 door, with my dad.
Had the vehicle for a few years, and made some terrible decisions and false starts and stops along the way, but at long last we are going for it!
It will take a while, as work will be carried out during evenings, weekends and free time, between me and dad.
We stripped the vehicle about 5 years ago, and then ridiculous hybrid ideas (shudder), financial situations, and babys and life in general seem to of got in the way. However, its a go from now (fingers crossed).
Will upload pics of progress when I can and hopefully someone out there will find it interesting!! Cheers!



Chalky.

Well-Known Member

• Feb 26, 2017

• #2

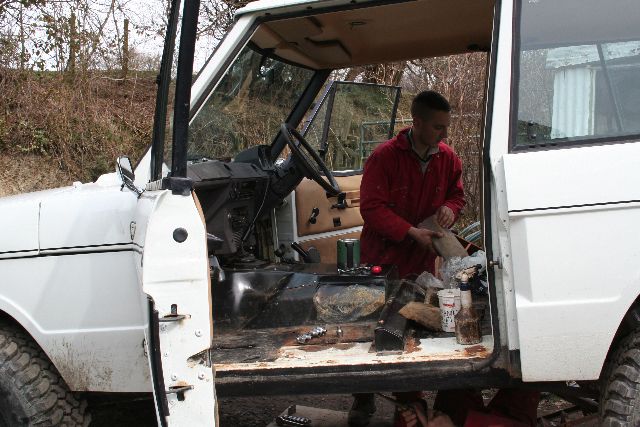

A few pics of the strip down....



Attachments

•

  338.7 KB · Views: 369
•

  422.3 KB · Views: 246

Last edited: Aug 15, 2018

Chalky.

Well-Known Member

• Feb 26, 2017

• #3



Attachments

•

  64 KB · Views: 160

Chalky.

Well-Known Member

• Feb 26, 2017

• #4

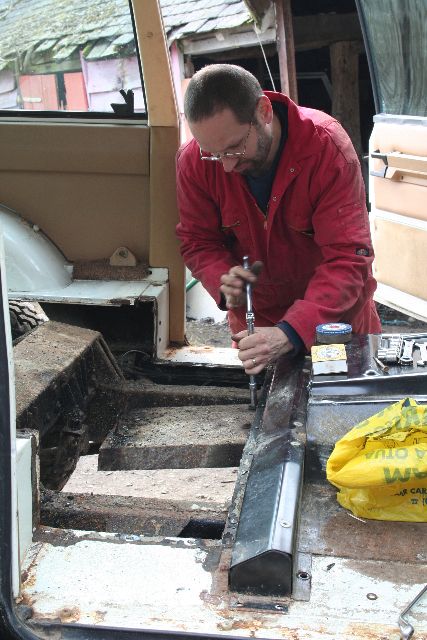

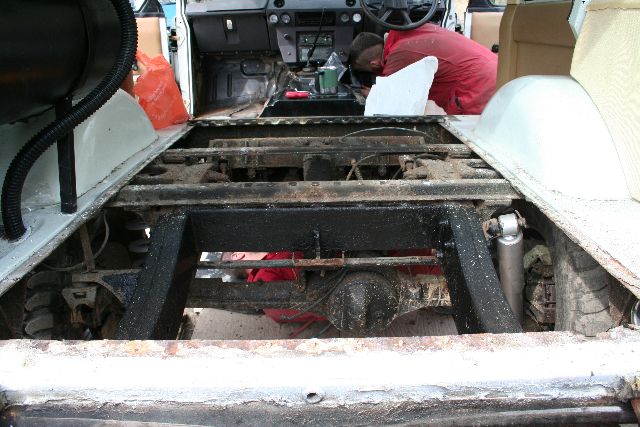

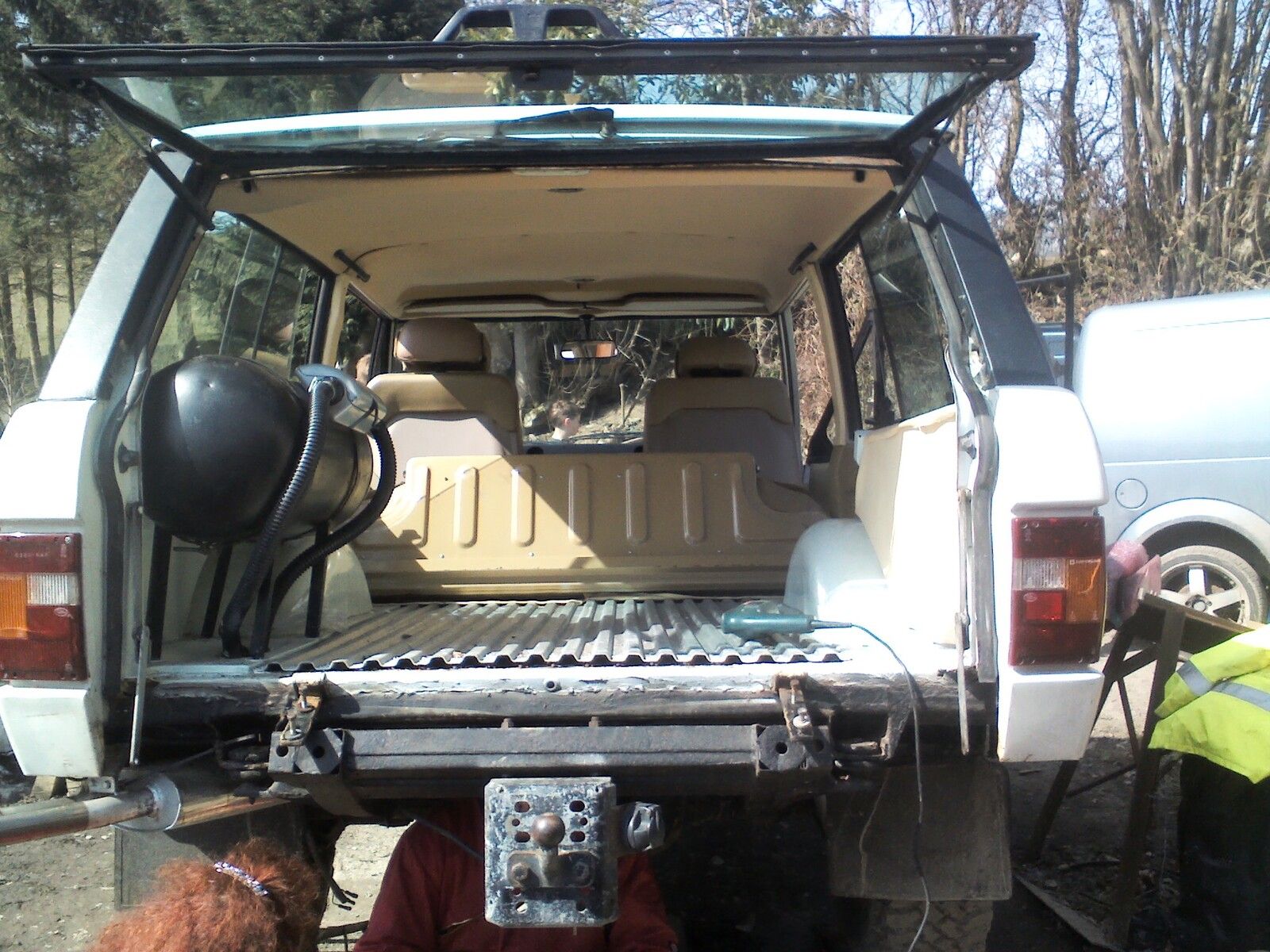

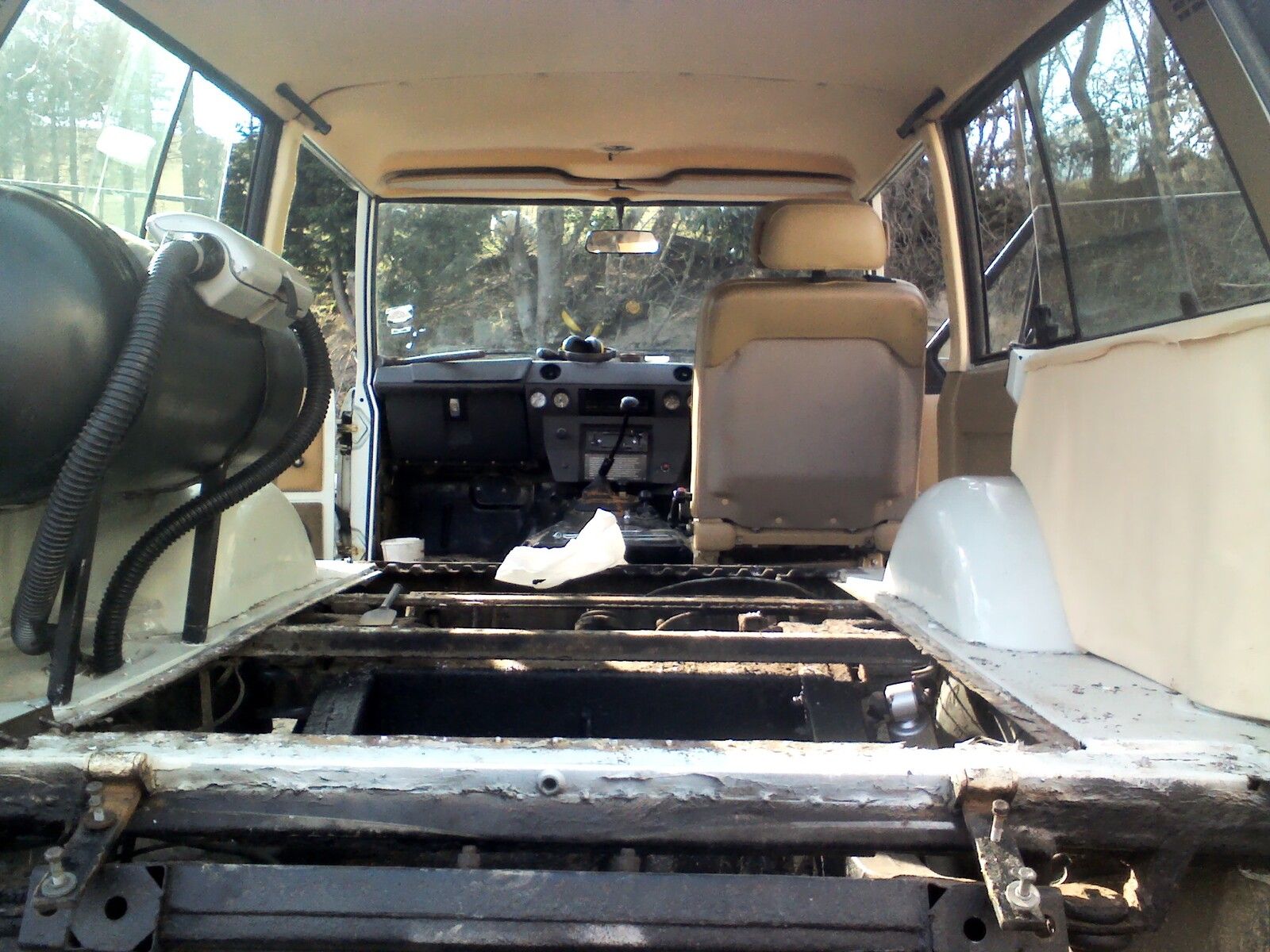

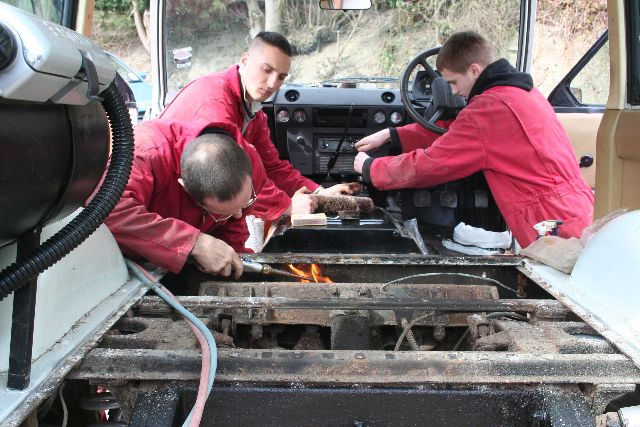

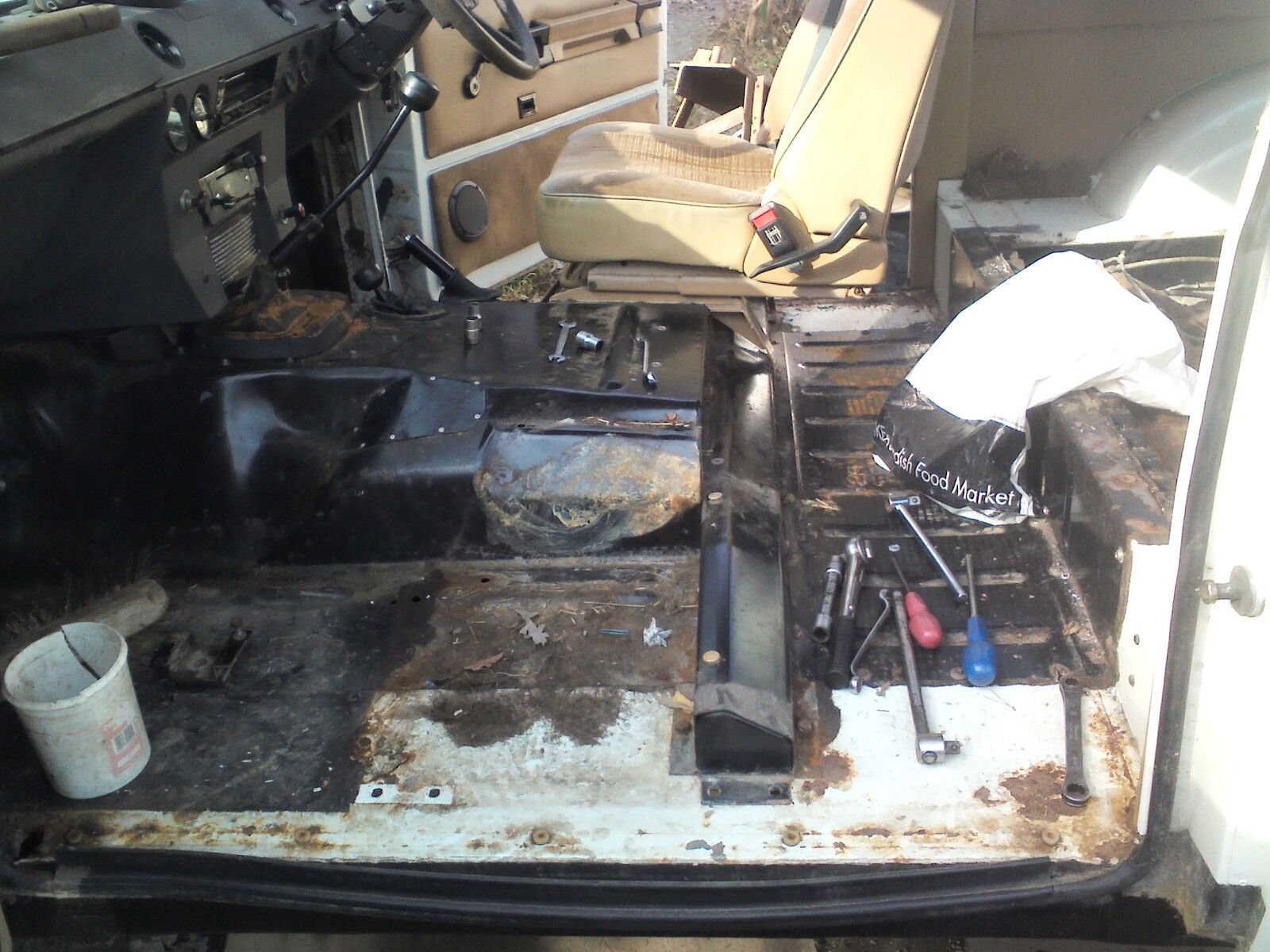

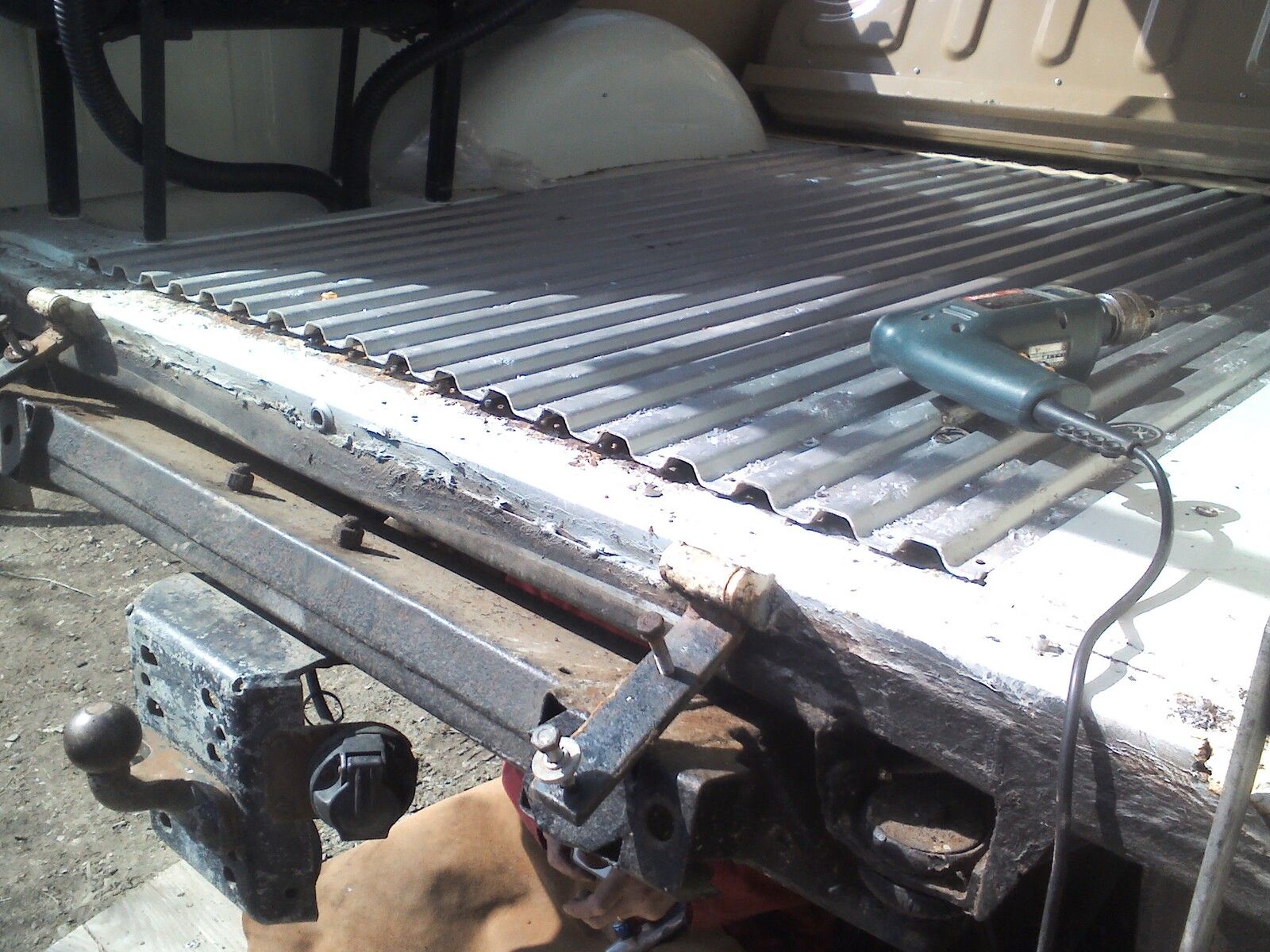

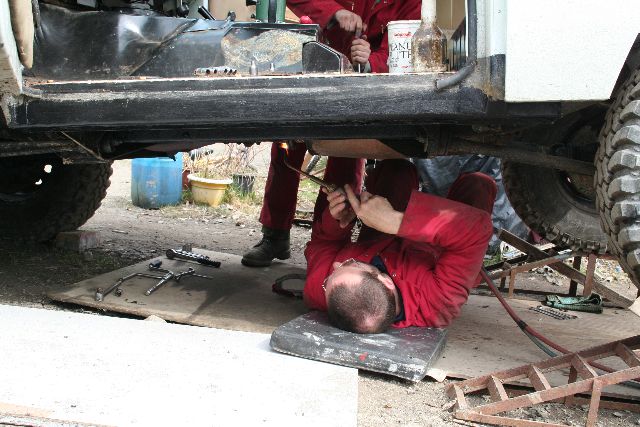

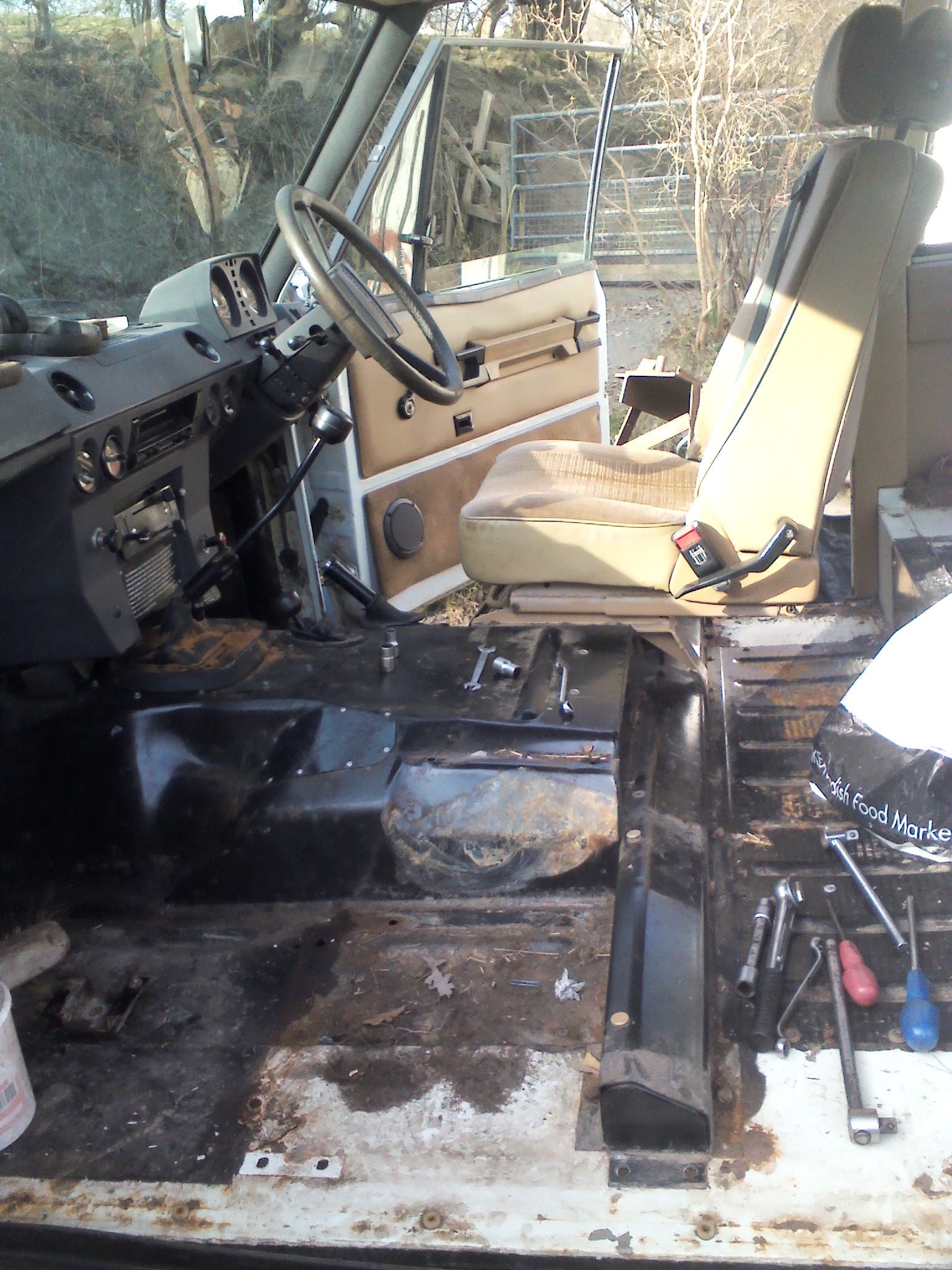

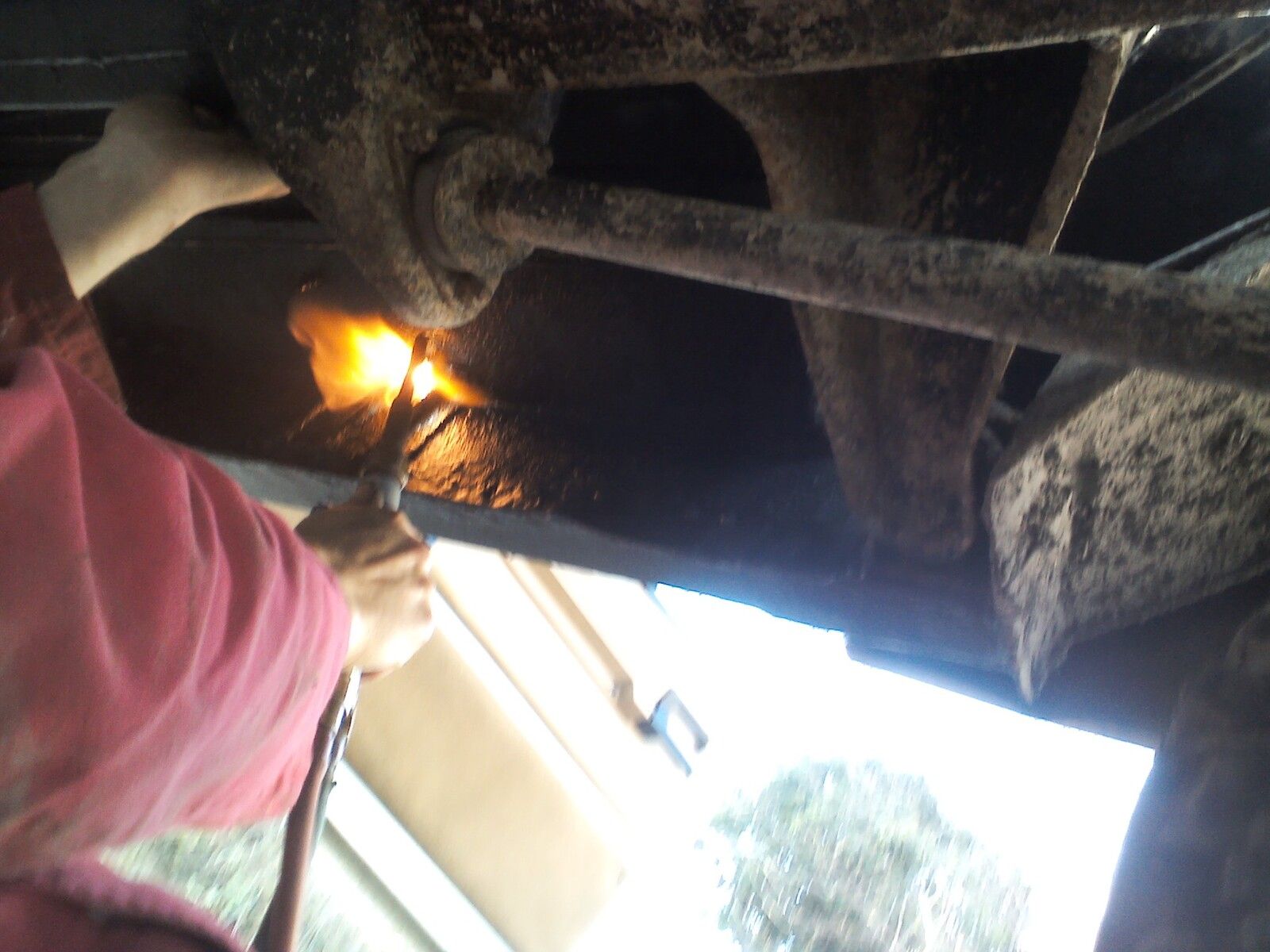

Rear Floor removed, working on the transmission tunnel bolts

Unearthing a shockingly bodged loom, wires cut and spliced into for the lpg kit. No wonder the indicators and lights had a mind of their own!!



Chalky.

Well-Known Member

• Feb 26, 2017

• #5

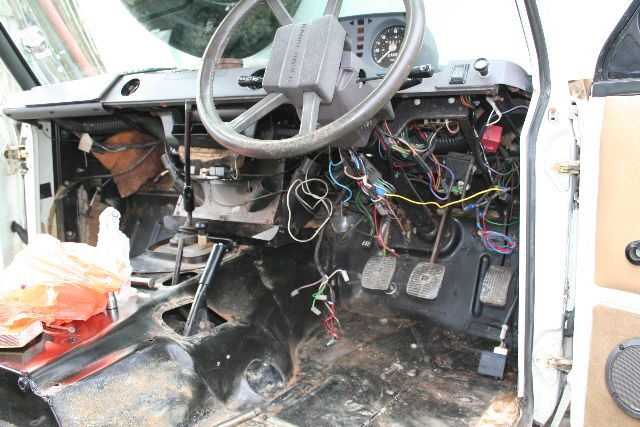

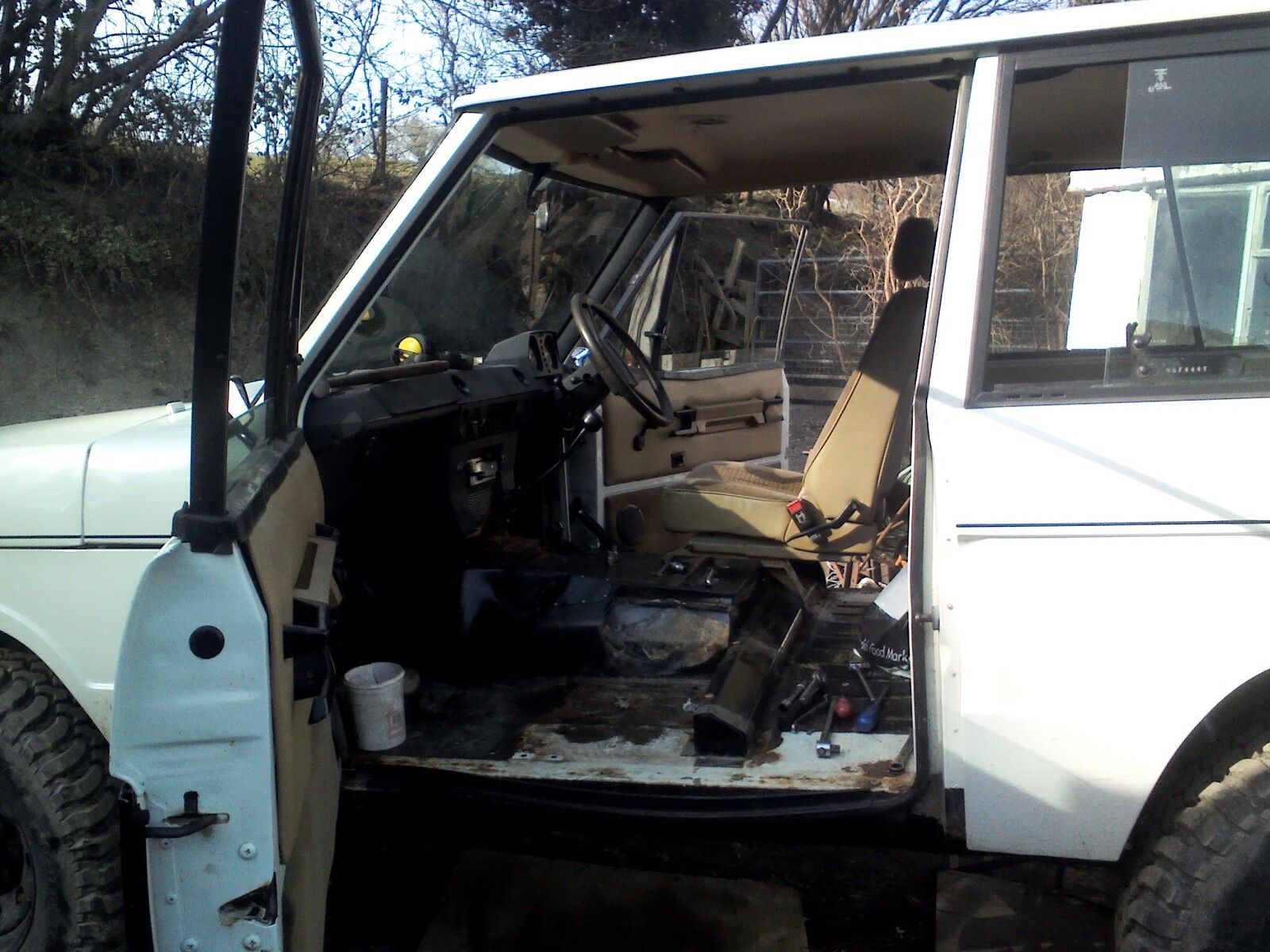

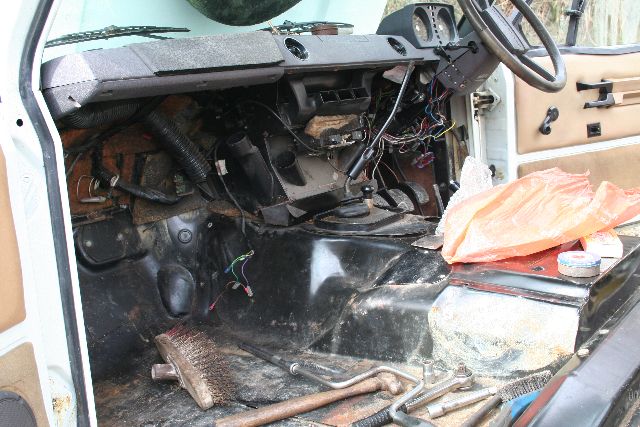

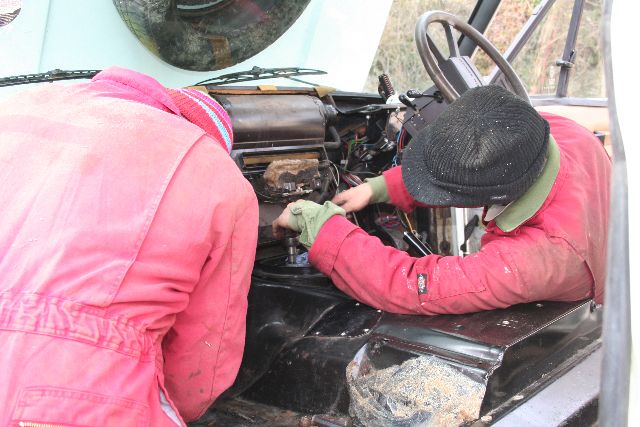

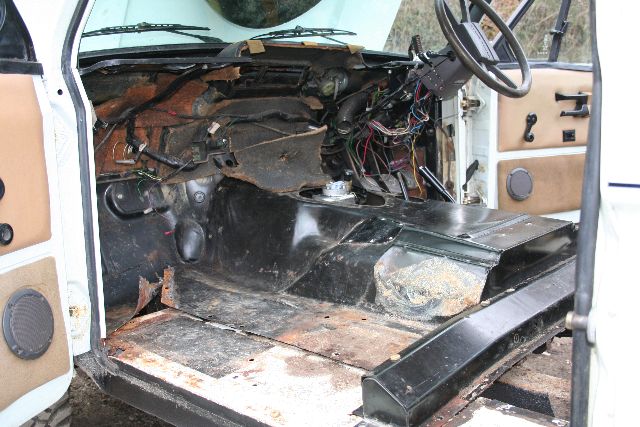

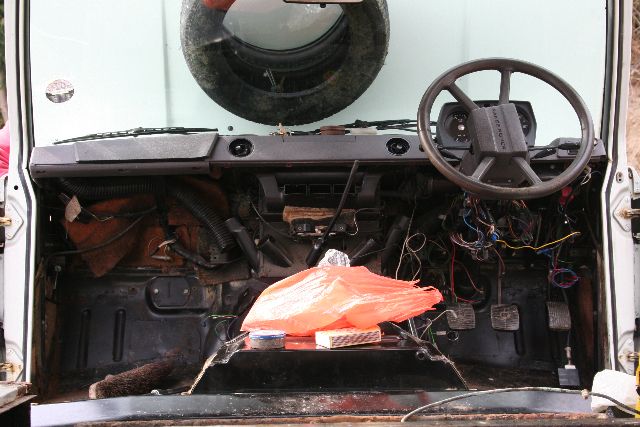

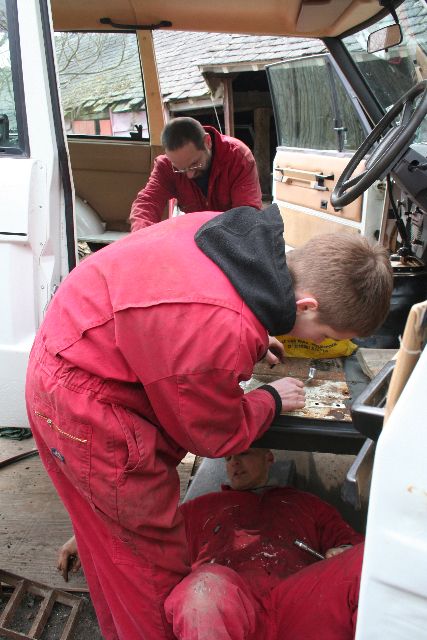

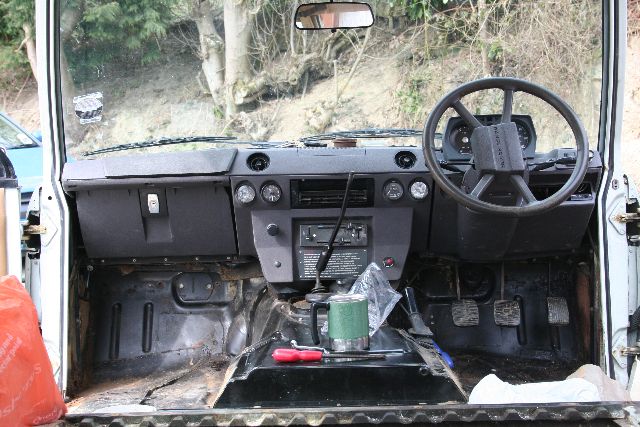

Lower dash removed, more cut wires found....

Finding bodged footwell 'repairs', and holey sills where the A pillar meets

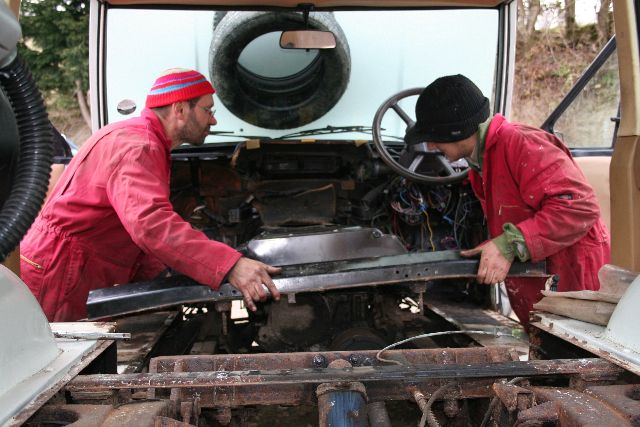

Transmission tunnel finally free!!



Chalky.

Well-Known Member

• Feb 26, 2017

• #6

Engine out next, the twin Strombergs are past their best, and it could do with a new cam and followers as it is very 'tappety' sounding, and im unsure of service history. We will also replace the core plugs and dizzy, for an electrical one, giving more reliability and, hopefully economy. I have bought and Idlebrock inlet manifold and Weber/Edlebrock 500cfm carb, so that should be fun!



Last edited: Feb 26, 2017

Chalky.

Well-Known Member

• Feb 26, 2017

• #7

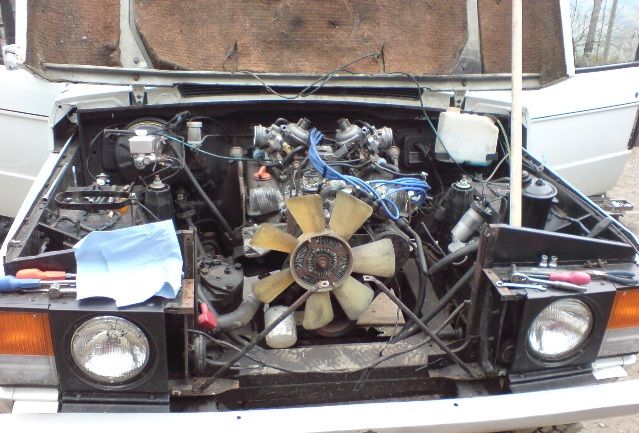

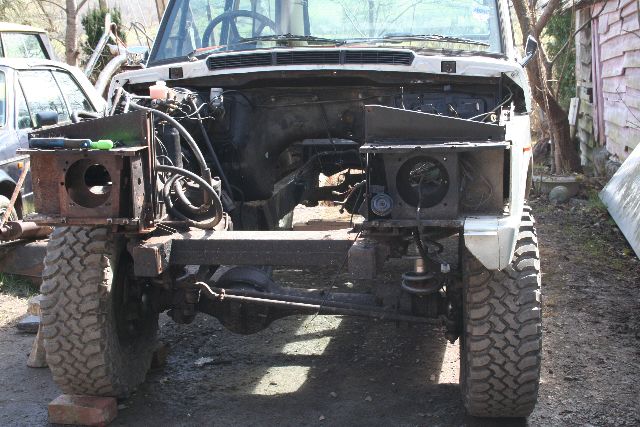

Rad and grill removed, I love how much access you have in these old engine bays!

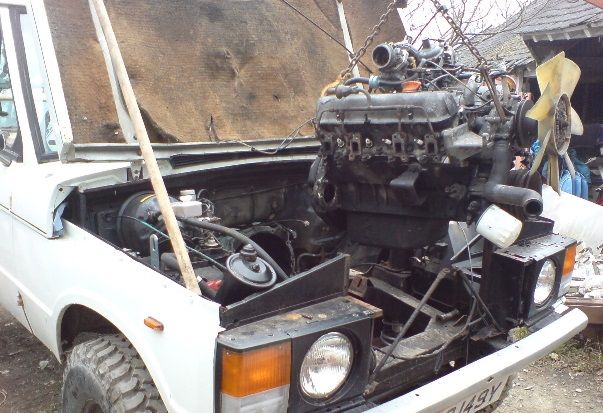

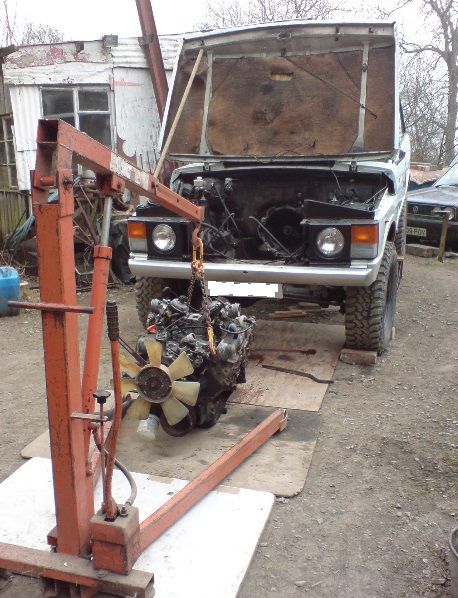

Out she comes.....



Chalky.

Well-Known Member

• Feb 26, 2017

• #8

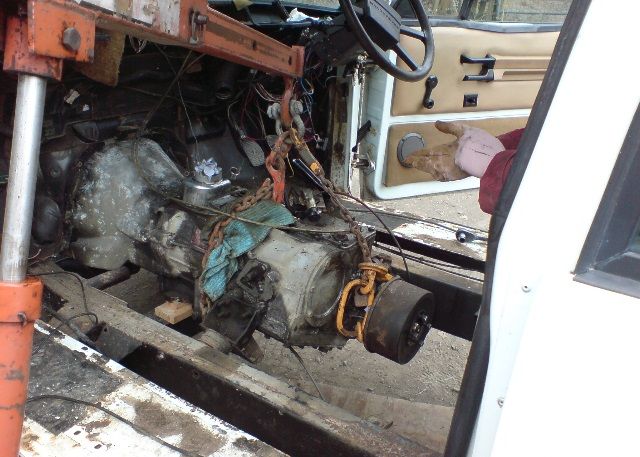

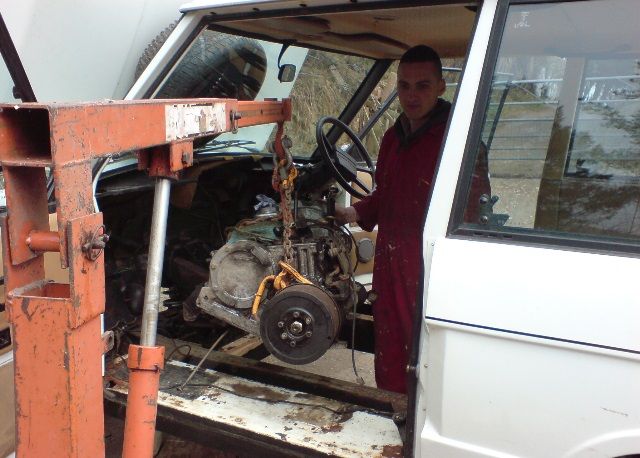

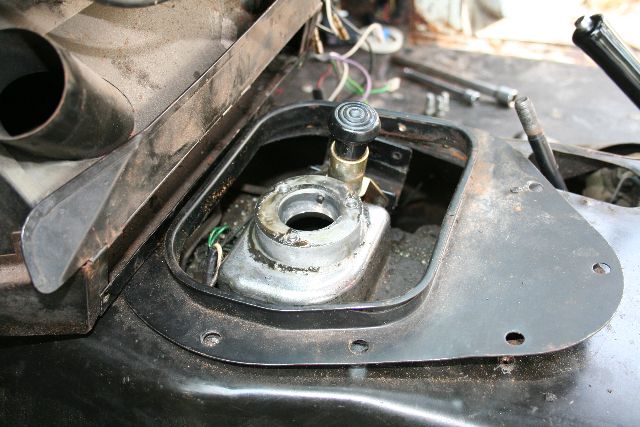

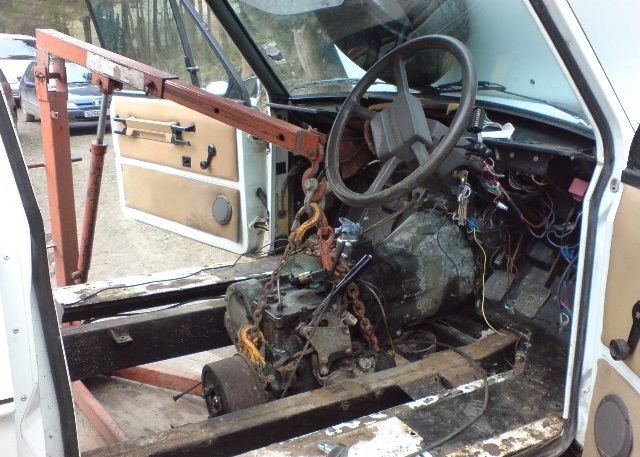

Gearbox out next...



Chalky.

Well-Known Member

• Feb 26, 2017

• #9

A very well concealed bodge 'repair' with filler, upon closer inspection where the floor edge joins the rear wheel arch and infact all along the top of the arch, corrosion has taken a strong hold, and actually in the end we found it to be so bad that i have bought replacement arch panels.



Chalky.

Well-Known Member

• Feb 26, 2017

• #10

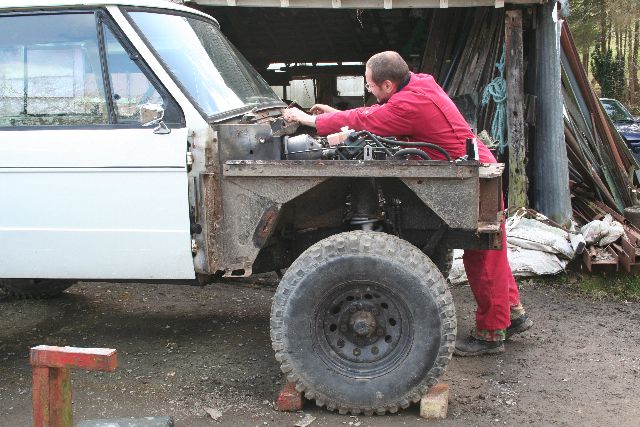

Starting to take the outer body panels off now

Whilst I know that there are many inner wing panels that look much more frightening than this, they really aren't the best and could do with being repaired or replaced. As you can see on the lower A post looks a bit suspect....



Last edited: Feb 27, 2017

Chalky.

Well-Known Member

• Feb 26, 2017

• #11

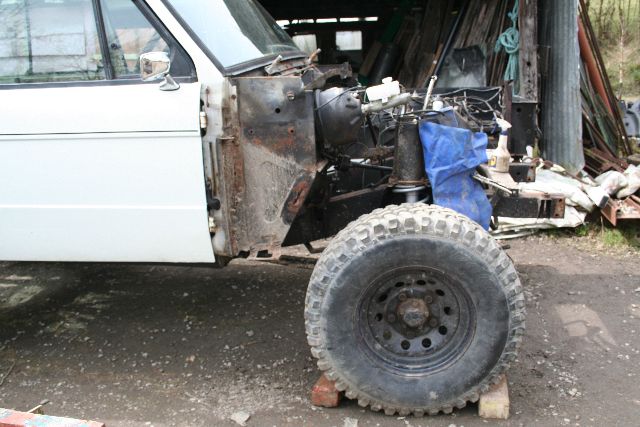

Fairly obvious, but, drivers side wing assembly completely removed



Attachments

•

  58.4 KB · Views: 161
•

  71.7 KB · Views: 154

Chalky.

Well-Known Member

• Feb 26, 2017

• #12

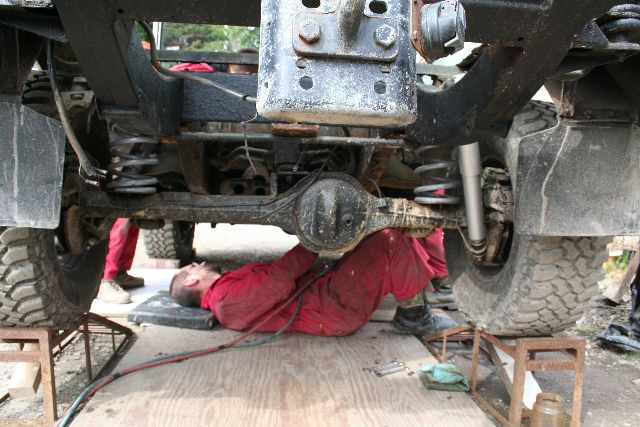

Please excuse the black modulars, Insa tyres and rubbish terrifirma springs and shocks...just one of my 23 year old selfs duff ideas, and something else to be obviously changed along the way...



Chalky.

Well-Known Member

• Feb 26, 2017

• #13

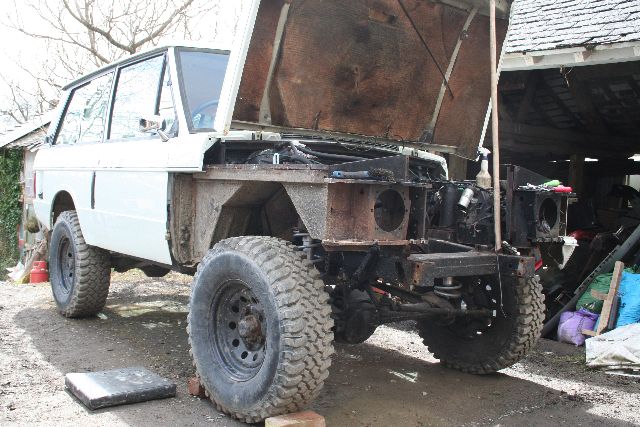

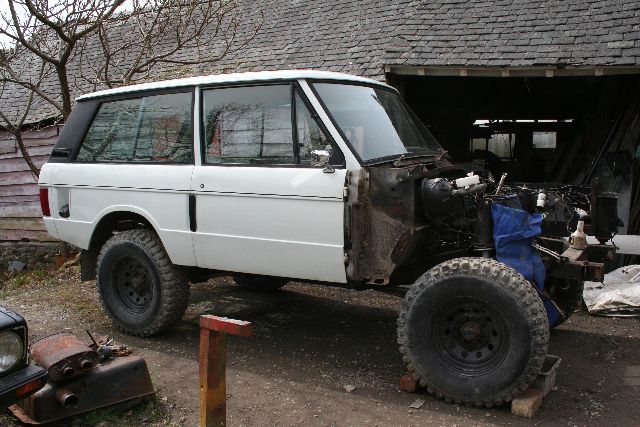

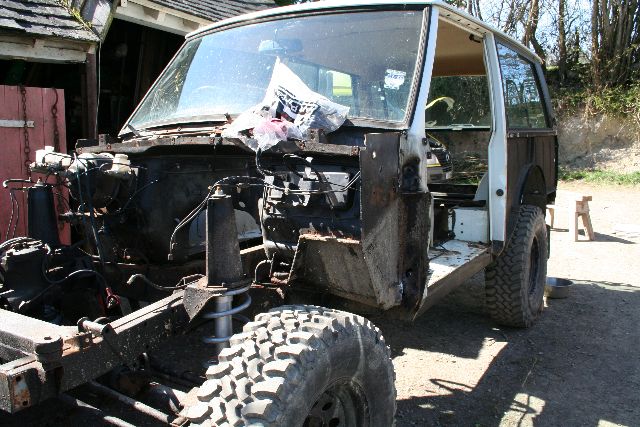

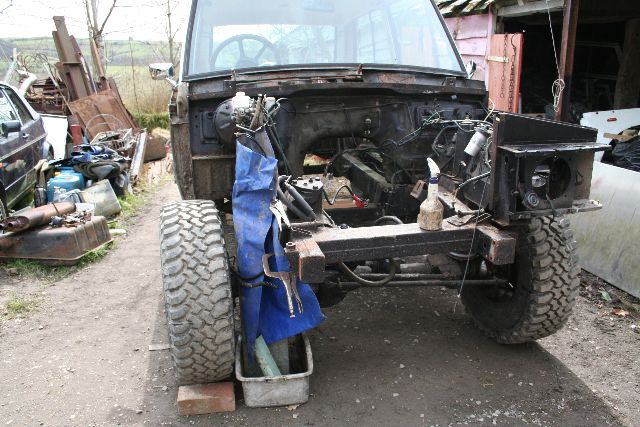

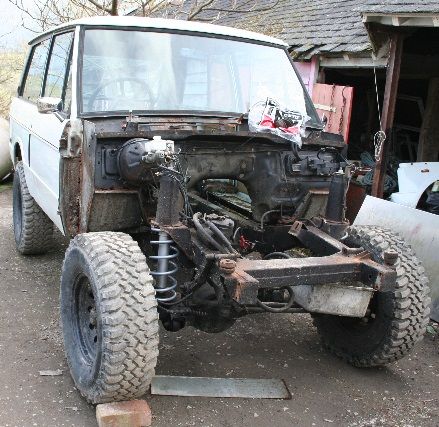

Both front wing assemblies off, and more A post corrosion more apparent! Doh!



Chalky.

Well-Known Member

• Feb 26, 2017

• #14

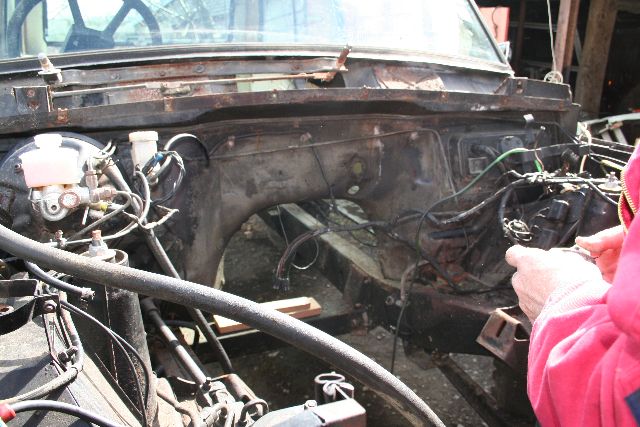

A bit of loom labeling....we might reuse it, although I have a feeling it will be easier to simply replace

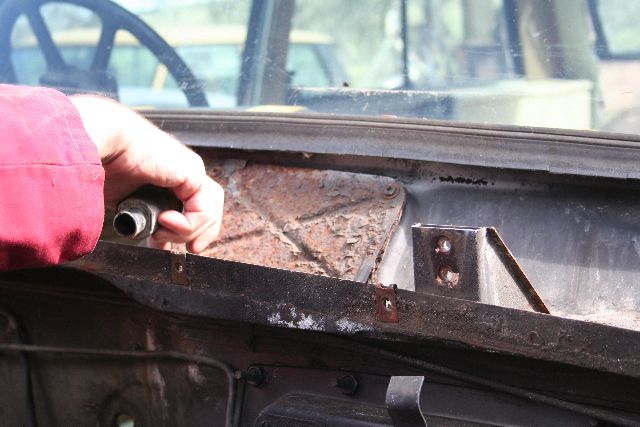

Showing a bit of detail on the scuttle panel, this isn't in bad shape at all, but will still require some work...



Chalky.

Well-Known Member

• Feb 26, 2017

• #15

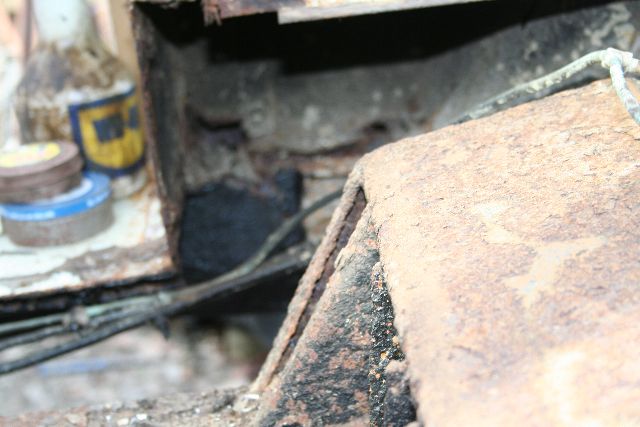

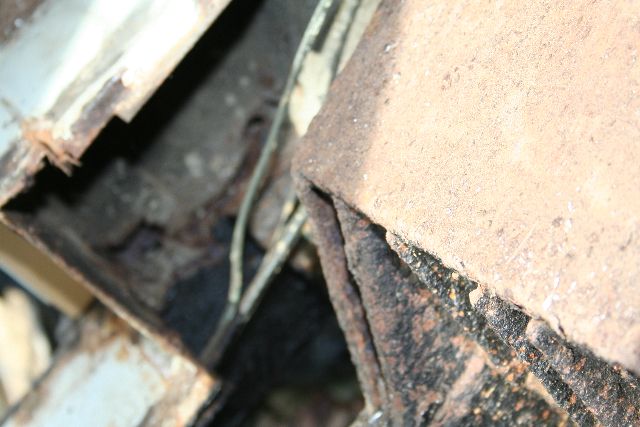

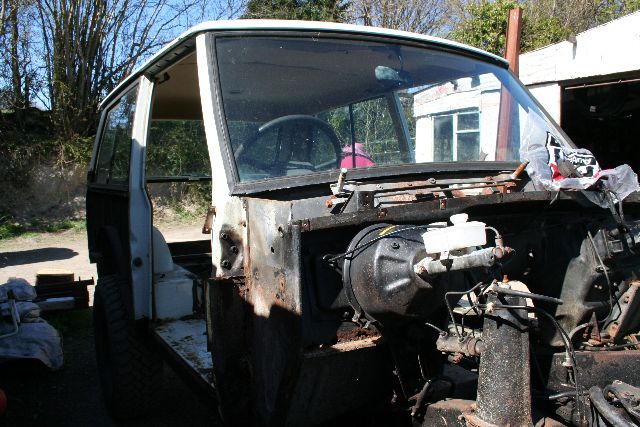

Showing close up of corrosion to drivers side A post and footwell

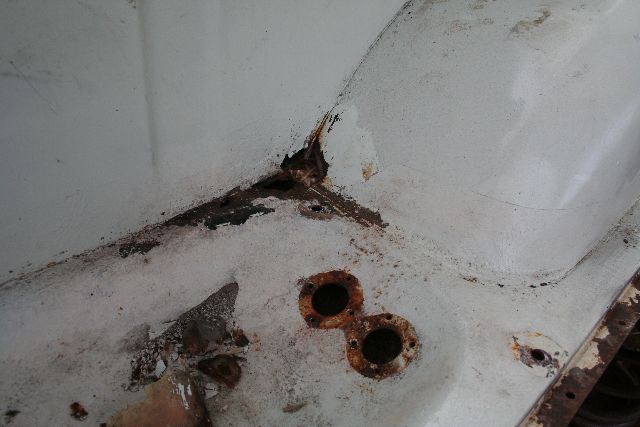

Showing corrosion to passenger side footwell/bulkhead.

Drivers side bulkhead



Chalky.

Well-Known Member

• Feb 26, 2017

• #16

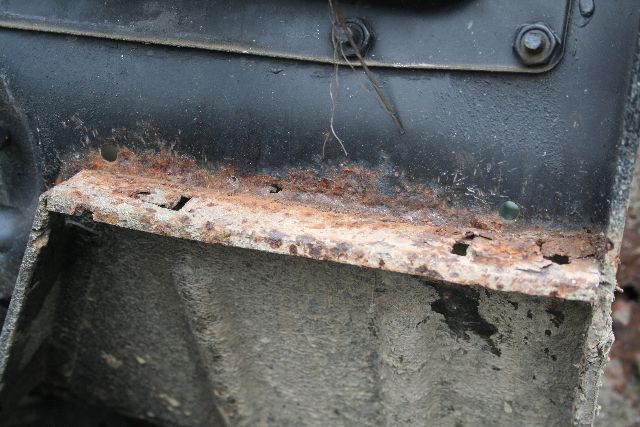

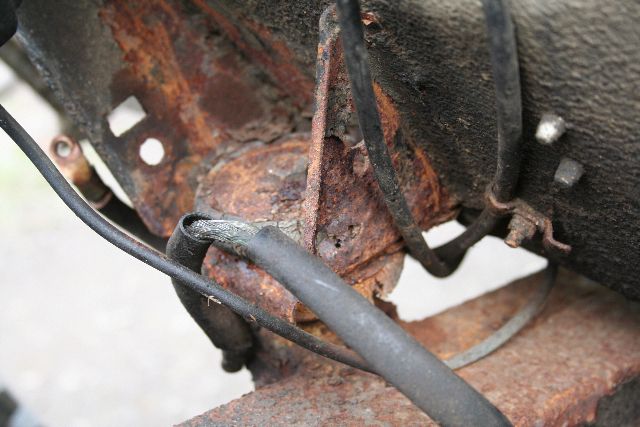

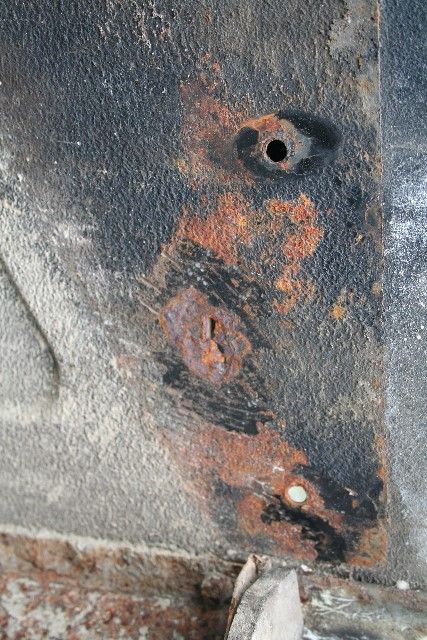

Showing corrosion to front drivers side body mount

And the body mount passenger

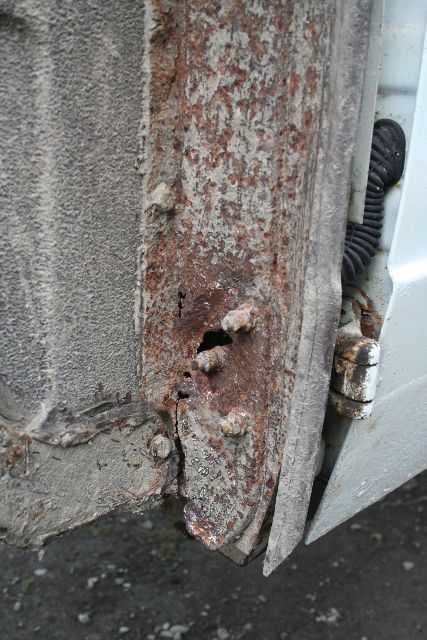

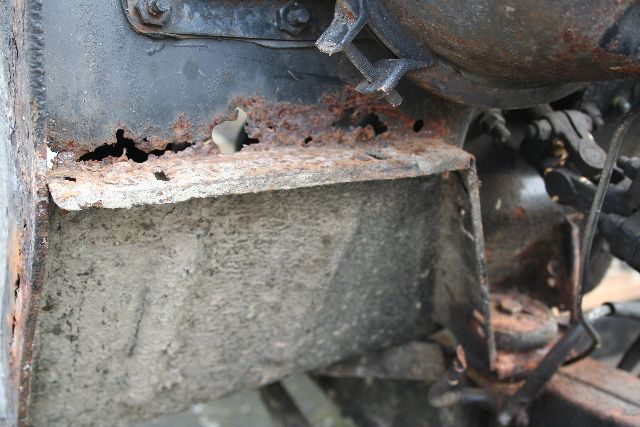

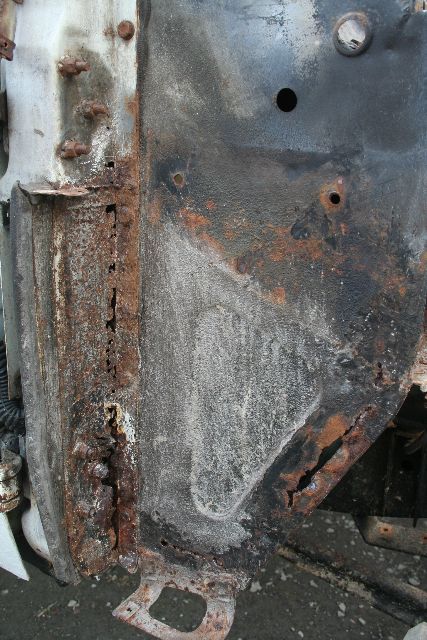

This is the passenger side lower A post, a well documented rust trap, I think I will buy both side lower replacement A post repair panels, and then we can repair the tops ourselves (if anyone knows of full A post sections please let me know). Also showing bodged, masticy (if thats a word) passenger footwell.



Chalky.

Well-Known Member

• Feb 26, 2017

• #17

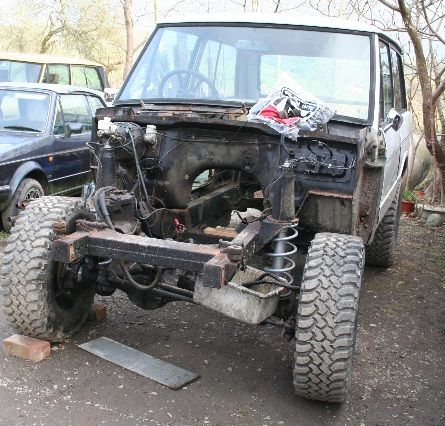

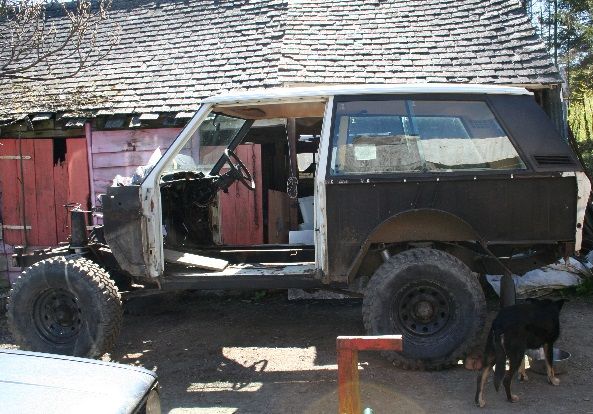

The shell looking a bit naked now!



Chalky.

Well-Known Member

• Feb 26, 2017

• #18

So that's all the pics for now. We have removed the shell from the chassis, and the next step will be taking the chassis to be shot blasted (sand blasted probably) hopefully in the next few weeks. We can then properly inspect the chassis for any corrosion and damage, and repair as necessary. Fingers crossed the chassis will be pretty straight and solid!
Ill post more pics of progress when theres anything interesting!



Stretch

Well-Known Member

• Feb 26, 2017

• #19

Interesting indeed.

To think the other day I was thinking perhaps a classic Range Rover might be something for me. I'm not so sure now!

Rust.



Chalky.

Well-Known Member

• Feb 26, 2017

• #20

Stretch said:

Interesting indeed.

To think the other day I was thinking perhaps a classic Range Rover might be something for me. I'm not so sure now!

Rust.

Click to expand...

haha, yes i know what you mean! I brought mine and it looked like a minter to start with, it had been very well bodged on the internal body and this only reared its ugly head when we went to repair the fuel tank x member, we traced rust everywhere, and now i have bought virtually every panel that you can for the repair, hence the big delay in making my mind up!

I think if you went for a later 4 door, that had been garaged and waxoiled from the off you might have some luck, although I would say expect to have to tackle rust at some point down the line! I do LOVE a good rangie though!
