Hi Folks - Got the task of performing continuity checks on the inhibitor switch of a 2002 Range Rover 4.4 V8

Can anybody tell me the location of the Transmission control module please

thanks in advance!



Saint.V8

Dyed-in-the-wool 100% RR Junkie

Full Member

Posts

16,479

Location

North Dorset - Near the East & West Stours

• Mar 4, 2019

• #2

Inhibitor switch I think is also known as the XYZ switch and is mounted on the side of the gearbox, connected via a cable to the gear selector in the cabin.



dannisconnect

New Member

Posts

3

Location

slough

• Mar 4, 2019

• #3

Hi

yes that's correct thank you. I want to continuity check the wires on the XYZ switch back to the transmission control Unit

my apologies perhaps I have caused some confusion

would you know where the Transmission control unit(ECU) is located.

Thanks
Dani



B

Bemble

Well-Known Member

Posts

652

Location

Lancashire

• Mar 4, 2019

• #4

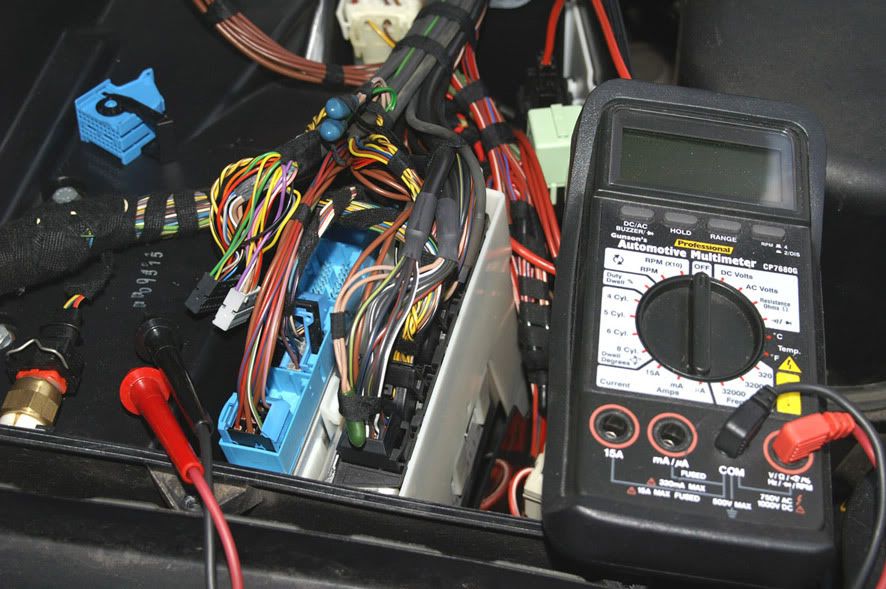

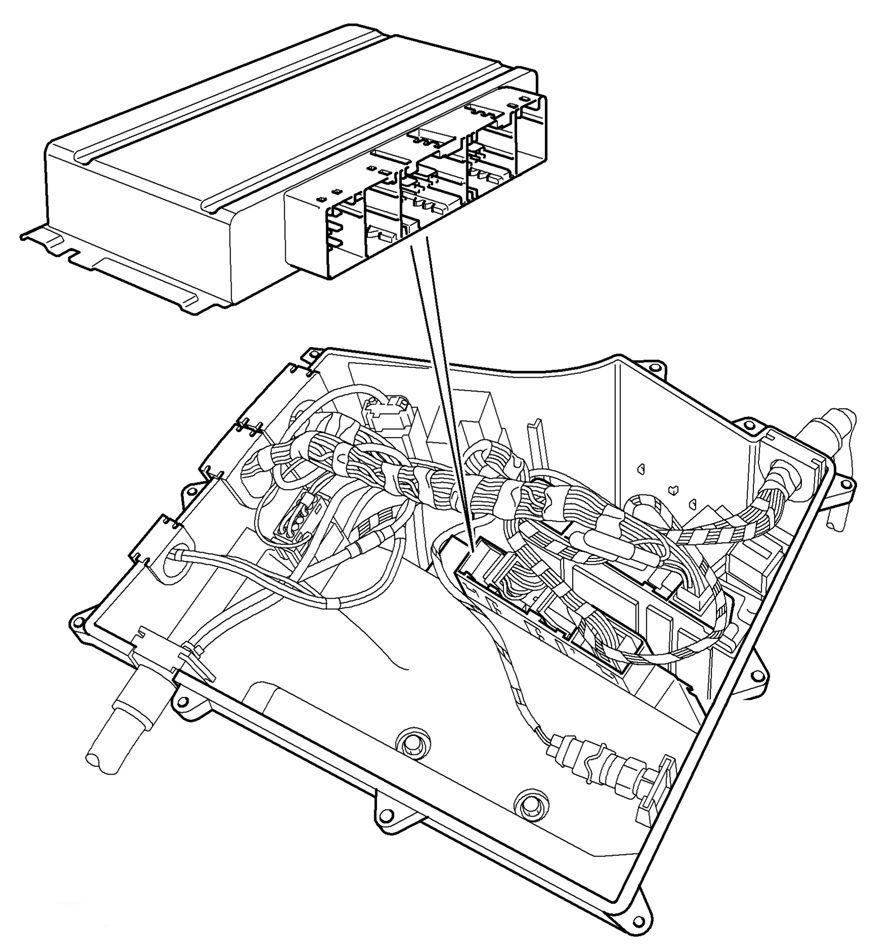

It lives in the big black plastic E-box under the bonnet, with the engine controller

Phil



dannisconnect

New Member

Posts

3

Location

slough

• Mar 9, 2019

• #5

Thanks Phil !
