This is probably going to be one of those stupid questions.....but.

I have a snorkel on my 300tdi, although i don't drive through anything deeper than a fairly shallow puddle. It was absolutely throwing it down today which made wonder.
With the top of the snorkel (safari style) facing forwards does this not suck all the rain water in and down to my air filter??


regards
Terry



blue beasty

Leaks an prone to bits dropping off

Posts

63,106

Location

Gloucestercotshirewolds

• Jul 26, 2015

• #2

It's got a water trap in it



bankz5152

Well-Known Member

Posts

9,311

Location

South London/North Kent

• Jul 26, 2015

• #3

I was wondering this. Mines an MOD style one but with a safari head



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

Posts

83,282

Location

Embasinga stocæ

• Jul 26, 2015

• #4

the amount of water taken in via the snorkel would be insignificant.



blue beasty

Leaks an prone to bits dropping off

Posts

63,106

Location

Gloucestercotshirewolds

• Jul 26, 2015

• #5

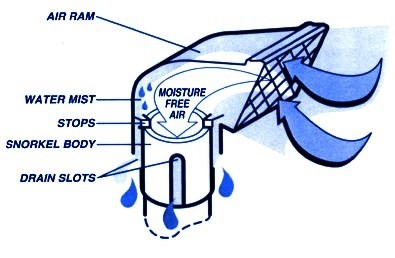

Most have some variation on this



bankz5152

Well-Known Member

Posts

9,311

Location

South London/North Kent

• Jul 26, 2015

• #6

Hmm not sure i have drain holes, may have to cut some.



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

Posts

83,282

Location

Embasinga stocæ

• Jul 26, 2015

• #7

dont bother



bankz5152

Well-Known Member

Posts

9,311

Location

South London/North Kent

• Jul 26, 2015

• #8

Problem solved then lol



gemsdad

NOT BOTHERED.

Posts

67,807

Location

halfway between here and there.

• Jul 28, 2015

• #9

bankz5152 said:

Hmm not sure i have drain holes, may have to cut some.

Click to expand...



chrisstdt

Well-Known Member

Posts

923

Location

scottish borders

• Jul 28, 2015

• #10

Dont have a snorkel as i dont go wading either but i would have thought they would have some sort of one way valve in the bottom before the engine intake

Moto x and enduro bikes have a rubber one in the bottom of the airbox that will let water seep out if it gets in but dirt and water cant come back in through them



Paul D

Old, nackered 'n broke, but the Landy is fine . :)

Events Planner

Posts

14,902

Location

Doncaster

• Jul 28, 2015

• #11

chrisstdt said:

Dont have a snorkel as i dont go wading either but i would have thought they would have some sort of one way valve in the bottom before the engine intake

Moto x and enduro bikes have a rubber one in the bottom of the airbox that will let water seep out if it gets in but dirt and water cant come back in through them

Click to expand...

Landrover standard airboxes have a rubber 'thing' that is supposed to do that, so the snorkels don't need it if they're plumbed in via the airbox as they should be! However, it's ****e and really needs blocking off ... it really isn't an issue if the connections are airtight ..



bankz5152

Well-Known Member

Posts

9,311

Location

South London/North Kent

• Jul 28, 2015

• #12

Mines sealed... Also removed the impeller inside, much better air flow. Could just turn it around in heavy rain or use one of the prefilter socks



MrNasty

Well-Known Member

Posts

1,799

Location

Suffolk

• Jul 31, 2015

• #13

I've still got my safari snorkel head spun round since being in the desert, I did wonder about rain water getting in whilst driving, but there is a non return rubber flap thing on the lowest point of the air intake which I presume allows water out before hitting the airbox. I have sucked water in through the airbox before I fitted the snorkel by momentarily submerging the intake grill on the wing just for a second or two and I buggersd my MAF sensor and sent bits of air filter through the turbo.

I was told that snorkels were not actually intended for deep water but more for really dusty conditions, if your following a vehicle the dust cloud tends to hang at waist height so a snorkel at hieght works well.
