He could of ploughed into a pylon for all we can tell,
but agree with Saint's advice.

Just clocked his surname....:eek:

Last edited:
Hi everyone. I own a 2006 Range Rover sport HSE. I've been having issues with opening my tailgate. I have tested all wires and latches and they are completely fine but the tailgate ajar cable is signalling that the tailgate is open whereas it is actually closed. Both latches tested and are good and have been tested by being put manually together but the sign displaying 'tailgate open' remains on the dash. Plus the tailgate doesn't want to open. So I'm stuck with a non opening boot and a annoying sign saying it's open. Anyone with any suggestions will be appreciated. I'm just so tired of trying everything on this car ☹️

Just get through these things one at a time and then you'll slowly start to feel better about your bus.
Just remember how good it is to drive it.:cool:
Hang on in there;)

Ron miah said:
Hi everyone. I own a 2006 Range Rover sport HSE. I've been having issues with opening my tailgate. I have tested all wires and latches and they are completely fine but the tailgate ajar cable is signalling that the tailgate is open whereas it is actually closed. Both latches tested and are good and have been tested by being put manually together but the sign displaying 'tailgate open' remains on the dash. Plus the tailgate doesn't want to open. So I'm stuck with a non opening boot and a annoying sign saying it's open. Anyone with any suggestions will be appreciated. I'm just so tired of trying everything on this car ☹️
Click to expand...
Is the switch for the latch working?

hi

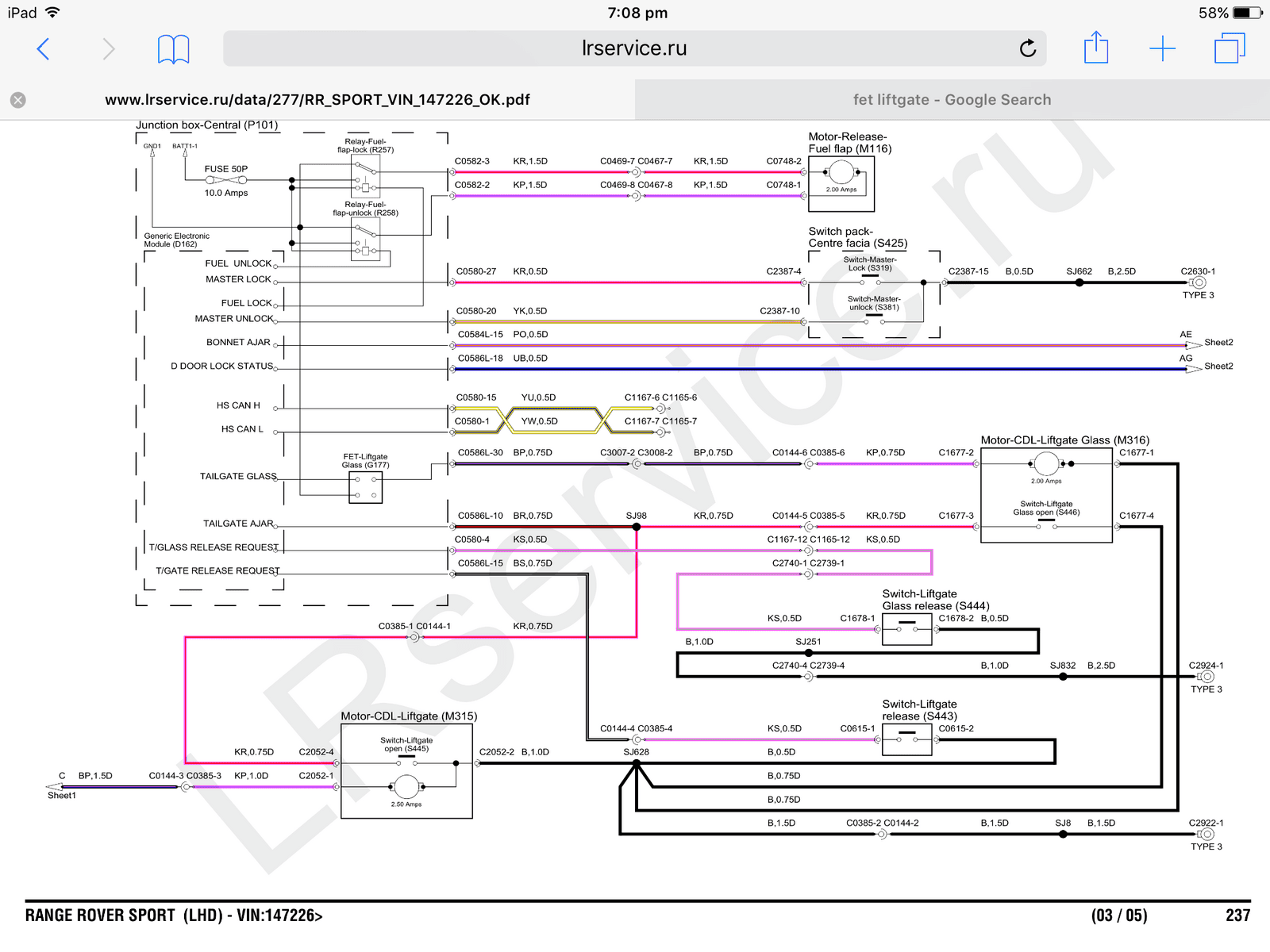

Just wanted to know, when I loop S445 and S319 the tailgate ajar switch does not sense the tailgate is closed. If it is looped it shouldn't display 'tailgate open' but it does. Could you help me in checking what wires I should check for power.
I have checked
-C0586L-10 (with a volt buzzer and it beeps)
All the black wires are fine.
Should their be power on C2052-1 and C1677-3? I have checked and theirs no power on there.
Which wires should I check for power?
Thanks


Attachments

  • IMG_1393.PNG
    137.6 KB · Views: 153
Hi

I think if u Press the lock and unlock button on the dash together for 5 seconds it should open the tailgate

Heard that water normally gets into the contacts and owners end up replacing them

On the lower boot is the button seal in good condition

Assume you’ve checked all the fuses

gstuart said:
Hi

I think if u Press the lock and unlock button on the dash together for 5 seconds it should open the tailgate

Heard that water normally gets into the contacts and owners end up replacing them

On the lower boot is the button seal in good condition

Assume you’ve checked all the fuses
Click to expand...
Yes the seal is in good condition and I have checked all the fuses and have followed all looms to the tailgate and have checked they are all fine. But the tailgate won't open due to the module box. (GEM D162) does anyone know where this is?

Ron miah said:
Yes the seal is in good condition and I have checked all the fuses and have followed all looms to the tailgate and have checked they are all fine. But the tailgate won't open due to the module box. (GEM D162) does anyone know where this is?
Click to expand...

Hi

May i ask , is ur tailgate powered close by any chance plse ,
