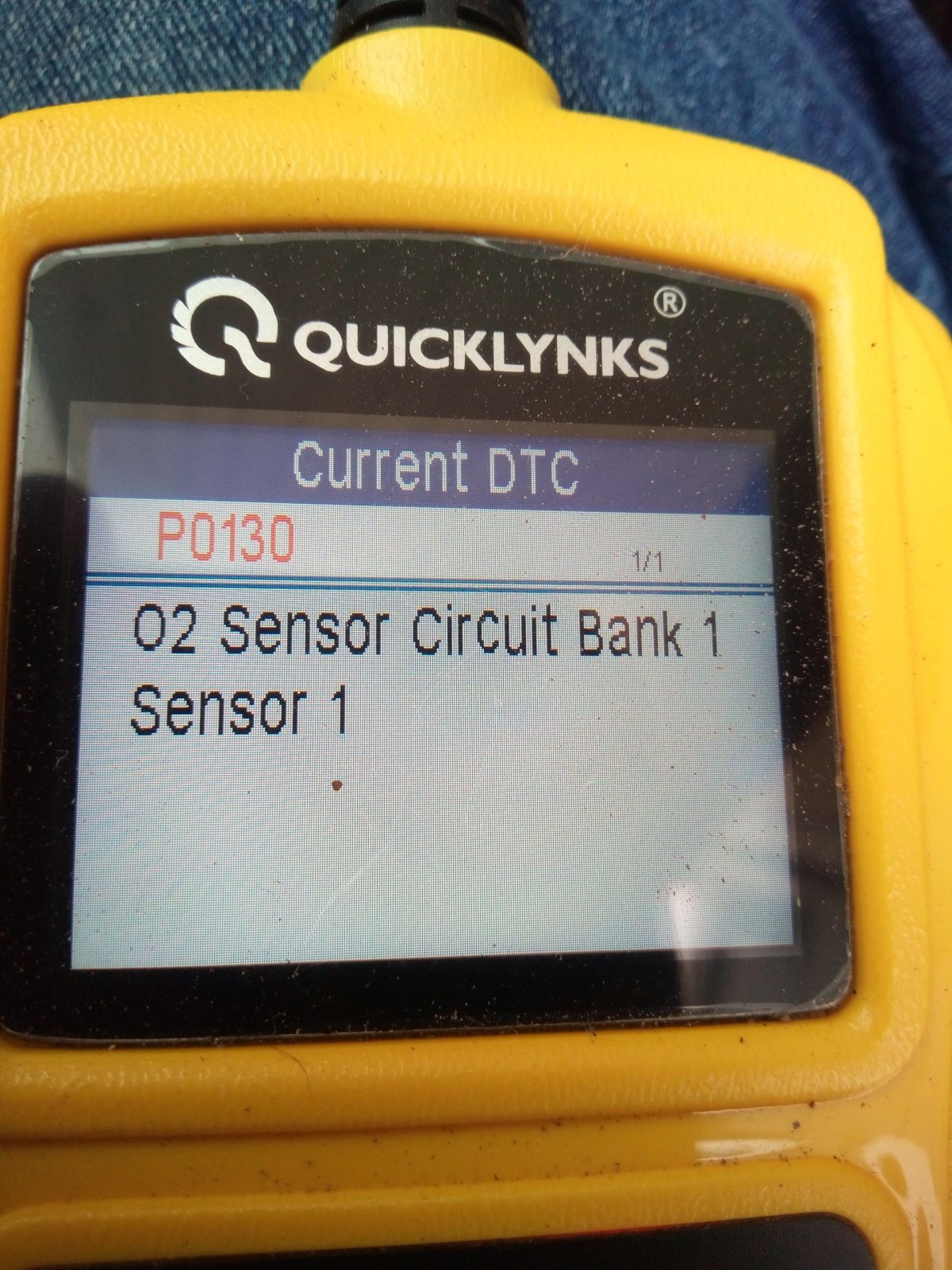

Freelander 1 fault code P0130.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

MathiasL

Member
Posts
15
Seems like the O2 sensor, is it a big job to replace?

Looks like this is for the 2005 1.8, it should not be hugely hard I believe it is located on the exhaust manifold headers and the issue will be that it is rusted in. Good luck! I am sure someone will be able to provide more accurate details with pictures.

Looks like this is for the 2005 1.8, it should not be hugely hard I believe it is located on the exhaust manifold headers and the issue will be that it is rusted in. Good luck! I am sure someone will be able to provide more accurate details with pictures.

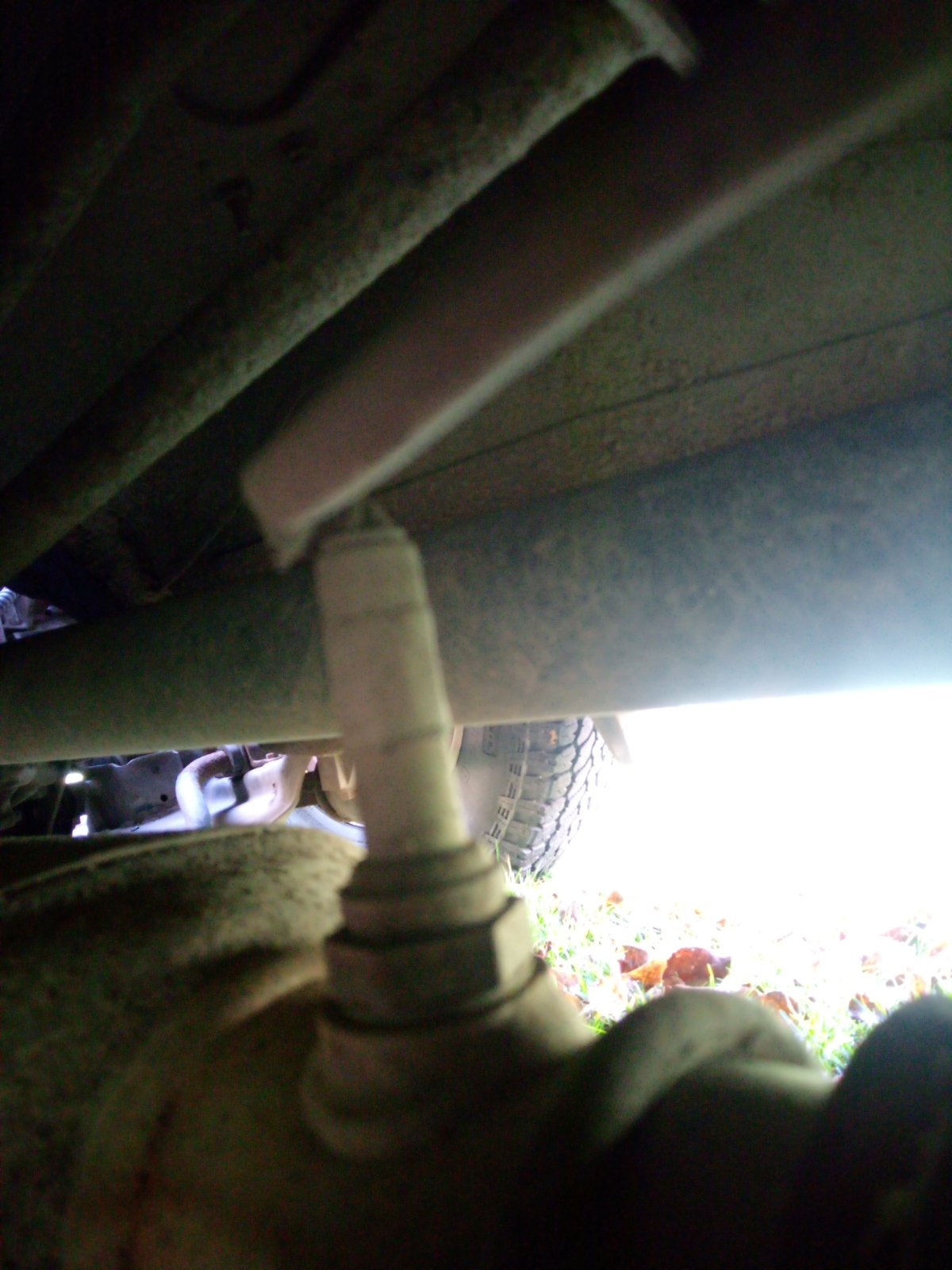

Yes, the 1.8 petrol in the 2005 model Freelander. Apparently, it has two of these (one pre- and one post-cat) and this seems to be the easier one 😄

Thanks!

Yes, the 1.8 petrol in the 2005 model Freelander. Apparently, it has two of these (one pre- and one post-cat) and this seems to be the easier one 😄

Thanks!
Ah there you are then :p I still think Rust is going to be your main gripe, if you have a blowtorch, minding the wires, put it to use, great for rusty bolts and nuts

If someone has done this and can offer some advice (pictures are appreciated), I'll gladly accept. Had the car for a year now and replaced a few parts myself, so I can hold a wrench and like to get stuck in, but any help is always welcome 😊

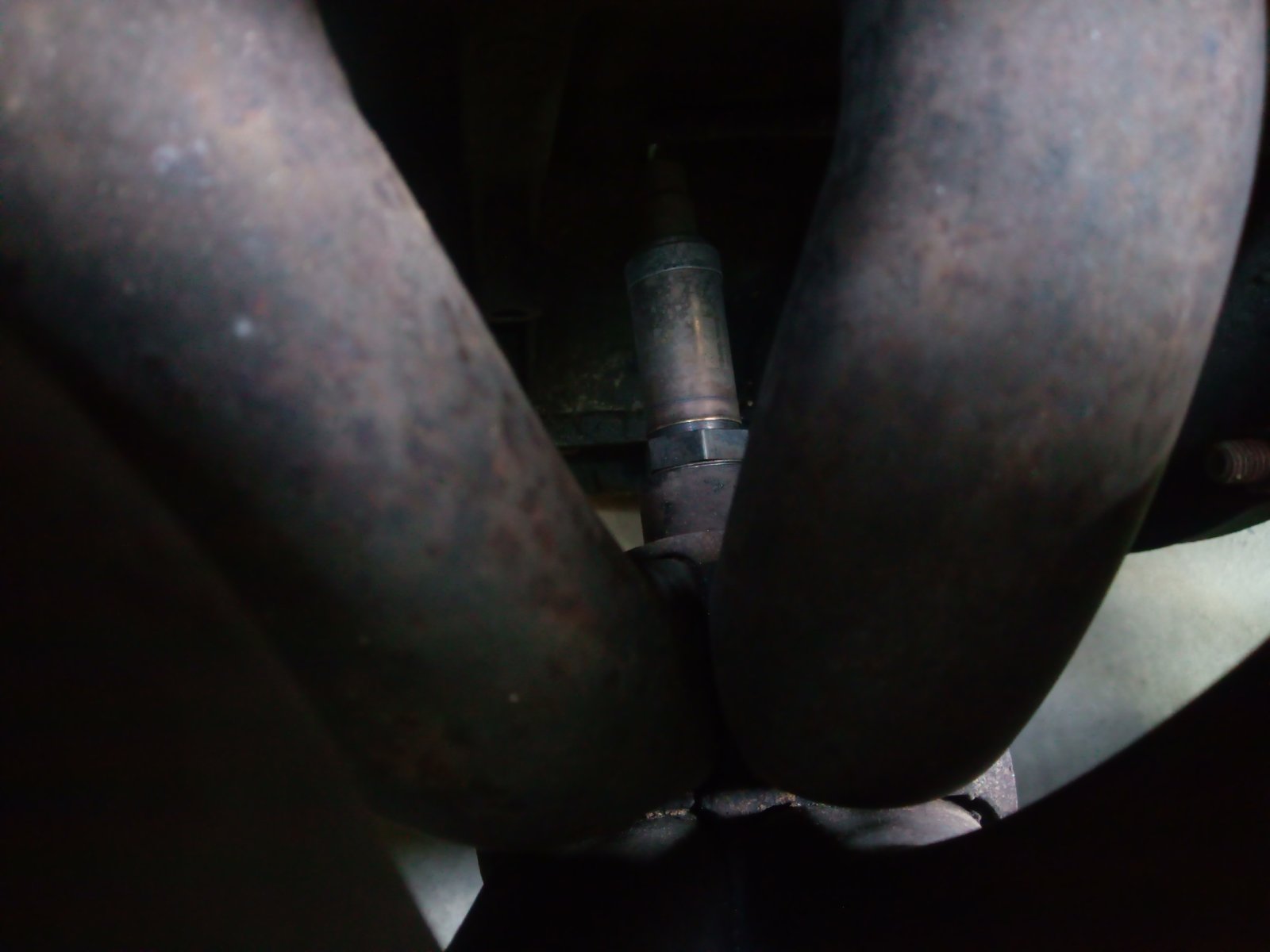

Special O2 sensor socket won't fit in gap. O2 sensor is on the engine side of the exhaust manifold.
if it is duff, best plan is to cut plug off it and thread a ring spanner on that fits tightly to prevent rounding. Then a sharp blow with a hammer to unscrew it. Soak with penetrating oil for a day or so and then carry out removal with a warm manifold. Not too hot or you burn your pinkies !
